JTS Professional Microphones

This is a Special Order Item

XLR - USB adaptor provides 48V phantom power 3.5mm return audio output

Product Code: JP-MAXU

Brand
JTS
RRP $229.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads

MA-XU

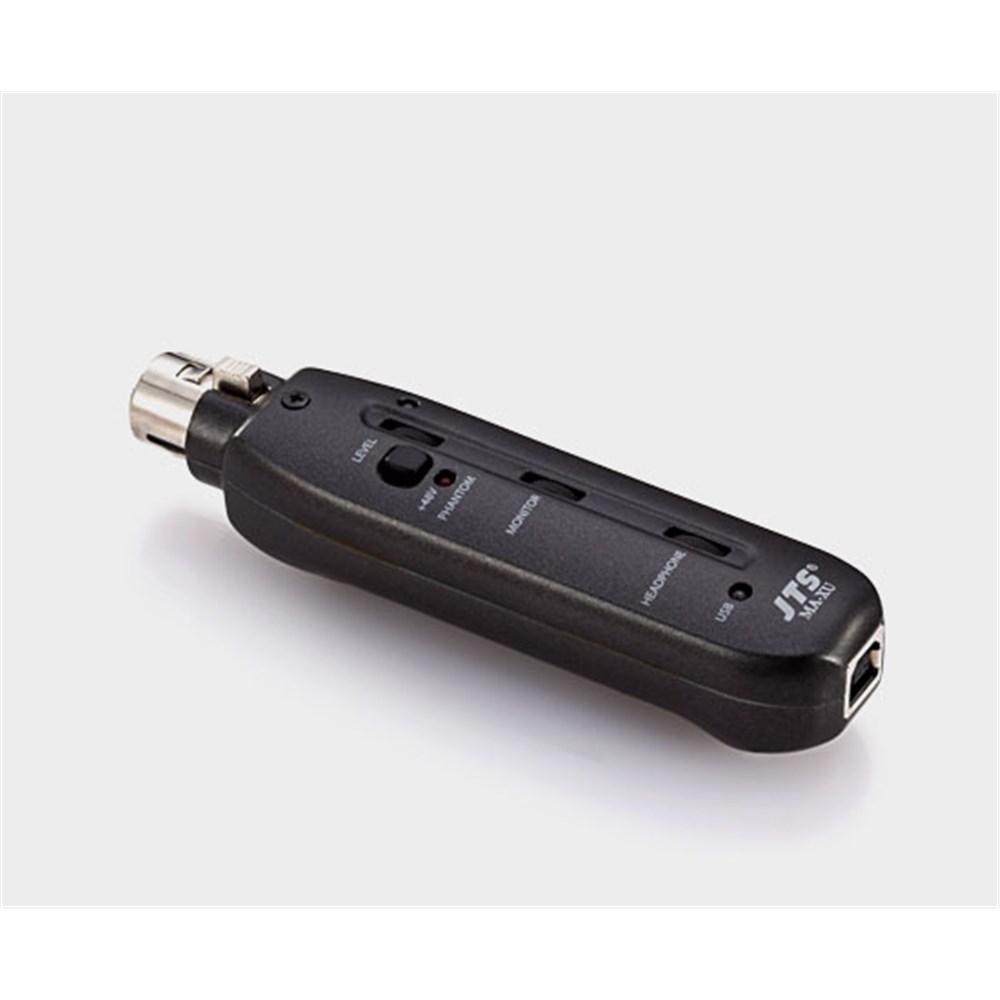

This XLR-to-USB adaptor can use all your dynamic or condenser microphones to digital record. Switchable phantom power is provided. The MA-XU features built in headphone monitoring with easy control of the balance between microphone and playback audio. The advanced technology renders the product latency free.



SPECIFICATIONS

Input

  • XLR

Input Impedance

  • 1.2KΩ

Input Gain Range

  • 35dB

USB connector

  • Digital audio interface

Headphone Jack

  • 3.5mm
  • Output:50mW (16Ω)

Indicator

  • USB Blue
  • Phantom RED
  • Peak Level
  • Green:Signal,Red,Peak

Phantom Power

  • 48V±2V,15mA

Frequency Response

  • 25~20000Hz

Power consumption

  • 2.2W

Dimension (mm)

  • 117*31*28mm

Weight

  • 95g

Product Documents

No documents available
