Speakers

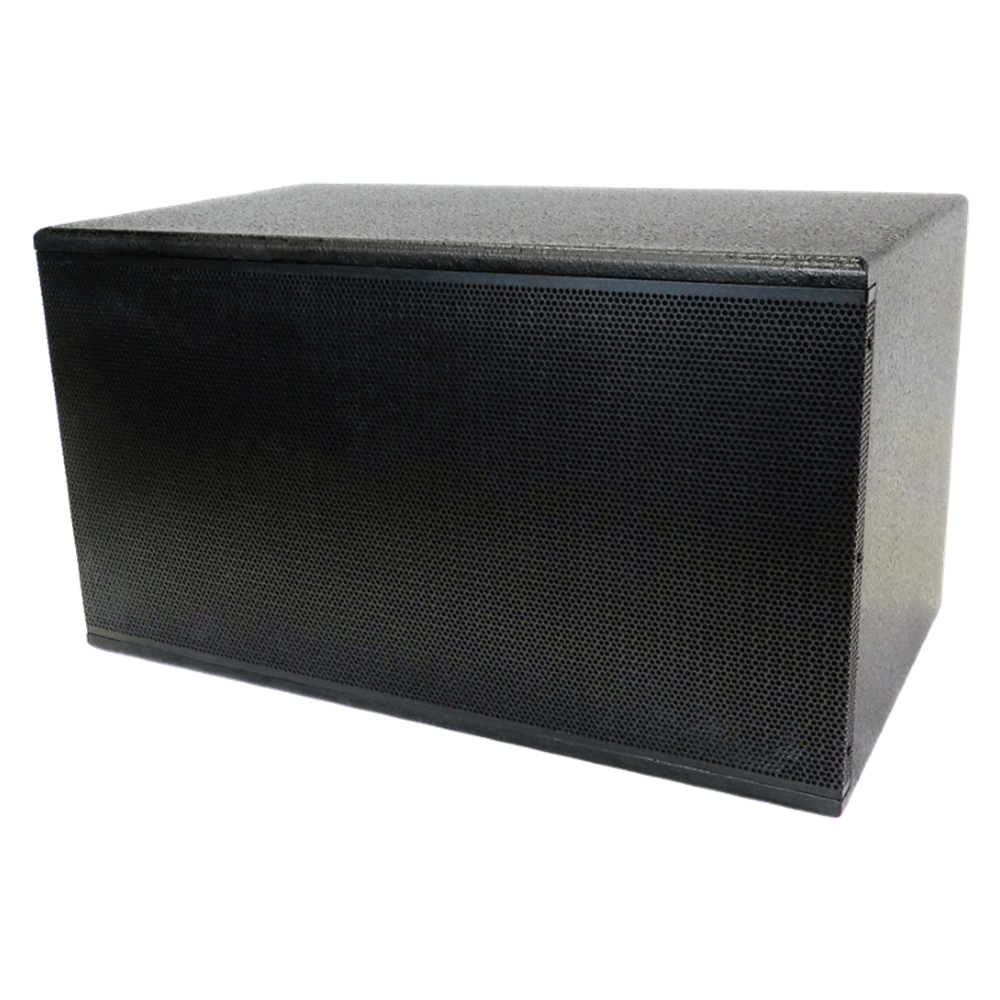

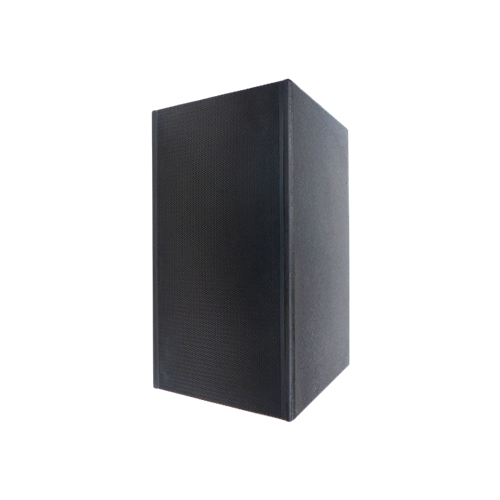

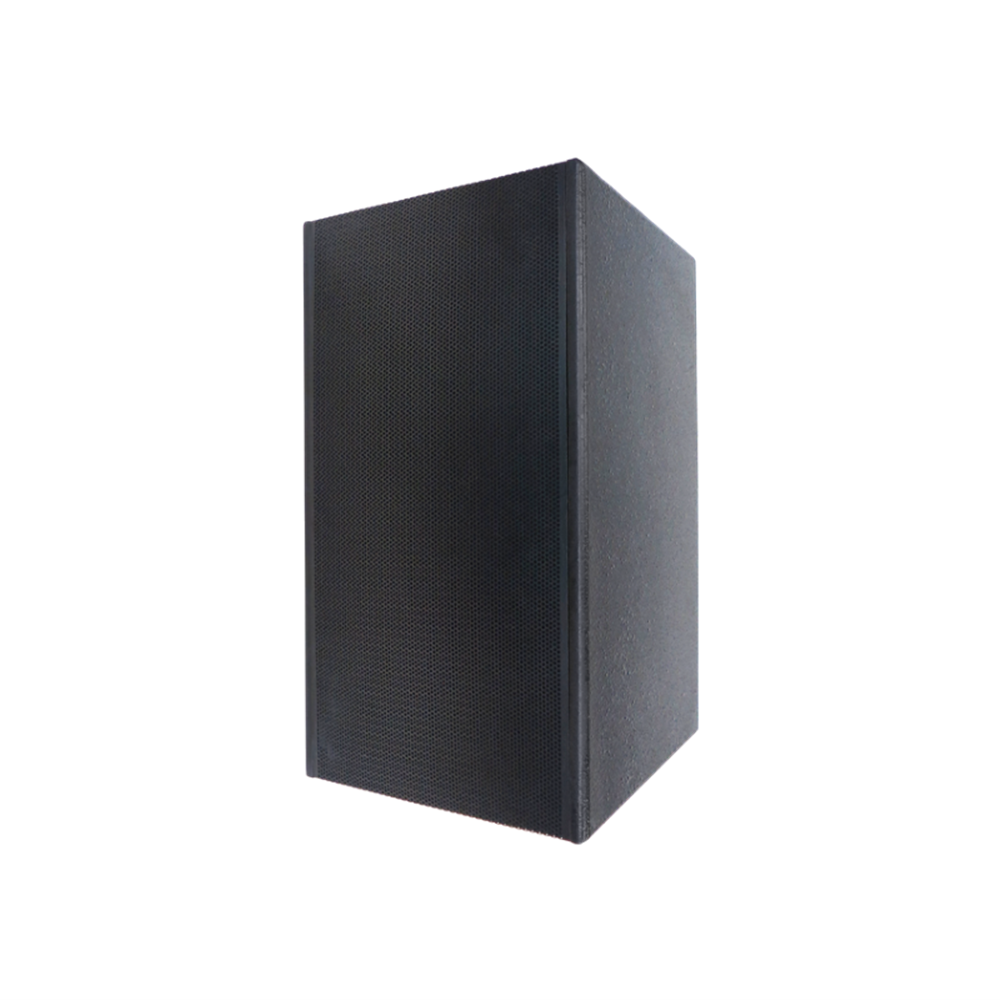

Subwoofer 10 Bandpass Black AM10SUB Australian Monitor

Product Code: AJ-AM10SUB

Brand
Australian Monitor
RRP $1,589.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands Australian Monitor
Size 2 x 10"
Speaker Type Subwoofer
  • Details
  • Downloads

AM10SUB


Dual 10" Subwoofer
300W, Black


The AM10SUB, a dual coil 10 inch bandpass low frequency enclosure. The product is designed to work inclusively with our FLEX and QuickFit speaker series products as well as other 8 or 16 ohm low impedance products.

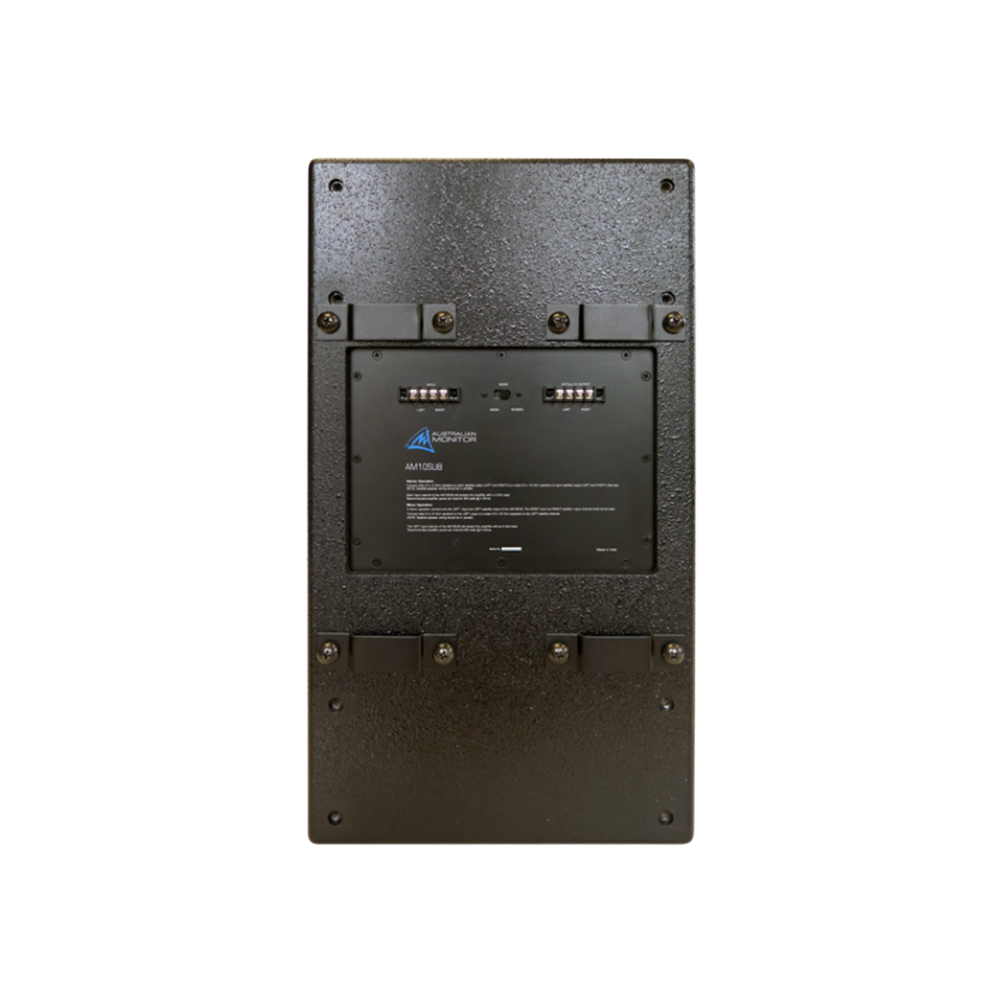

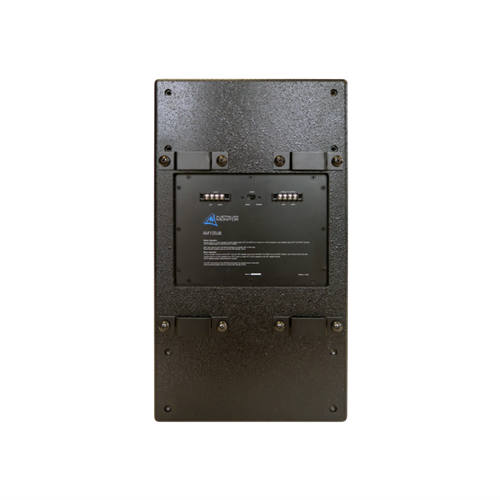

The AM10SUB features an internal crossover and simple wall mount bracket system which allows the cabinet to be wall mounted in horizontal or vertical orientations. Connection of the sub and satellite speakers is simple and cost effective via a single or dual channel low impedance amplifer. Add that all important punch to program material in Retail, Gyms, Cafes and many other commercial audio environments.


  • Bandpass 15mm MDF cabinet
  • 10 inch dual coil speaker drive
  • Internal crossover 150Hz for satellite speakers
  • Mono or Stereo operation

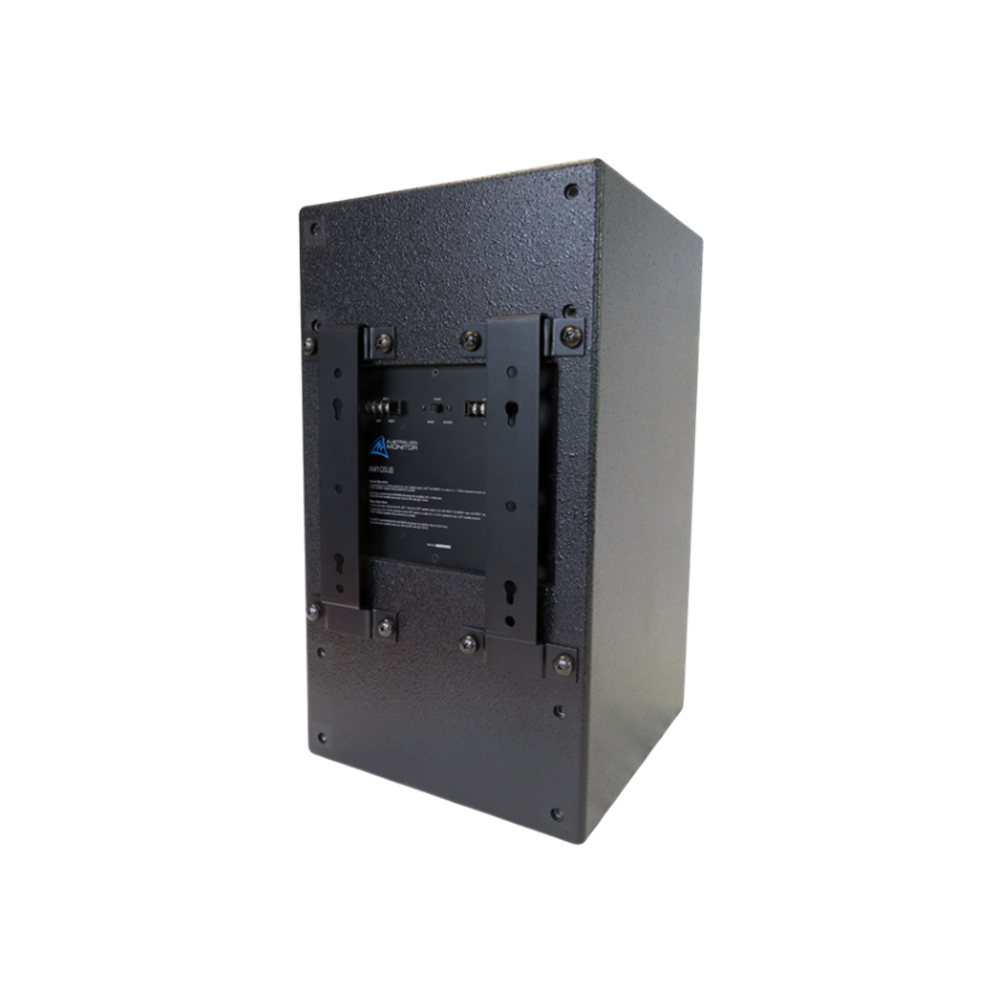

  • Wall mountable in horizontal or vertical orientation
  • 300 watts per voice coil
  • 121dB peak SPL
  • Black

Specifications

  • Form Factor: Subwoofer
  • Max Continuous Power: 300W
  • Tappings: 4 Ohm
  • Max Program Power: 600W
  • IP Rating: No
  • Max Peak Power: 1200W
  • EASE Model: No
  • SPL 1W/1m: 91dB
  • Powered: Passive
  • Max SPL RMS: 116dB
  • Driver Diameter: 10" x 2
  • Max SPL Peak: 121dB
  • Colour: Black
  • Frequency Response (-3dB): 49Hz - 200Hz
  • Warranty: 5 years
  • Dispersion: N/A
  • Product Dimensions: (W x D x H) 580mm x 335mm x 325mm
  • Shipping Dimensions: (W x D x H) 685mm x 513mm x 535mm
  • Net Weight: 19.9 Kg
  • Shipping Weight: 24.2 Kg
  • GTIN EAN: 9323383019874
