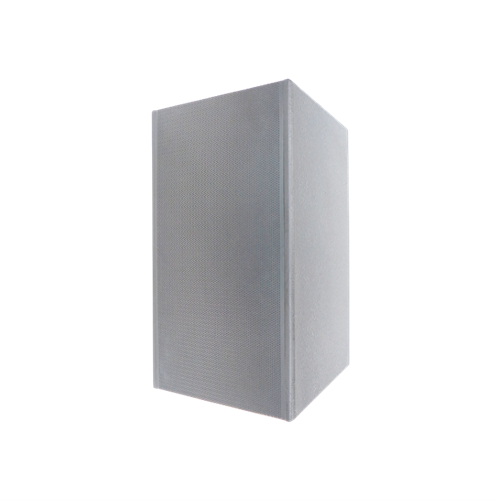

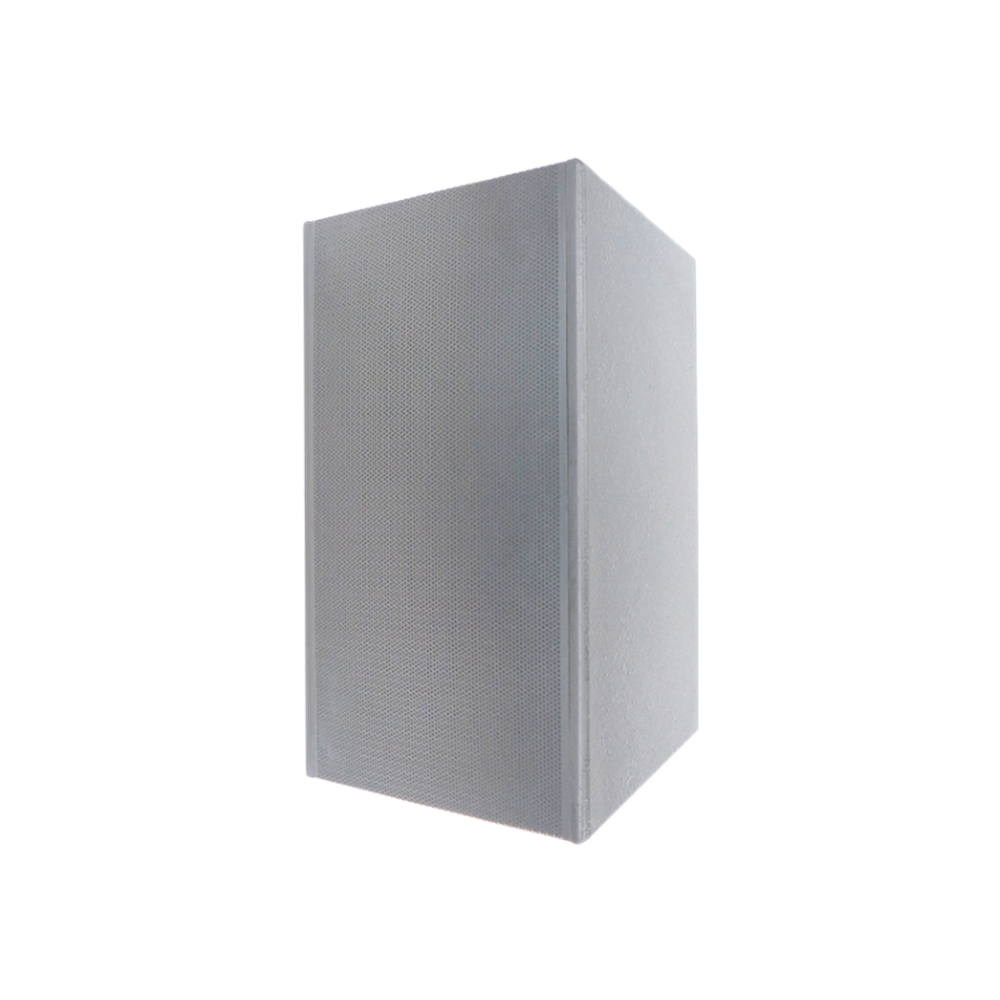

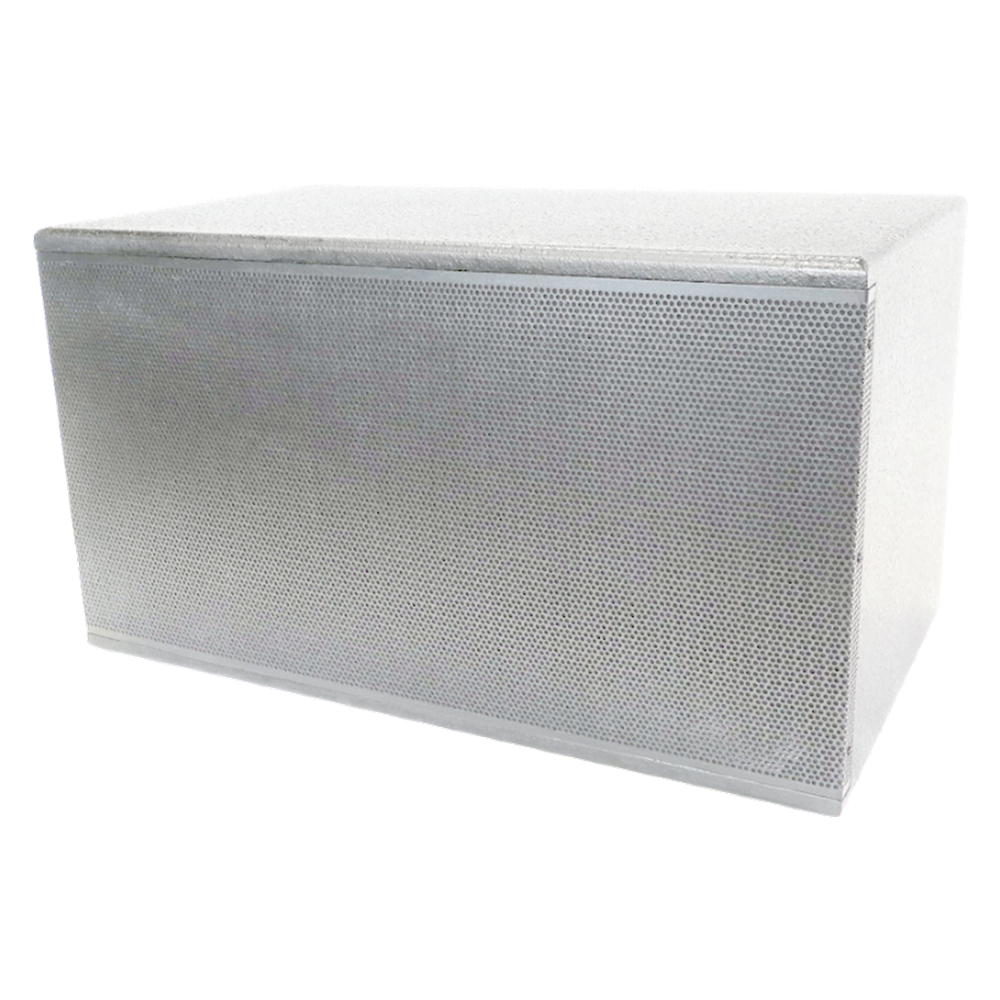

Subwoofer 10in Bandpass White AM10SUW Australian Monitor

Product Code: AJ-AM10SUW

Brand
Australian Monitor
RRP $1,675.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Australian Monitor
Size 2 x 10"
Speaker Type Subwoofer
  • Details
  • Downloads
  • Ordering

AM10SUW

Dual 10" Subwoofer 300W, White

The AM10SUW, a dual coil 10 inch bandpass low frequency enclosure. The product is designed to work inclusively with our FLEX and QuickFit speaker series products as well as other 8 or 16 ohm low impedance products.

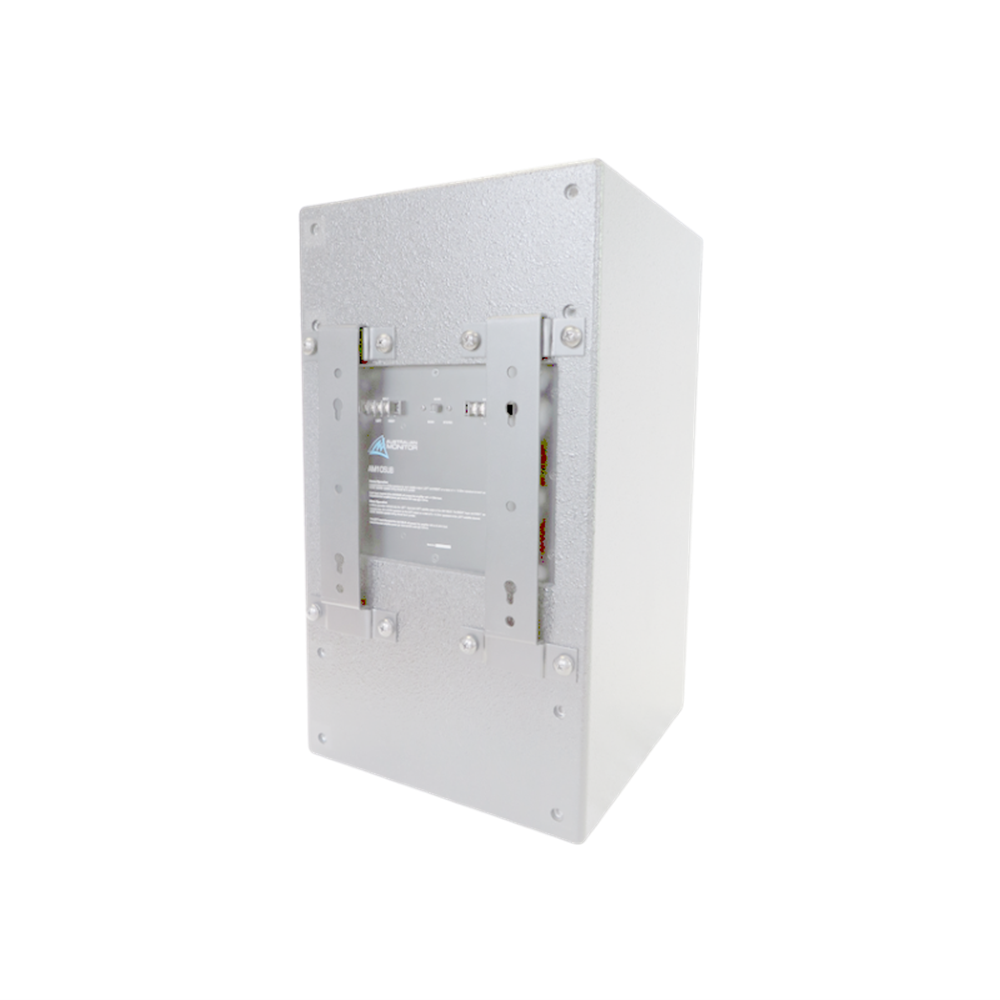

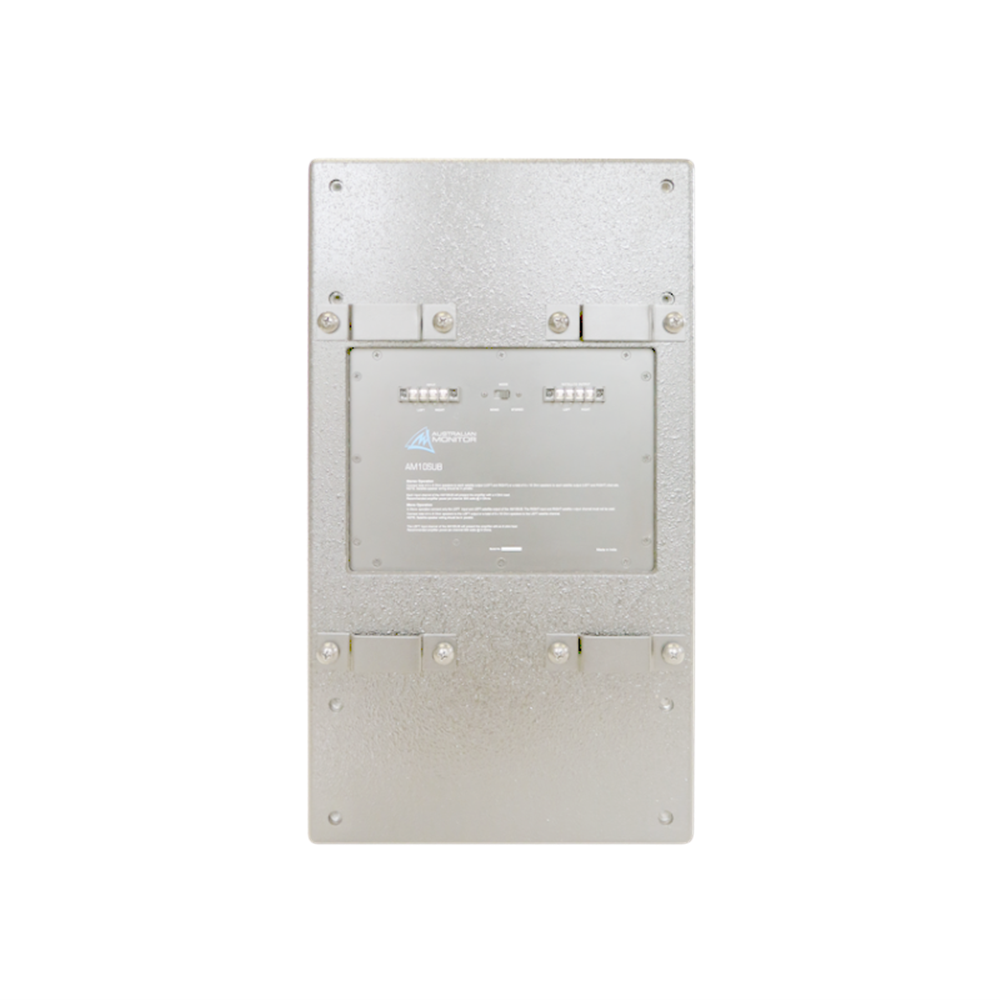

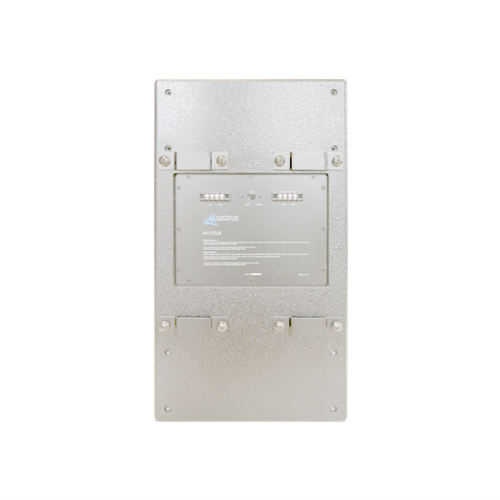

The AM10SUW features an internal crossover and simple wall mount bracket system which allows the cabinet to be wall mounted in horizontal or vertical orientations. Connection of the sub and satellite speakers is simple and cost effective via a single or dual channel low impedance amplifer. Add that all important punch to program material in Retail, Gyms, Cafes and many other commercial audio environments.


  • Bandpass 15mm MDF cabinet
  • 10 inch dual coil speaker drive
  • Internal crossover 150Hz for satellite speakers
  • Mono or Stereo operation
  • Wall mountable in horizontal or vertical orientation
  • 300 watts per voice coil
  • 121dB peak SPL
  • White

Specifications

  • Form Factor: Subwoofer
  • Max Continuous Power: 300W
  • Tappings: 4 Ohm Max
  • Program Power: 600W
  • IP Rating: No
  • Max Peak Power: 1200W
  • EASE Model: No
  • SPL 1W/1m: 91dB
  • Powered: Passive
  • Max SPL RMS: 116dB
  • Driver Diameter: 10" x 2
  • Max SPL Peak: 121dB
  • Colour: White
  • Frequency Response (-3dB): 49Hz - 200Hz
  • Warranty: 5 years
  • Dispersion: N/A
  • Product Dimensions: (W x D x H) 580mm x 335mm x 325mm
  • Shipping Dimensions: (W x D x H) 685mm x 513mm x 535mm
  • Net Weight: 19.9 Kg
  • Shipping Weight: 24.2 Kg
  • GTIN EAN: 9323383019898

Product Documents
