Product Code: SO-40182

Technical Specifications

Brands	Sonance
Series	Professional Series
Size	6.5"
Speaker Type	In-ceiling

Details
Downloads

PS-C63RTLP White in ceiling Low Profile Speaker

Tweeter: 1” (25mm) Cloth dome, pivoting, ferrofluid cooled
Woofer: 6.5" (165mm) Polypropylene cone, Butyl rubber surround
Frequency Range - 3dB: 65Hz - 20kHz
Power Handling RMS: 120W program, 60W pink noise
Sensitivity: 91 dB
Taps: 60W, 30W, 15W, (7.5W 70V)
Termination: Four pin Euroblock with loop output connections
Included Accessories: C-rings, tile rails, cutout template, white grilles
Dimensions: 281mm diameter x 111mm depth • Cut-out diameter: 257mm
Certifications: UL 1480, UL 2043, NFPA90A & NFPA70

6.5" Low Profile In-Ceiling Speaker

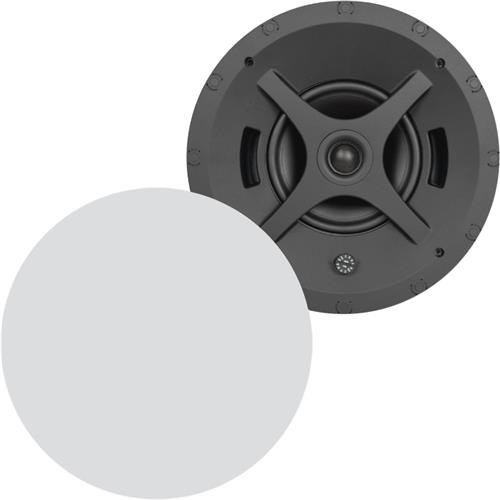

Sonance Professional Series PS-C63RTLP is a 70V/100V/8 Ohm selectable In-Ceiling Speaker that features a shallow 4.37” (111mm) construction for installations in restricted spaces such as beneath HVAC ducting. It also features a one-piece bezel-less grille that is magnetically secured and allows for a one-step painting process to simplify installation and minimize visual distraction.

The optional Square Grille Adapter allows speakers to match the aesthetic of square downlights and HVAC grilles to achieve continual sight lines.

A high-excursion 6.5” polypropylene woofer delivers effortless low bass extension, even at high volumes, while the pivoting chambered 1” soft dome tweeter can be directed to ensure accurate coverage, when speaker positioning is compromised.

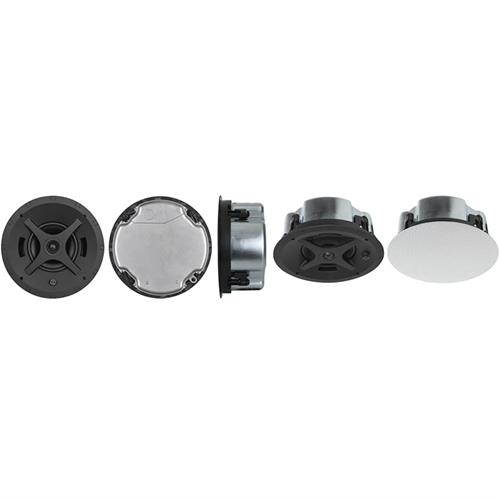

The PS-C63RTLP features a sealed metal enclosure with back and side knock-outs, removable Euroblock connector with loop-through, and seismic attachment. Additionally, the Sonance PS-C63RTLP is certified for UL 1480 and UL 2043.

Frequency Range (-10dB)	49Hz - 25kHz
Frequency Range (-3dB)	65Hz - 20kHz
Power Capacity	120 Watts Continuous Program Power \| 60 Watts Continuous Pink Noise
Nominal Sensitivity	91dB
Nominal Coverage Angle	120 degrees conical coverage
Directivity Factor (Q)	6.5
Directivity (DI)	7.9dB
Rated Maximum SPL	108dB @ 1 meter (3.3 feet) average, 116dB peak
Rated Impedance	8 Ohms nominal, 6 Ohms minimum
Transformer Taps	60W, 30W, 15W (7.5W 70V)
Crossover Point	2750Hz

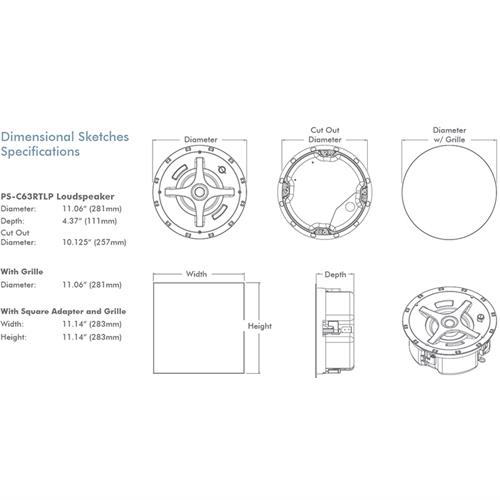

Overall Dimension	11.06” Diameter x 4.37” Depth (281mm x 111mm)
Cut Out Dimension	10.125” Diameter (257mm)
Net Weight	10.00lbs (4.53kg) each (Preliminary spec - may vary)
Shipping Weight	38.00lbs (17.23kg) pair (Preliminary spec - may vary)
Unit of Measure	Pair (Single units upon request)
Grille	Supplied with bezel-less white grille. Optional black grille, or square adapter with black or white grille
LF Driver	6.5” (165mm) Polypropylene Cone, Butyl Rubber Surroun
HF Driver	1” (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
Input Connector	Four pin Euroblock with loop output connections
Knockout	One back-mounted, one side-mounted .75" (19mm)
Safety Agency	UL 1480, UL 2043, NFPA 90A, NFPA 70
Maximum Ceiling Thickness	1.732” (44mm)
Suspension Points	One, on top surface
