  • PS-C83RT 8in White in-ceiling Professional Series Sonance

PS-C83RT 8in White in-ceiling Professional Series Sonance

Product Code: SO-40132

Brand
Sonance
RRP $1,750.00


Unit of Measure
PAIR



5 Year
Technical Specifications
Brands Sonance
Series Professional Series
Size 8"
Speaker Type In-ceiling
  • Details
  • Downloads

Professional Series 8" In-Ceiling Speaker



8" In-Ceiling

Sonance Professional Series PS-C83RT is a 70V/100V/8 Ohm selectable In-Ceiling Speaker that features a one-piece bezel-less grille that is magnetically secured and allows for a one-step painting process to simplify installation and minimize visual distraction.

The optional Square Grille Adapter allows speakers to match the aesthetic of square downlights and HVAC grilles to achieve continual sight lines.

A high-excursion 8” polypropylene woofer delivers effortless low bass extension, even at high volumes, negating the need for additional woofers, while the pivoting chambered 1” soft dome tweeter can be directed to ensure accurate coverage, when speaker positioning is compromised.

A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.

The PS-C83RT features a sealed metal enclosure, integrated cable and conduit clamping, removable Euroblock connector with loop-through, swing-open connecter cover and seismic attachment.

Additionally, the Sonance PS-C83RT is certified for UL 1480 and UL 2043.



Specifications

  • Frequency Range (-10dB) - 41Hz – 25kHz
  • Frequency Range (-3dB) - 55Hz – 20kHz
  • Power Capacity - 160 Watts Continuous Program Power | 80 Watts Continuous Pink Noise
  • Nominal Sensitivity - 91dB
  • Nominal Coverage Angle - 120 degrees conical coverage
  • Directivity Factor (Q) - 7.6
  • Directivity (DI) - 8.1dB
  • Rated Maximum SPL - 110dB @ 1 meter (3.3 feet) average, 116dB peak
  • Rated Impedance - 8 Ohms nominal, 6 Ohms minimum
  • Transformer Taps - 60W, 30W, 15W (7.5W 70V)
  • Crossover Point - 2750Hz

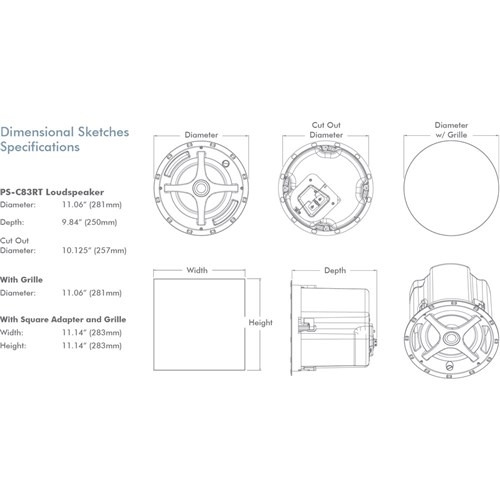

  • Overall Dimension - 11.06” Diameter x 9.84” Depth (281mm x 250mm)
  • Cut Out Dimension - 10.125” (257mm)
  • Net Weight - 10 lbs (4.53kg) each
  • Shipping Weight - 25 lbs (11.34kg) pair
  • Unit of Measure - Pair (Single available upon request)
  • Grille - Supplied with bezel-less white grille. Optional black grille, or square adapter with black or white grille
  • LF Driver - 8” (203mm) Polypropylene Cone, Butyl Rubber Surround
  • HF Driver - 1” (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
  • Input Connector - Four pin Euroblock with loop output connections
  • Knockout - One, side mounted .75”
  • Safety Agency - UL 1480, UL 2043, NFPA 90A, NFPA 70
  • Maximum Ceiling Thickness - 1.732” (44mm)
  • Suspension Points - One, on top surface
