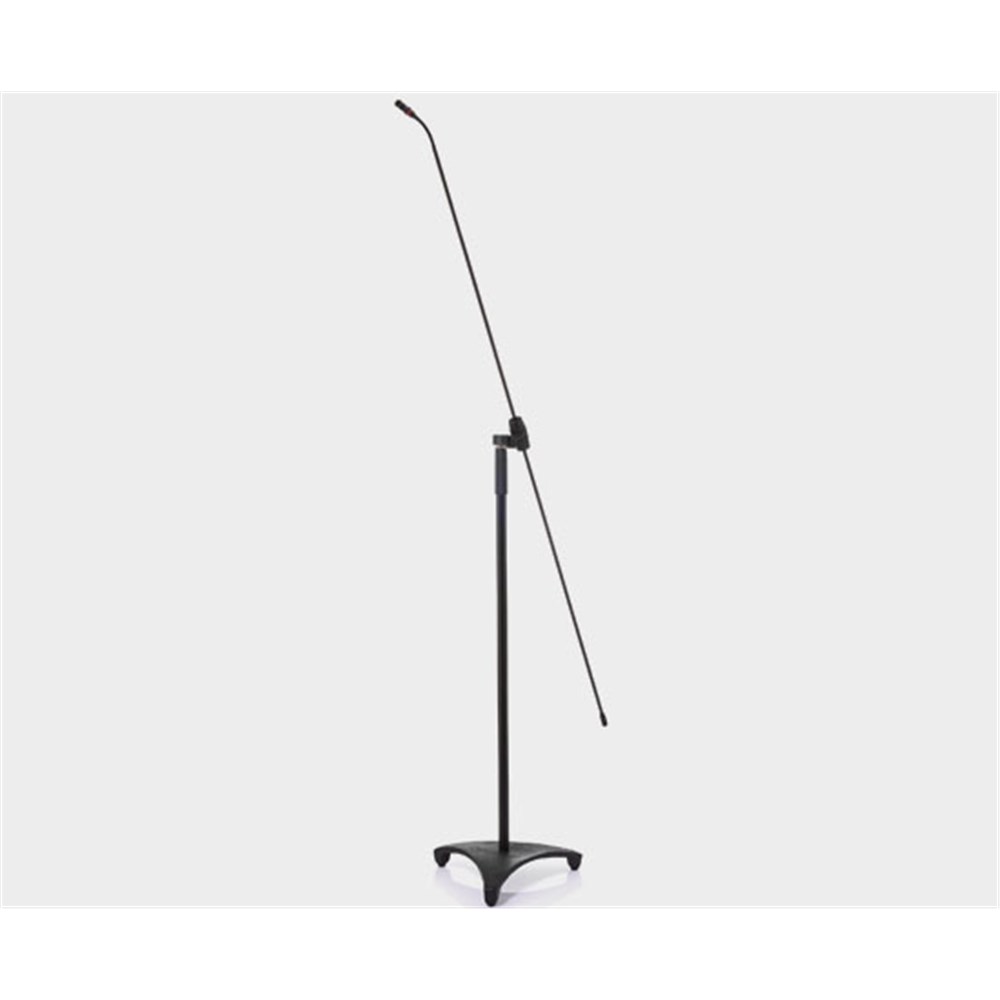

FGM-170 Carbon

This product has the same mics as GML series with omni-directional (GML-O), cardioid (GML-C) and supercardioid (GML-S) capsule module included. The very light carbon boom makes remote miking an easy job. A cable with mini XLR and XLR on each end is supplied. -10 dB pad and Low cut functions are provided.

Application:

• Choirs
• Presentation
• Also as normal mic stand

FGM-62 Carbon : With mic stand height 62 cm, the rest is identical to FGM-170 Carbon.

SPECIFICATIONS

Type

• Back Electret Condenser

Frequency Response

• 50~18,000 Hz

Polar Pattern

• Cardioid, Supercardioid, Omni-directional

Sensitivity (at 1,000Hz)

• -56±3dB(1.58mV) 0dB=1V/μbar

Impedance

• 220Ω

Max. SPL for 1% T.H.D.

• 125 dB

Connector

• 3P mini XLR (M)

Cable Connector

• Input: 3P mini-XLR (F)
• Output: 3P XLR (Power Module)

Power Supply

• 9-52 VDC phantom power (LED standard Operation voltage 48V)

Cable Length

• 8m
