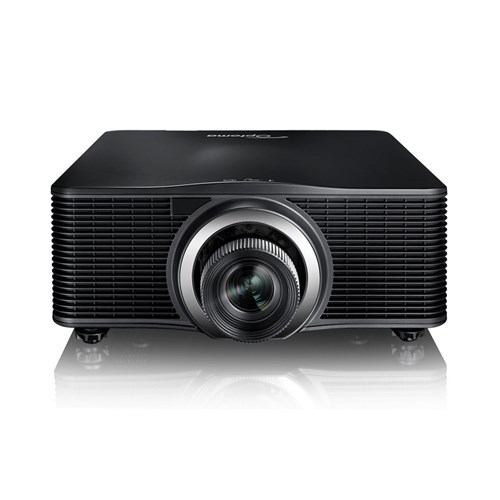

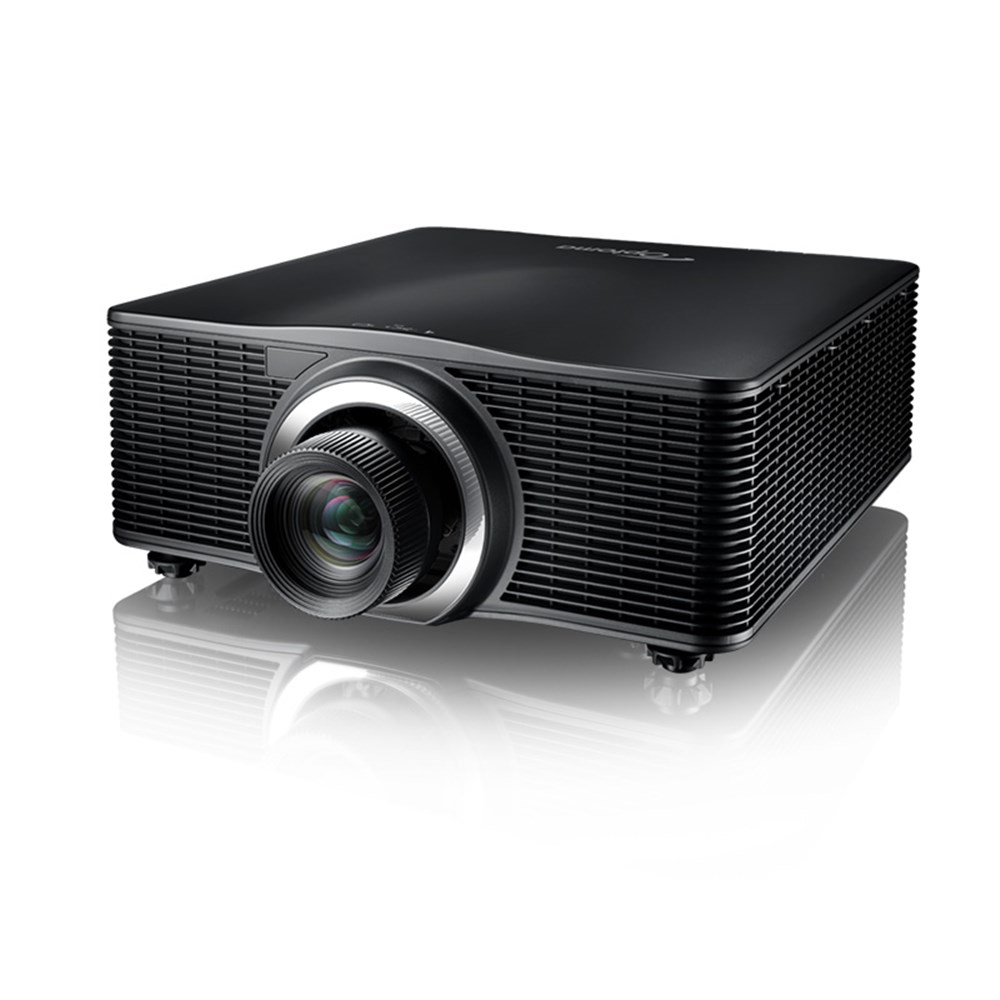

ZU750

• Bright 7,500 ANSI lumens with Optoma DuraCore Laser Technology
• IP5X certified optical system for stable brightness output & 20,000 hours maintenance free
• Support 360-degree & portrait mode & 24/7 operations
• Comprehensive lens options covering TR from 0.36 – 5.5 & able to support up to 500” except UST lens
• Support 4-corner adjustment & PIP/PBP
• Built-in blending/warping
• Full HD 3D supported
• Dimmable Brightness (down to 30%)

ZU750 features Optoma’s DuraCore technology with a 20,000 hour lamp-less laser light source enclosed in an IP5X certified optical engine to ensure reliability and minimal maintenance during its lifetime resulting in low total cost of ownership. Designed to suit different installation environments, the ZU750 includes 360-degree & portrait projection, 24/7 operation capabilities and 6 optional lenses ranging from TR 0.36~5.5.

DuraCore Industry leading lifetime is achieved using Optoma’s new DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design, and light source lifetime at 20,000 hours.		Airtight optical engine Precision engineered with an IP5X Certified system, the ZU750 has an airtight engine that resists dust particles and ensures a long lasting, reliable and practically no maintenance light source of up to 20,000 hours. The ZU750 laser light source is free of mercury and environmentally friendly compared with traditional lamp-based projectors.

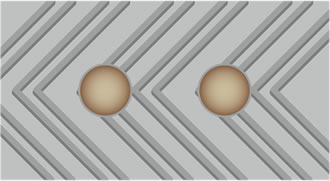

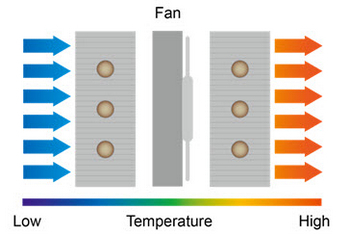

Sandwich structure A complete reconfiguration of the heat pipes, fan and thermal fins enables an additional 10% total system heat dissipation.		V-shape structure on thermal fins Precision etched thermal grooves on each individual fin take 10% more heat away from the system and results in 2% increase in brightness.
Quick start-up and shutdown The ZU750 features quick start-up and shutdown and reaches full brightness quickly. To maximize energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.		Total cost of ownership For demanding applications the total cost of ownership of a projector is not in the purchase cost, but in expensive maintenance and service. ProScene projectors require very little maintenance; have no user serviceable parts inside and no filters that require periodic replacement. The result is low cost, predictable service cycles, enabling planned down time to be minimized.
Ultimate Colour Performance
Image quality Where detail really matters, the full WUXGA (1920 x 1200) resolution offers 15% more pixels than 1080p. This enables unscaled Full HD video and extra detail. Optoma laser projectors have adopted DLP® micro-mirror technology which provides highly efficient bright images with high contrast, maintaining precise color accuracy and natural real-world color reproduction.		DLP® technology DLP® technology from Texas Instruments® is widely recognized and acclaimed for its unmatched reliability and long lasting image performance. When combined with high brightness and native contrast ratios, it becomes the obvious choice for demanding applications. Independent testing has proven DLP® to be the most reliable of projector technologies. Whilst other technologies may show image quality decline after only a few thousand hours, DLP® technology can remain unchanged over hundreds of thousands of hours. Images remain accurate, and colors suffer virtually no degradation over time.

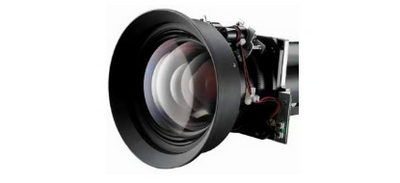

Precision optics High quality optical elements maintain optimum sharpness and focus uniformity over the entire image. Uncompromising optical quality delivers extremely low color flare and chromatic aberration resulting in a crystal clear, high contrast image.
Installation Friendly & Flexibility
360° and portrait projection capability Images can be projected over a full 360° range along the vertical axis, including reproduction on a ceiling or floor. This projector can also be placed in portrait mode for applications such as digital signage or for tall thin projection areas.		24/7 operation All ProScene projectors are designed for continuous 24/7 operation. Only industry proven components are used to ensure superior reliability.

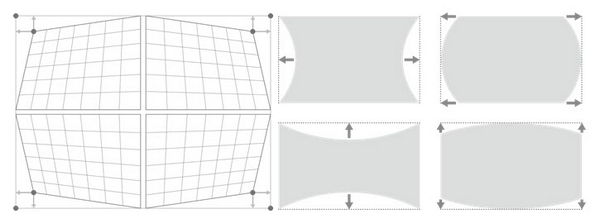

Built-in Warping & Edge Blending User friendly PC interphase for multiple unit warping & edge blending adjustments. Massive images can be achieved within time for a cup of coffee without the need to bundle external image processing boxes, lowering the budget for complex projects. Carefully calibrated FW and gamma adjustments will provide smooth seamless blends.		Warping 4-corner adjustment, Pincushion adjustments, Horizontal/Vertical keystone adjustments to fit all scenario needs.
Color matching This projector has a color matching system, which combined with accurate measurements can create seamless blends every time.
Ultimate Control

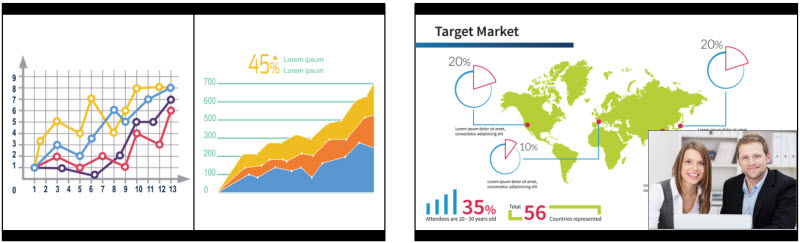

Picture by picture / picture-in-picture The ZU750 supports picture-by-picture and picture-in-picture. Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.		Versatile System Integration Control Protocols Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols are fully supported, allowing nearly all aspects of the ZU750 to be controlled across a network, keeping you in control, wherever you are.
Advanced Connectivity

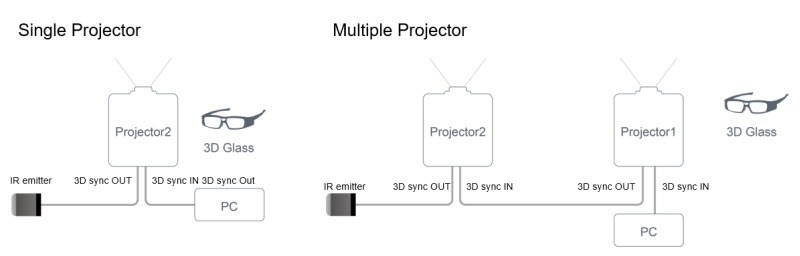

HDBaseT Uncompromised, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.		3D Sync In & Out Flexibility for projects with complex 3D set up to ensure the projectors and the 3D shutter glasses are in sync.
Advance Features

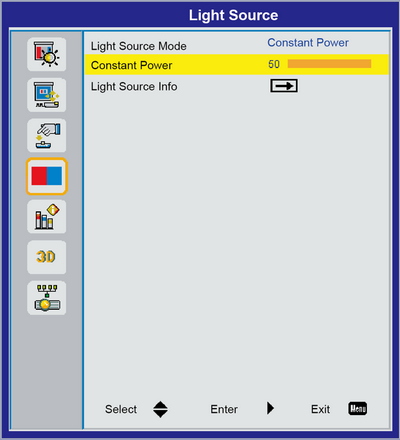

Constant Power Mode There are 100 adjustable steps to control the laser power from 30%~100%. It means the brightness can dim to 30% of full brightness if the application requires.
Extreme Black In situations where only absolute darkness is required, the ZU750 can provide a total blackout that functions like mechanical shutter.	Constant Intensity Mode This mode is used when there is a need to boost brightness.	Eco 50% of original brightness.

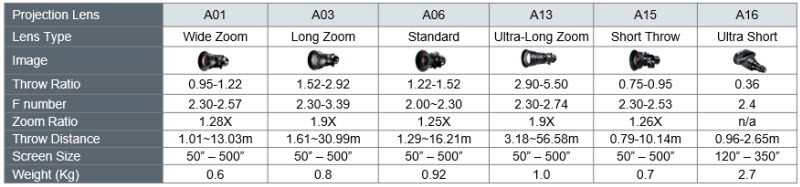

Lens options


Specifications

• Display Technology : DLP
• Native Resolution : WUXGA 1920 x 1200
• Brightness : 8,000 center lumens(7,500 ANSI)
• Contrast : 2,000,000:1 ExtremeBlack enabled (2000:1 full on/off)
• Light Source : Laser
• Light Source Life Bright : 20,000 hours
• Lens Options : A01-0.95-1.22, A03-1.52-2.92, A06-1.22-1.53, A13- 2.90-5.50, A15-0.75-0.95, A16-0.36
• Throw Ratio : 0.36 ~ 5.50 (lens dependent)
• Zoom Type : Motorized
• Lens Shift : Dependent on lens | powered

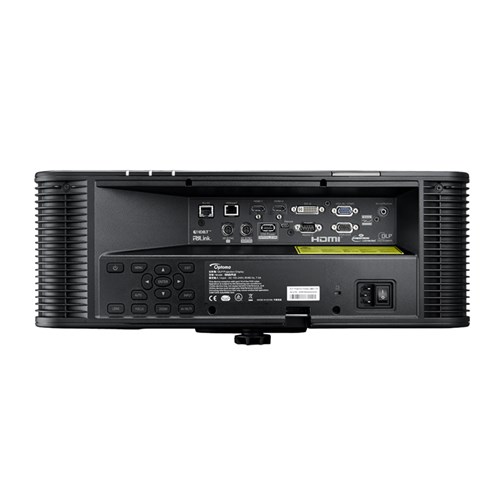

• I/O Connectors : HDMI x2, VGA, DVI-D, HDBaseT, VGA out, mini USB for service RS232C Wired Remote in, 3D Sync in, 3D Sync out , RJ45, USB Power
• Keystone Correction : ±20° Vertical, ±20° Horizontal
• Weight (Kg) : 17.2
• Dimensions (W x D x H) (mm) : 484 x 509 x 185 (elevator foot excluded)
• Aspect Ratio : 16:10 Native, 16:9 and 4:3 Compatible
• Projection Screen Size : 50" ~ 500" (lens dependent)
• Projection Distance : Dependent on lens
• Uniformity : 90%
• Computer Compatibility : WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
• Video Compatibility : PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
• 3D Support : Full 3D – The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
• 3D compatibilty : Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
• Horizontal Scan Rate : 15 – 91kHz
• Vertical Scan Rate : 24 – 85Hz (120Hz for 3D)
• Displayable Colors : 1073.4 million colors (10 bit)
• Noise Level : 34 dB (Eco mode)
• Power Supply : 100~240V, 50~60Hz, auto-switching
• Power Consumption : 600W +/- 15% @110V in Normal Mode | 425W +/- 15% @110V in Eco Mode | 575W +/- 15% @220V in Normal Mode | 405W +/- 15% @220V in Eco Mode
• Lamp Type : Laser Phosphor
• Operating Temperature : 0 ~ 2500 ft, 5 ~ 40°C, 2500 ~ 5000 ft, 5 ~ 35°C, 5000 ~ 10000 ft, 5 ~ 30°C
• 360-operation : Yes
• Portrait Mode : Yes
• Conformance : CE, TUV-GS, CB
• RoHS : RoHS and WEEE
