Australian Monitor

Zone Controller 4 Zone ZONEMIX4 Australian Monitor

Product Code: AJ-ZONEMIX4

Brand
Australian Monitor
RRP $2,265.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Australian Monitor
Product type Mixer Controller
Zones 4 Zone
  • Details
  • Downloads
  • Ordering

ZONEMIX4

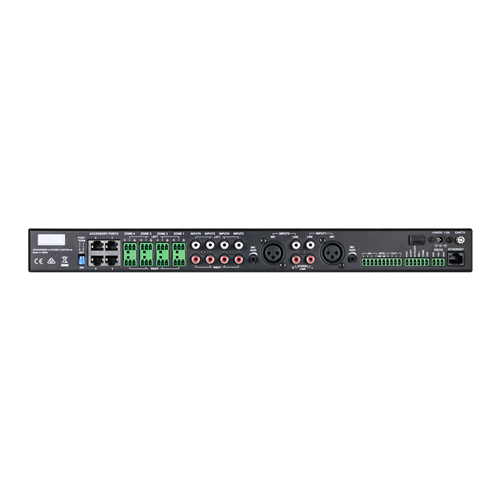

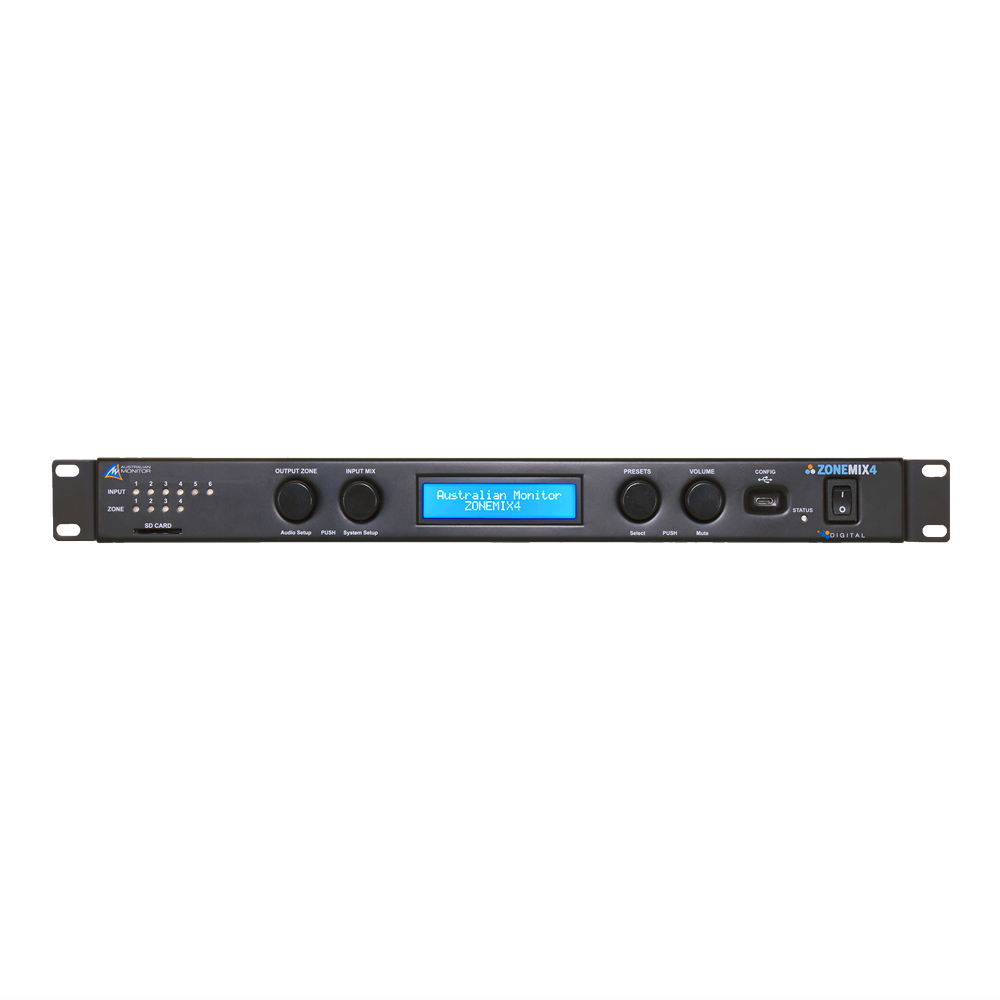

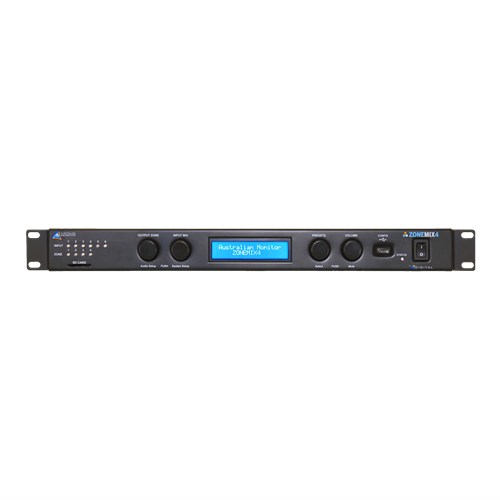

The ZONEMIX4 provides a 4 zone mixing and paging solution featuring USB, Ethernet and RS232 connectivity.  Optional wall panel accessories include 3 controller models, a Bluetooth receiver, and a mic/line level input.  A PC application allows for setup and control of the ZONEMIX and customisation of the wall panels and paging stations.



FEATURES
  • Input/Output Mixing:- 2 mic/line and 4 line inputs to 4 zone outputs
  • miniDSP
  • Builtin EVAC, Intruder, Bell and Chime tones
  • Tone can be cusotmised via SD Card (not supplied)
  • Custom messages can be stored on the SD Card and triggered via the scheduler, contact closure, ZMPS paging station or wall panels
  • Multi level priority
  • Supports one local audio input per output zone
  • Built in Task Management and Scheduling
  • 4 contact closure inputs and outputs
SPECIFICATIONS

INPUTS/OUTPUTS
Zone Outputs 4
Output Mode Stereo/Mono
Mic/Line Inputs 2
Line Inputs 4
Local Audio Inputs 4
Paging Stations Up to 16
Wall Panels Up to 16
CONTROL
User Controls Front Panel, Wall Panels
Communication Interface USB-C, Ethernet, RS232
General Purpose I/O 4 in 4 out
Tone Generator 5 Tones
SD Card WAV: PCM, 16 bit, up to 48kHz sample rate
AUDIO PERFORMANCE
Frequency Response 20Hz -20kHz
THD <0.01%
SNR >100dBA
MECHANICAL
Dimensions (W x D x H) 484 x 160 x 44.5mm
Weight 2.4 kg
Unit Height 1RU
Input Voltage 24VDC
Power Consumption 8W
