Optoma

  • Brands
  • Optoma
  • ZH406ST WUXGA 5000 Lumens 300000:1 Contrast Short Throw Laser

ZH406ST WUXGA 5000 Lumens 300000:1 Contrast Short Throw Laser

Product Code: OP-ZH406ST

Brand
Optoma
RRP: POA


Unit of Measure
EACH


3 Year
Technical Specifications
Brands Optoma
Native Resolution 1080p
Projector Category Multimedia
Projector Category Short Throw
Lumens 4200lm
  • Details
  • Downloads
  • Ordering

1080p Short Throw Laser Projector

ZH406ST


  • 4,200 ANSI lumens with 300,000:1 contrast ratio
  • 4K UHD input with HDMI 2.0 (HDCP 2.2)
  • 0.5:1 short throw ratio
  • HDR10 and HLG compatible
  • DuraCore maintenance-free laser light source up to 30,000 hours
  • Four corner correction
  • 24/7, 360° and portrait mode operation

Short throw, compact and virtually maintenance free

Project large images with the short throw, 4,200 lumens and 1080p Optoma ZH406ST. The short 0.5:1 throw ratio produces large 100-inch images from only several feet away, ideal for space constrained installations.

Compact size, low weight and quiet operation make it perfect for classrooms, meeting rooms, board rooms and digital signage. Four corner correction, 360° and portrait mode operation enable flexible installations.

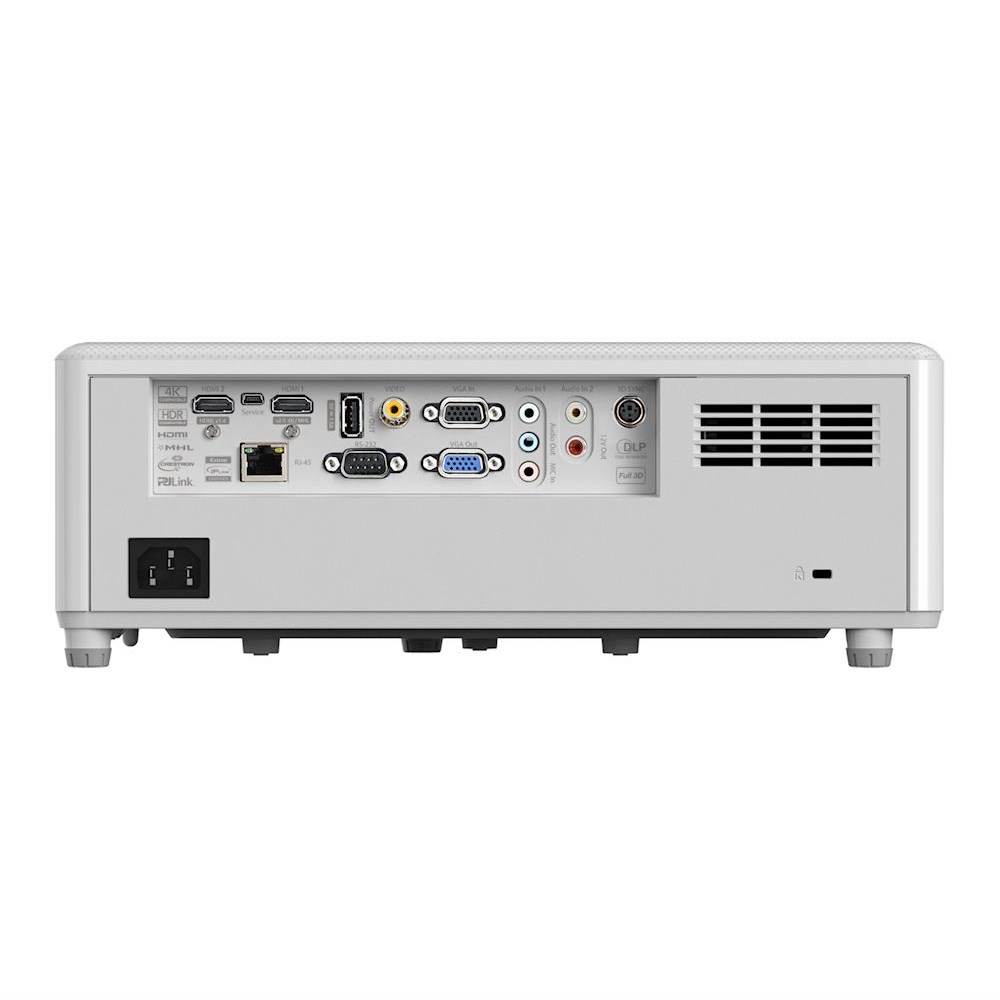

HDMI and VGA inputs provide connectivity to high-quality 4K HDR digital video or legacy analog video sources while LAN and RS-232 enable control via Crestron, Extron, AMX or Telnet. Stereo speakers with 10W per channel provide rich audio for all-in-one applications.

TECHNICAL SPECIFICATIONS
360 OperationYes
Aspect Ratio16:9 (native), 4:3, LBX, auto compatible
Audio2 x 10W speakers (stereo)
Brightness4,200 ANSI lumens
Connections1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x VGA, 1x composite, 2x audio in (3.5mm), 1x mic in, 1x USB-A (power, 5V, 1.5A), 1x VGA out, 1x audio out, 1x 12v trigger, 1x 3D sync, 1x mini USB
Contrast Ratio300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
Display TechnologyTexas Instruments™ 0.65” 1080p DMD
Displayable Colors1.07 billion
Keystone Correction±30° vertical and horizontal, auto keystone
Light Source TypeDuraCore laser
Light Source LifeUp to 30,000 hrs (Eco), 20,000 hrs (Normal)
Maximum ResolutionHDMI 2.0: 4K UHD (3840 x 2160 @ 60Hz), 4K (4096 x 2160, 60Hz), HDMI 1.4: WUXGA (1920 x 1200)
Native Resolution1080p (1920 x 1080)
Noise Level32dB
Offset115%
Operating Temperature41–104°F (5–40°C), 85% max humidity
Power ConsumptionBright: 277W max, Eco: 212W max, 143W typical
Power SupplyAC input 110– 240V, 50–60 Hz
Projection Distance3′ – 11′
Projection Lensf=7.42mm
Projection MethodFront, rear, ceiling mount, tabletop, 360° and portrait mode operation capable
Projection Screen Size36.43″ – 301.4″
Remote ControlFull size remote with laser
Throw Ratio0.5:1
Uniformity75%
Zoom Type0.8 – 2.0x digital
COMPATIBILITY SPECIFICATIONS
3D CompatibilitySupports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz. Required 3D glasses are sold separately.
Computer CompatibilityVGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, 4K, 4K UHD
Horizontal Scan Rate15.375 – 91.146 KHz
Vertical Scan Rate24 – 85 Hz
Video CompatiblityPAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz), 4K
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D)337 x 265 x 122.5
SecurityKensington® lock port, password (OSD)
Weight5.5kg
OTHER
What's in the Box?ZH406ST, AC power cable, remote control, batteries, quick start guide
Optional AccessoriesCeiling mount
