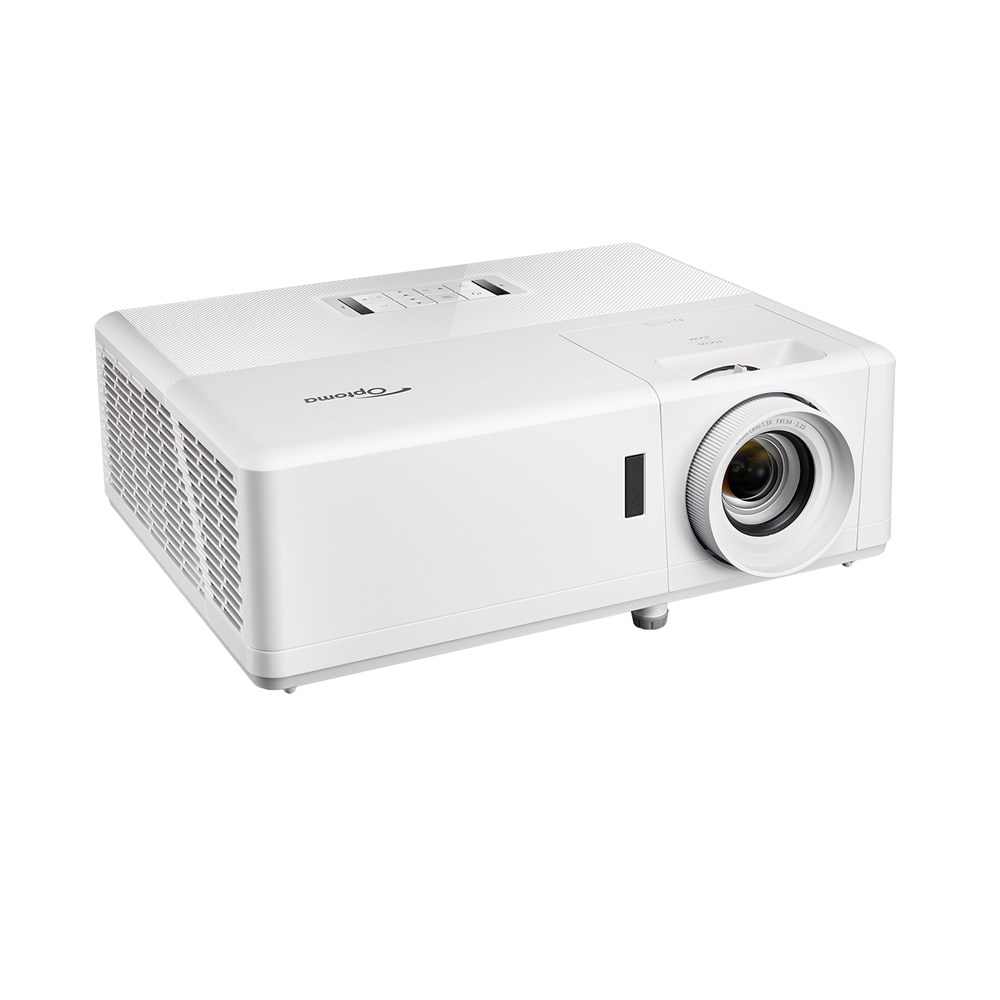

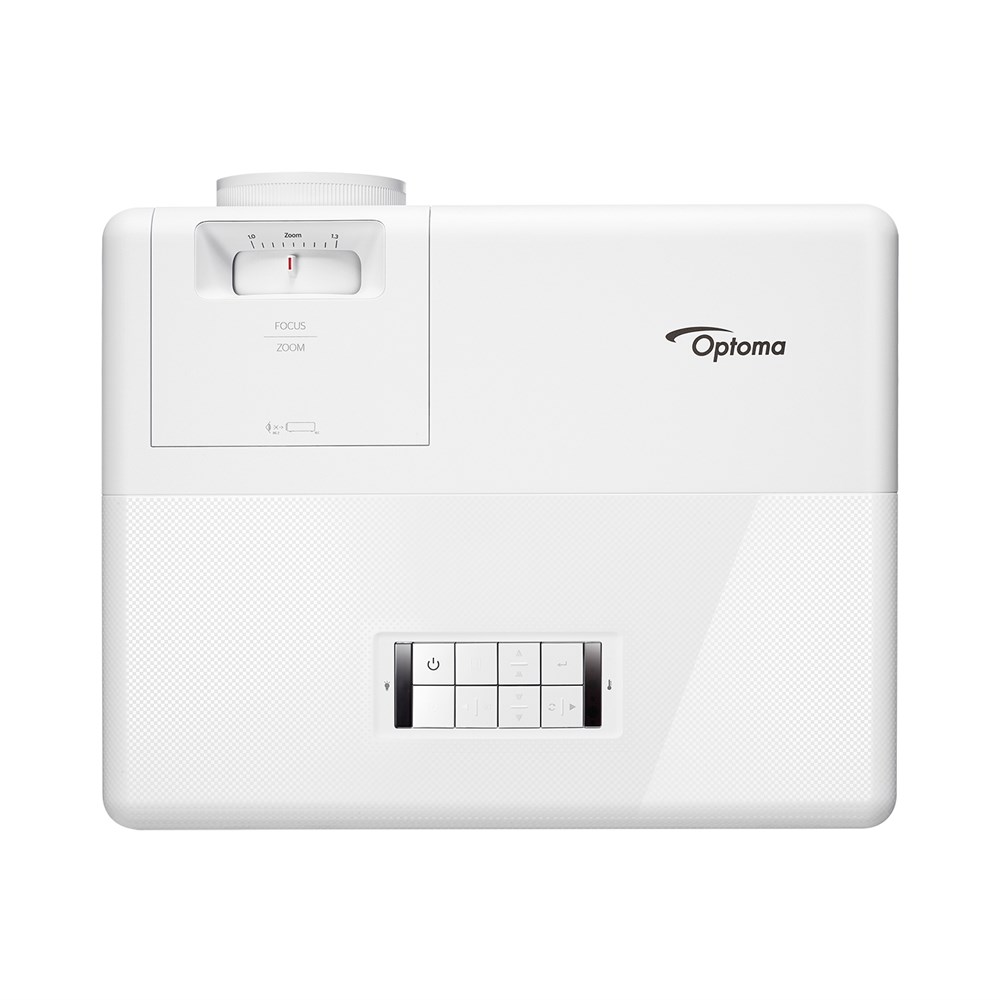

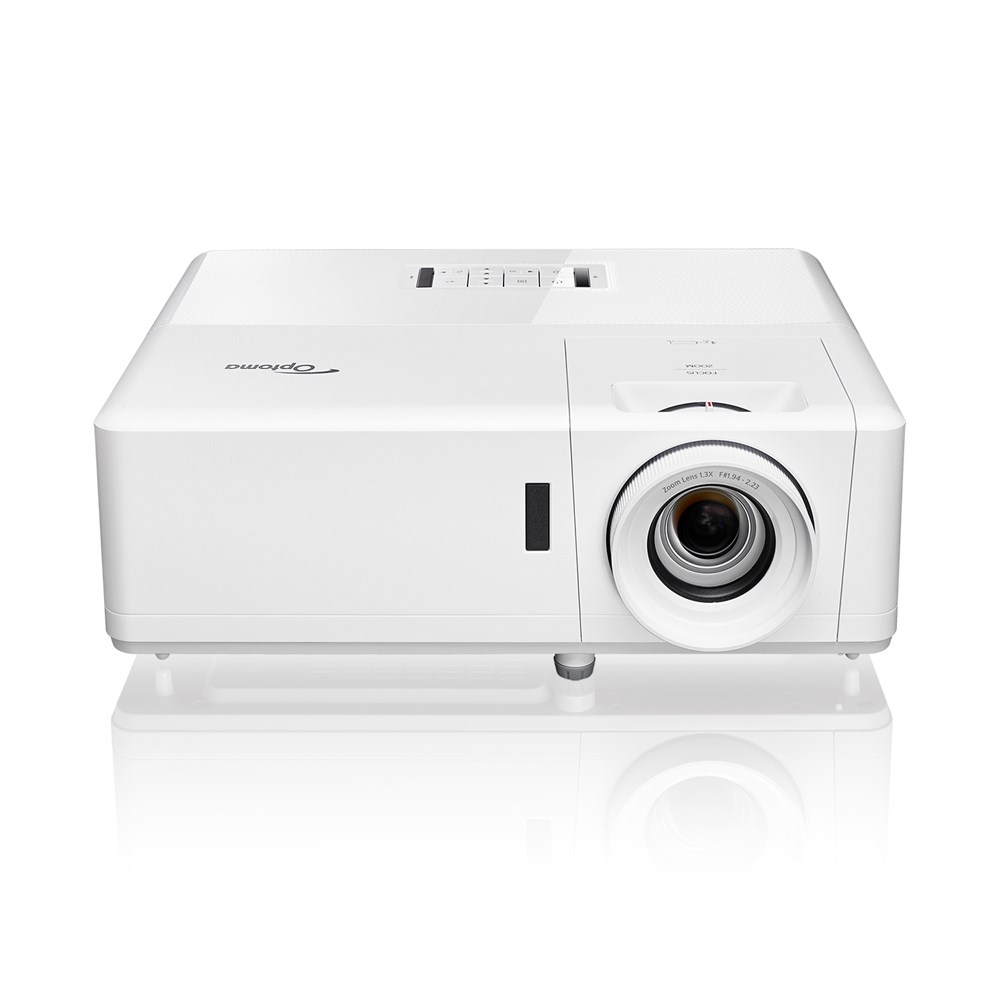

ZH403

Compact high brightness laser projector

The ZH403 is a compact Full HD 1080p DuraCore laser projector. Designed for maintenance free, continuous operation it can be installed in virtually any orientation. Its small and lightweight footprint, 1.3x zoom combined with 360-degree and portrait projection make it a breeze to install.

This feature packed projector is 4K and HDR compatible, has a built-in speaker and its laser technology delivers up to 30,000 hours maintenance-free laser light source. For ultimate control, the projector comes with RJ45 connection allowing you to monitor and control your network in multiple rooms.

Geared for medium-sized exhibition venues, events, tradeshows or meeting rooms, it maintains excellent image quality as brightness and colour saturation is preserved for longer compared to lamp systems.

• Bright Full HD 1080p DuraCore laser projector - 4000 ANSI lumens
• Versatile - 1.3x zoom, 360-degree and portrait projection
• Ultimate Control - Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
• 30,000 hours maintenance-free laser light source

DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

IP6X Airtight optical engine
Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.

Full HD 1080p
1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for watching Blu-ray movies, HD broadcasting and playing video games.

HDR compatible
Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.

Superior contrast
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.

Amazing colour
Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.

360 projection*
Images can be projected over a 360° range* along the projector’s horizontal axis.

*For more information please refer to the user manual

Control
Featuring a wide range of options you can control and monitor the projector remotely.

• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX Compatibility Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• LAN Control Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer. • Schedule the projectors to power on/off. • Control and alter the projector settings using the simple web browser. • Emergency text broadcast capabilities for urgent or important announcements. • Automatically receive email updates for lamp maintenance.

PJLink
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.

USB-Power
Use the USB-A port to power an HDMI dongle, such as Google Chromecast.

AV mute
Stay in control of your presentation with AV mute. Direct your audience's attention away from the screen by blanking the image when not needed.

Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

Quick resume
This feature allows the projector to be instantly powered on again, if it is accidentally switched off.

Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.

Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.

24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.

Specification

• Display technology: DLP
• Resolution: 1080p Full HD (1920x1080)
• Brightness: 4,000 lumens
• Contrast ratio: 300,000:1
• Native aspect ratio: 16:9
• Aspect ratio - compatible: 4:3
• Keystone correction - vertical: +/-40°
• Displayable colours (millions): 1073.4
• Horizontal scan rate: 15.375 ~ 91.146 Khz
• Vertical scan rate: 50 ~ 85 Hz (120Hz for 3D)Hz
• Uniformity: 85%
• Screen size: 0.71m ~ 7.63m (28" ~ 300.3") diagonal
• Light source type: Laser
• LASER life: 30,000 hours
• Throw ratio: 1.21:1 ~ 1.59:1
• Projection distance (m): 1m - 7.9m
• Zoom: 1.3
• Zoom type: Manual
• Focal length (mm): 12.81 ~ 16.74
• Native offset: 110%

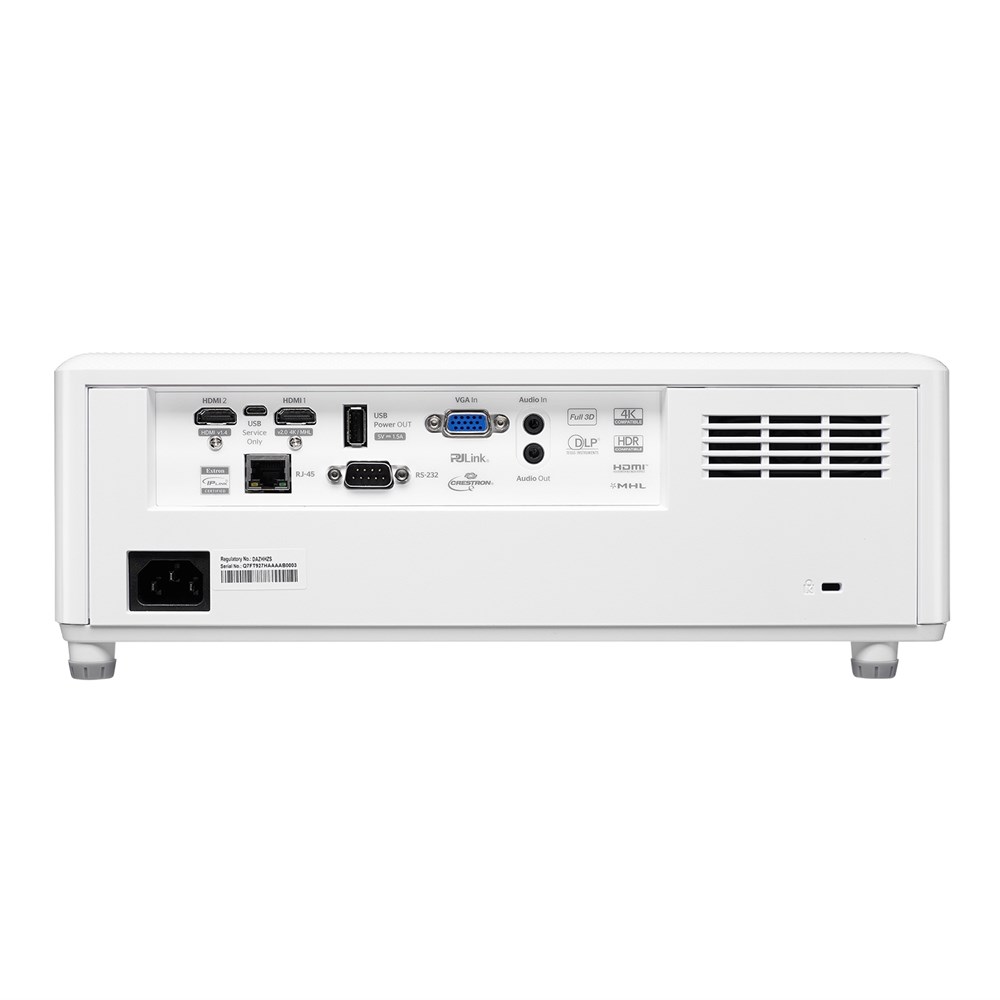

• Connections:
  • Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mm
  • Outputs 1 x Audio 3.5mm, 1 x USB-A power 1.5A
  • Control 1 x RS232, 1 x RJ45, 1 x micro USB service
• Noise level (typical):30dB
• PC compatibility: UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
• 2D compatibility: NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
• 3D compatibility: Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
• 3D: Full 3D
• Security: Security bar, Kensington Lock, Password protected interface
• IP rating: IP6X
• OSD / display languages: 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
• 24/7 operation: Yes
• Operating conditions: 5°C ~ 40°C, Max. Humidity 85%, Max. Altitude 3000m

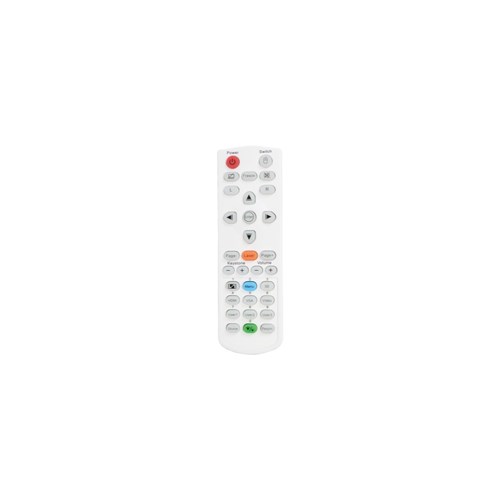

• Remote control: Data remote with laser and mouse function
• Speaker count: 1
• Watts per speaker: 10W
• In the box:
  • AC power cord
  • Remote control
  • 2x AAA batteries
  • Basic user manual
• Optional wireless models: HDCast Pro
• LAN - control: Yes
• Power supply: 100V ~ 240V, 50-60Hz
• Power consumption (standby): <0.5W
• Power consumption (min): 206W
• Power consumption (max): 269W
• Net weight: 5.5kg
• Dimensions (W x D x H) mm: 337 x 265 x 122.5
