  • ZE-TMIS-4. Turbine mini intercom.

ZE-TMIS-4. Turbine mini intercom.

Product Code: ZE-TMIS-4

Brand
Zenitel
RRP: POA


Unit of Measure
EACH


Unspecified
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Ordering

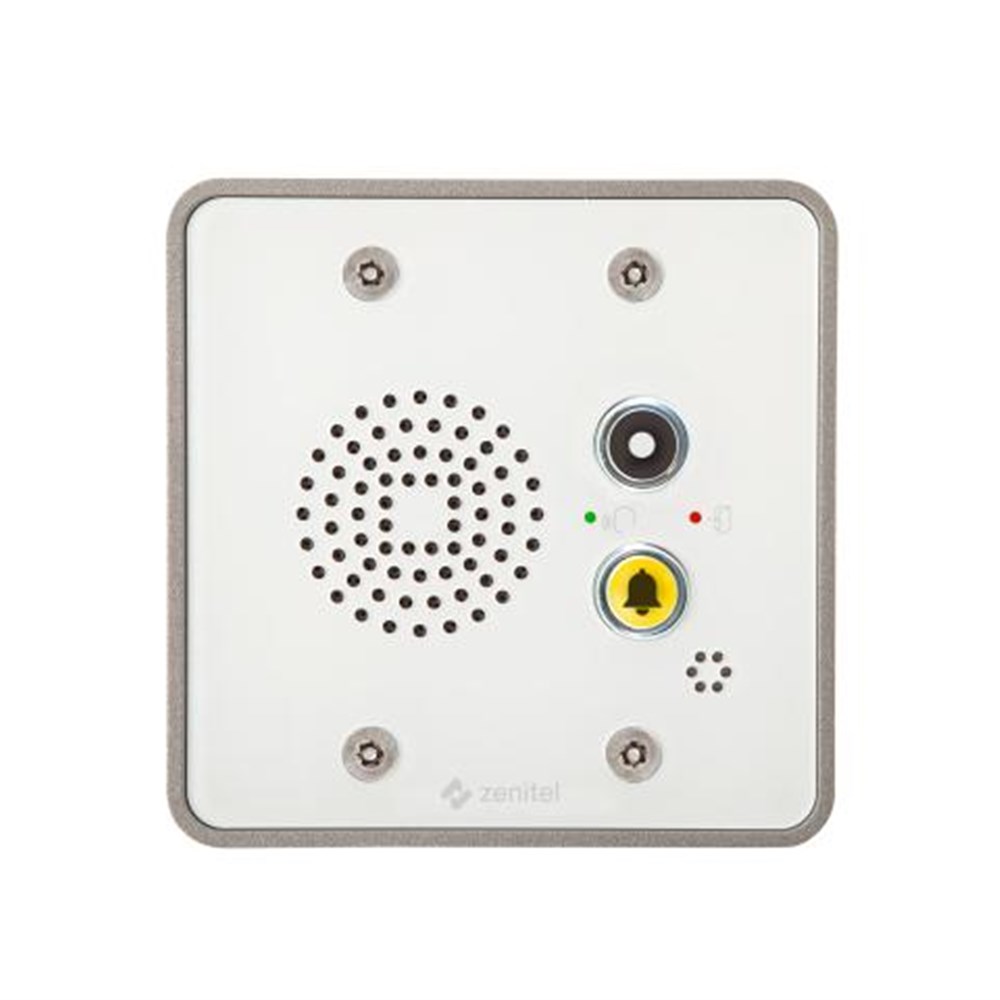

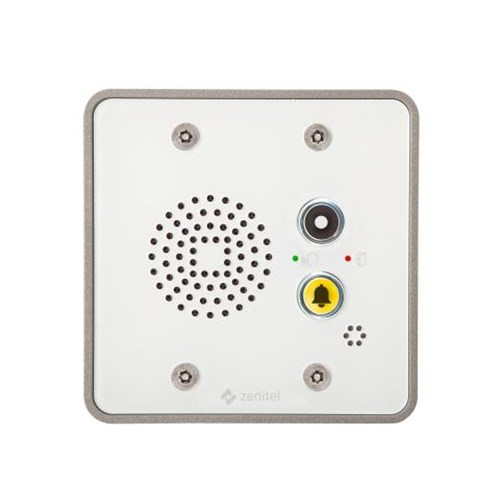

TMIS-4 | Mini Audio Intercom

Mini IP and SIP Intercom - 2 Buttons

  • Durable white thermoplastic front plate with two programmable call buttons, and LED indicator for door status.
  • Advanced Audio Technology - High sound pressure levels, automatic volume gain control, and active noise and echo cancellation for superior clarity.
  • ONVIF Conformant - Seamless video and device integration
  • Flexible Installation - Options for wall or flush mounting
  • Seamless Integration - Fully compatible with Zenitel Connect Pro, ICX-AlphaCom, IC-EDGE, and SIP-based systems.

The TMIS-4, a robust IP intercom station designed for building-security, public-space or emergency-call point installations. With two call buttons, two-way natural communication in HD voice, and background-noise cancellation, it delivers clear and reliable interaction even in noisy environments. Crafted with a die-cast aluminium frame, it integrates seamlessly with IP networks via SIP, ONVIF and other standard protocols. Whether used for information, warning, or everyday access-control communication, the TMIS-4 brings high performance in a compact, sleek format.

AUDIO
  • Max SPL @ 0.5m    96 dB
  • Codecs    G.711, G.722, G.729
  • Frequency range, G.722 Codec    200 Hz – 7000 Hz
  • Audio technology
    • Full open duplex, switched open duplex
    • Sound level detection (scream alarm)
    • Automatic volume control (AVC)
    • Acoustic Echo Cancellation (AEC)
    • Noise cancellation
  • Internal speaker amplifier    10 W class D
  • Internal speaker    1 W
  • Microphone technology    Digital MEMS, omnidirectional microphone
NETWORKING & PROTOCOLS
  • Application Protocols    SIP, SIPS, HTTP, HTTPS, TFTP, RTP, SRTP, RTCP, RTSP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
  • IP Versions    IPv4 & IPv6
  • LAN protocols    Power over Ethernet (IEEE 802.3 a-f), Network Access Control (IEEE 802.1x)
  • Supervision functions    Keep alive test, tone test, status reports
  • SIP Support    RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme
  • DTMF Support    RFC 2833, 2976 (SIP info)
  • Integration and API    Connected to ICX-AlphaCom through AlphaCom protocol ACDP
  • Connected to Zenitel Connect Pro though Zenitel Link
  • ONVIF
HARDWARE
  • Ethernet connector    1 x RJ45
  • General inputs and outputs    6 (configurable)
  • Outputs    12mA as LED drivers
  • Change-over relay (NO+NC+COM)    SELV
  • Power options    PoE, PoE+
  • PoE (Power over Ethernet)    IEEE 802.3af standard
  • Power consumption    2.8 W
  • Button backlight    LED
  • Call indication    Icons/colors for hearing impaired
CONSTRUCTION
  • Dimensions (HxWxD)    117 x 117 x 39 mm / 4.6'' x 4.6'' x 1.5''
  • Dimensions after flush mount    117 x 117 x 5.5 mm / 4.6'' x 4.6'' x 0.2''
  • Weight    0.3 kg / 0.66 lbs.
  • Faceplate material    2 mm / 0.12” PMMA, colour printed on back side
  • Base / frame material    3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted
  • Electronics cover material    Polycarbonate (translucent)
  • Loudspeaker poke protection, small diameter objects    Stainless steel mesh, acoustically transparent
Environmental compliances
  • IP rating    IP42
  • Operating temperature range    -25° to 55° C / -13° to 131° F
  • Storage temperature range    -25° to 55° C / -13° to 131° F
  • Relative humidity    < 95% non-condensing
Approvals
  • EMC    EN 61000-6-1, EN 61000-6-3
  • Safety    IEC / UL 62368-1, IECEE CB
  • Sustainability    RoHS, REACH
OTHER SPECIFICATIONS
  • Country of manufacture    Poland
  • Warranty    2 Years standard warranty, extendible up to total of 5 years (additional fee)
