  • ZDD-1. Touch-screen intercom station.

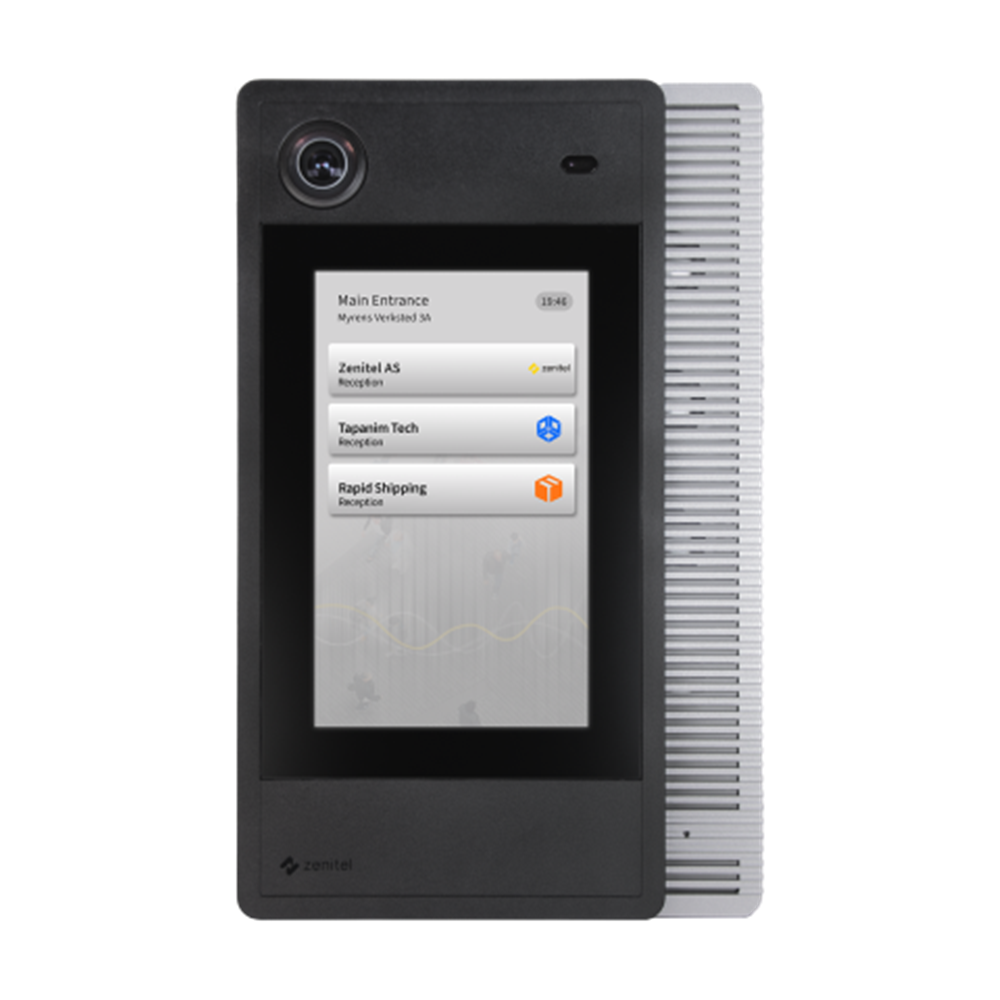

ZDD-1. Touch-screen intercom station.

Product Code: ZE-ZDD-1

Brand
Zenitel
RRP: POA


Unit of Measure
EACH


2 Year
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Ordering

ZDD-1 is a touch display video intercom perfect for multi tenant buildings. This building intercom combines a sleek, low-profile design with a high-resolution touchscreen for an intuitive user experience. Engineered with Zenitel’s renowned durability, the intercom offers flexible mounting options, making it ideal for a wide range of spaces and environments. Thoughtfully positioned microphones and speakers ensure crystal-clear communication in any setting.

Built on Zenitel’s legacy of audio excellence, the ZDD-1 integrates cutting-edge technology to deliver superior sound quality. Key features include HD voice, Open Duplex, Active Noise Cancellation, four digital MEMS omnidirectional microphones, and a 4 x 4W Class D smart amplifier for optimal audio performance.

The ZDD-1 also features advanced camera technology, offering a wide field of view (FoV) HD video, Digital PTZ, and support for MJPEG and H.264.

With over 70 years of expertise in critical communication, Zenitel continues to set the industry standard, delivering exceptional audio and video quality in every product.

  • ONVIF Conformant
  • Cybersecurity compliant
  • Advanced Audio Technology – High sound pressure levels, automatic volume gain control, and active noise and echo cancellation for superior clarity.
  • HD Video Quality – Supports up to 1080p resolution for crisp and detailed visuals.
  • Wide-Angle Lens – Ensures a broad field of view for optimal coverage.
  • 7” TFT LCD Touch Display – Intuitive and high-resolution touchscreen interface.
  • Weather-Resistant (IP66) & Robust (IK08)
Audio
  • SPL peak power    100 dB @ 0.5m
  • Codecs    G.711, G.722, G.729
  • Frequency range, G.722 Codec    200 Hz - 7000 Hz
  • Audio technology:    Full open duplex, switched open duplex
  • Sound level detection (scream alarm)
  • Automatic gain control
  • Automatic volume control (AVC)
  • Noise cancellation
  • Internal speaker amplifier    4 x 4W Class D smart amplifier
  • Internal speaker    4 x 4W
  • Microphone technology    4 x digital MEMS, omnidirectional microphones
Video
  • Image Sensor    1/2.5" RGB CMOS
  • Lens    F 2.2, fixed iris
  • Light Sensitivity    Down to 1 lux
  • Resolution    240p / 480p / 960x720p / 1440x1080p (MJPEG does not support 720p and 1080p resolution)
  • Frame Rate    Up to 30 FPS in 1440x1080p (30 FPS is only supported in H.264 mode, while MJPEG is limited to 10 FPS)
  • Supported Codecs    MJPEG, H.264
  • Digital PTZ    Yes
  • Digital Zoom    Up to 4x
  • Field of View    Up to 180 degrees horizontally and vertically
Networking and Protocols
  • Protocols    SIP, SIPS, HTTP, HTTPS, TFTP, RTP, SRTP, RTCP, RTSP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
  • IP Versions    IPv4 & IPv6
  • LAN protocols    Power over Ethernet (IEEE 802.3 bt) Network Access Control (IEEE 802.1x)
  • Advanced supervision functions    Keep alive test, tone test, status reports
  • SIP support:    RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info)
  • DTMF support    RFC 2833, 2976 (SIP info)
  • Integration and API    Connected to ICX-AlphaCom through AlphaCom protocol ACDP
  • Connected to Zenitel Connect Pro though Zenitel Link
  • ONVIF
Hardware
  • Ethernet connector    2 x RJ45
  • All other connectors    Tool less, spring loaded, vibration proof terminals
  • General input and outputs (I/O)    3 (configurable)
  • Outputs    12mA as LED drivers
  • Change-over relay    NO+NC+COM (2A, 60W, SELV)
  • Power option    PoE++
  • PoE (Power over Ethernet)    802.3bt Type 3 Class 6 (51W)
  • Power consumption    In idle mode (full station) at 48V DC: 6.5W (0% backlight PWM). Maximum power consumption: 30W (100% backlight PWM and sound)
  • Display Technology    TFT LCD
  • Display Resolution    1280 x 768 pixels (WXGA)
  • Display Size    7.0 inch (diagonal)
  • Display Luminance    930 cd/m^2
  • Display View Angle    80° from all sides
  • Presence detection    Pulsed coherent radar sensor
  • Ambient light sensor    Yes
Construction
  • Dimensions (HxWxD)    281 x 176 x 44.5 mm / 11.06'' x 6.93'' x 1.75''
  • Dimensions after flush mount    281 x 176 x 23.5 mm / 11.06'' x 6.93'' x 0.92''
  • Dimensions with on wall box    281 x 176 x 48.5 mm / 11.06'' x 6.93'' x 1.91''
  • Weight    1.7 kg / 3.75 lbs
  • Faceplate material    ASA, Glass
  • Base / frame material    Aluminium
  • Electronics cover material    ASA, PC
  • Gasket material    TPE, Silicone
Environmental Compliance
  • IP Rating    IP66
  • IK Rating    IK08
  • Operating temperature range    -25° to 55° C / -13° to 131° F
  • Storage temperature range    -25° to 65° C / -13° to 149° F
  • Relative humidity    < 95% not condensing
Approvals
  • EMC    EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, FCC part 15
  • Safety    UL 62368-1, IEC 62368-1, IECEE CB
  • Sustainability    RoHS, REACHSeamless Integration – Fully compatible with Zenitel Connect Pro, IC-EDGE, and SIP-based systems.
