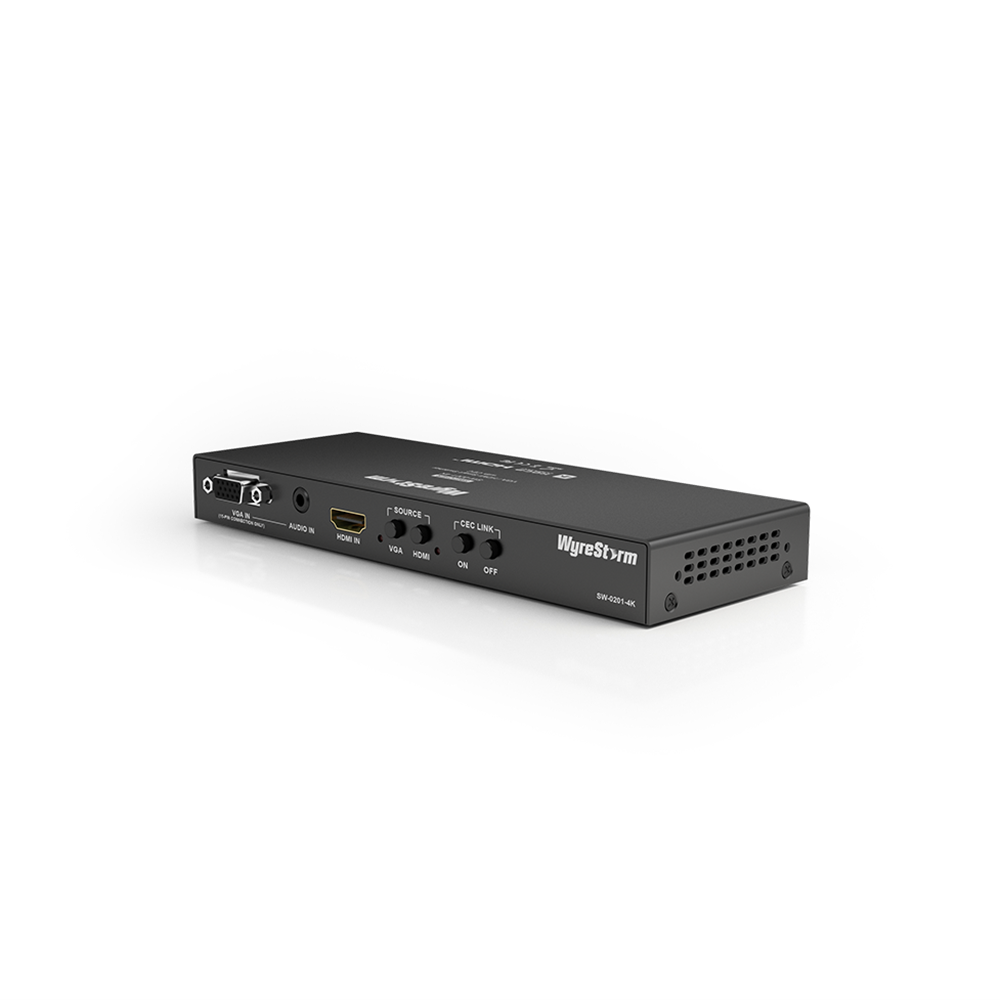

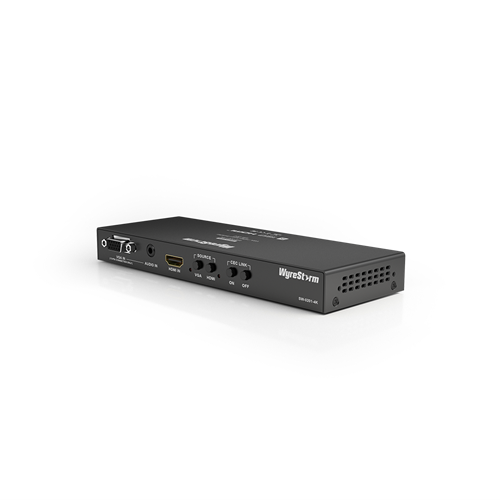

2x1 HDMI/VGA Smart Switch with CEC Control

SW-0201-4K
The SW-0201-4K is a compact dual input device for manually or automatically switching a connected HDMI or VGA+ audio source to a single HDMI output with CEC-Link ensuring the display device is powered on during use.

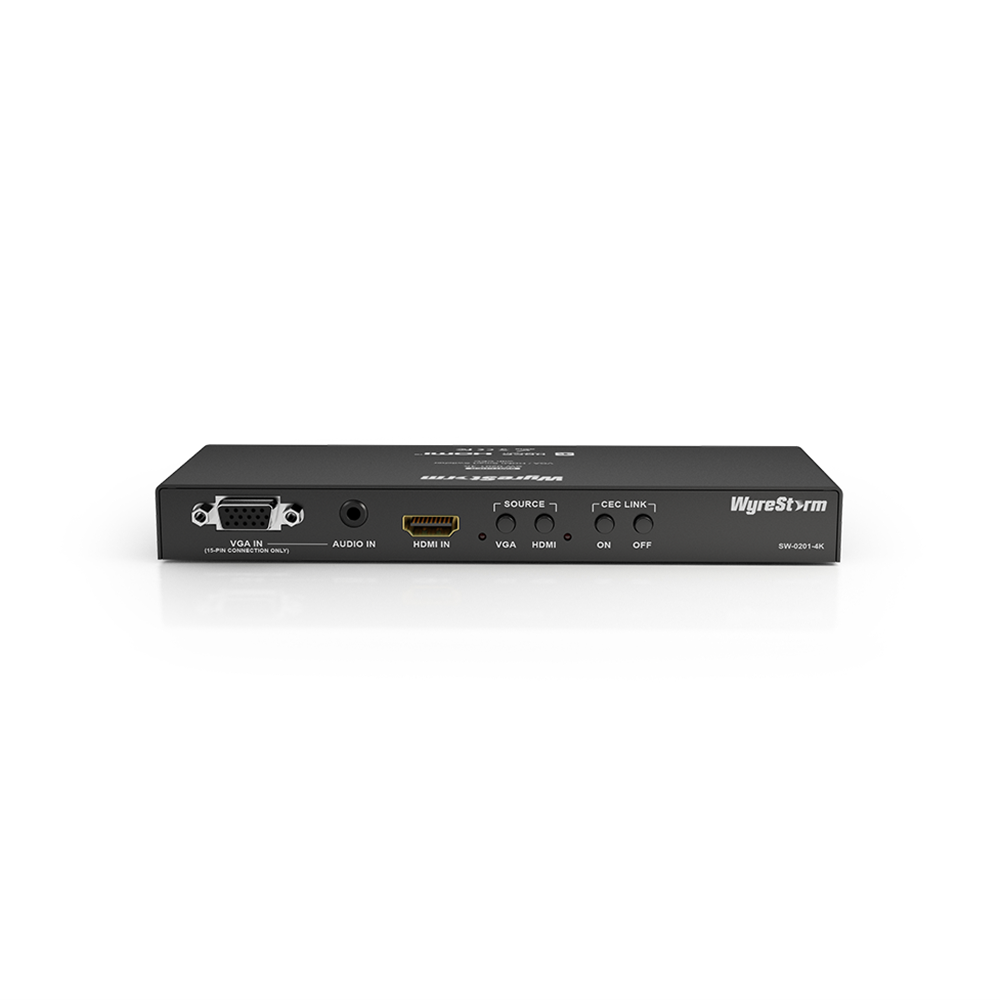

No additional cabling is required, other than a simple HDMI connection with manual control of source switching and CEC via push buttons on the front of the unit or by using the contact closure points, which can be wired in-desk or to a wall plate.

UP TO 4K CONTENT
An introduction to the Huddle Series, the SW-0201-4K offers more than one would expect from an entry level device. Supporting up to 4K content from HDMI sources @60Hz and 1920x1200p from VGA, the SW-0201-4K is a great product for a great price!

AUTO SWITCHING
While the SW-0201-4K can be switched manually with its front panel buttons, it also has the ability to automatically switch between VGA and it’s HDMI, using the “First-In, Last-Out” rule, making switching as seamless as possible.

CEC TRIGGERING
With CEC capable displays, CEC can be triggered from source detection or with use of the front panel CEC control, allowing the user to power on and off displays through the HDMI cable with a touch of a button.

OUT OF SIGHT…
…Out of mind. The SW-0201-4K doesn’t require additional cabling, other than a simple HDMI connection and with it’s sleek and compact chassis, can be discretely mounted to a desk or table for un-obstructive installations.

FEATURES

• Provides automatic or manual switching of connected HDMI and VGA + audio sources
• CEC Link allows for connected CEC compatible display devices to be powered On automatically when source is in use
• Contact closure control via wired desk or wall plate for sources and CEC allow for switcher to be installed out of sight
• Supports 4K content from HDMI sources and 1920x1200p from VGA
• Compact chassis can be desk-mounted for unobtrusive installation
• HDCP compliant
• 3D supported
• Supports transmissions up to 4K@60Hz (HDMI)
• Supports HD resolutions up to 1920x1200 (VGA)
• Auto-switching transmitter detects and selects VGA (+audio) and HDMI devices as soon as the source is connected
• Audio embed for VGA via 3.5mm jack
• Cable termination follows IEEE-568B standards
• LED indication for power supply to unit and source selection
• Threaded bushings allow use of both standard and locking DC power plugs
• Energy efficient universal power supply included
• Mounting brackets included

SPECIFICATIONS

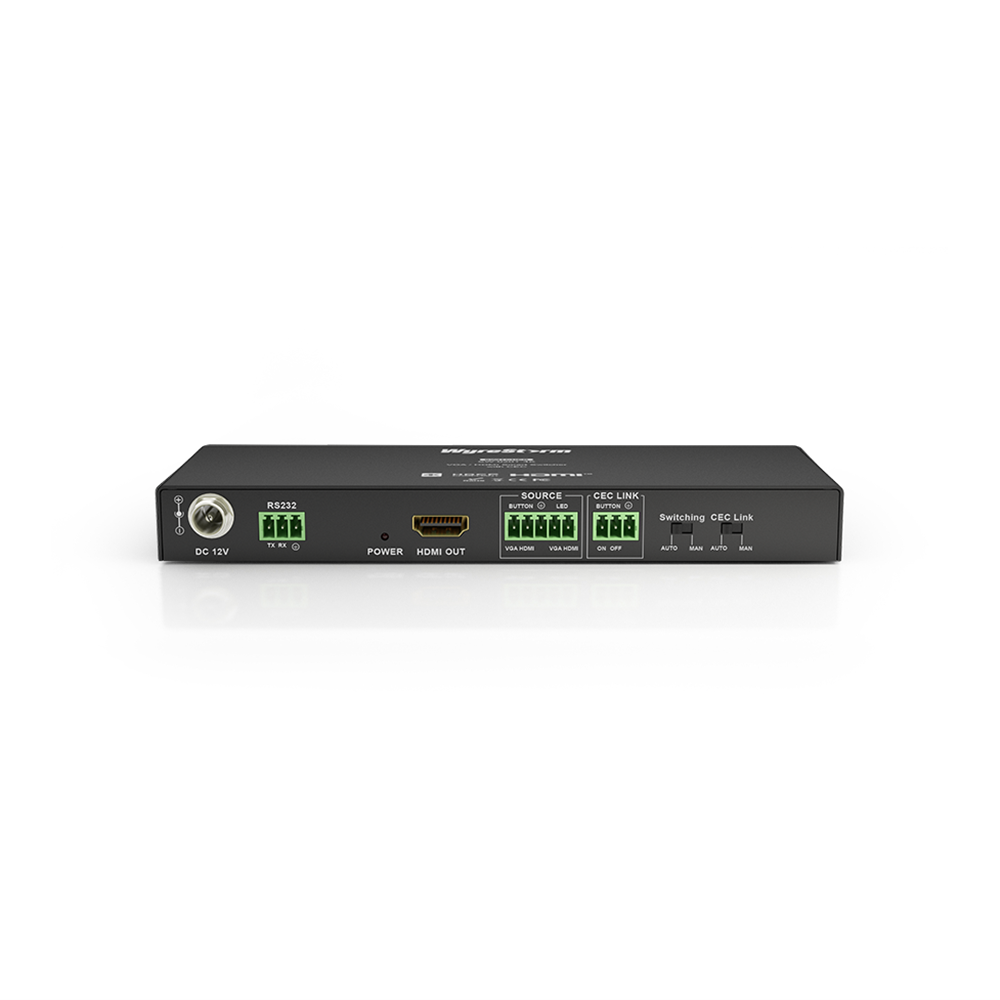

• Inputs
  • 1x HDMI In: 19-pin type A
  • 1x VGA In: 15-pin DSUB15 VGA
  • 1x Audio In: 3.5mm (1/8in) TRS Stereo
• Outputs: 1x HDMI Out 19-pin HDMI type A
• Output Video Encoding: TMDS HDMI
• Audio Formats: 2ch PCM
• Max. Video Resolution
  • 1920x1200p @60Hz 8bit (15m/50ft)
  • 1920x1080p @60Hz 8bit (7m/23ft)
  • 3840x2160p @30Hz 4:4:4 8bit (7m/23ft)
  • 4096x2160p @60Hz 4:2:0 8bit (7m/23ft)
• Color Depth: 8bit
• Maximum Pixel Clock: HDMI - 340Mz | VGA - 165MHz

• HDMI: HDCP 2.2 Compliant | EDID | CEC | DVI/D supported with adapter (not included)
• RS-232: 1x RS-232: 3-pin Phoenix
• CEC Link Relay: 1x CEC Link: 3-pin Phoenix
• Source Control Relay: 1x Source: 5-pin Phoenix

• Power Supply: 12V DC 0.5A
• Max Power Consumption: 1.5W

• Operating Temperature:
  • 32°F ~ 113°F (0°C ~ 45°C)
  • 10% ~ 90%, non-condensing
• StorageTemperature
  • -4°F to ~ 158°F (-20°C ~ +70°C)
  • 10% ~ 90%, non-condensing
• Maximum BTU: 5.11 BTU/hr

• Rack Units/Wall Box: <1U
• Height: 20mm/0.79in
• Width: 178mm/7.01in
• Depth: 64mm/2.52in
• Weight: 0.28kg/0.62lbs

• Safety and Emission CE | FCC | RoHS
