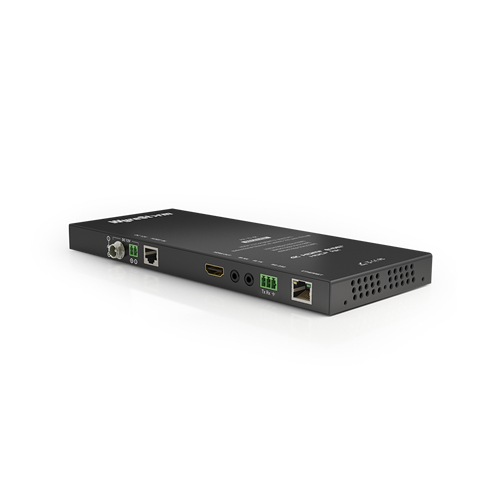

HDBaseT™ 4K UHD Receiver (4K: 70m/230ft | 1080p: 100m/328ft)

RX-70-4K

The perfect complement to a WyreStorm HDBaseT matrix system, presentation switch or in-wall transmitter solution, the RX-70-4K ultra slim display receiver supports 4K UHD video with HDR up to 70m/230ft and 1080p to 100m/328ft.

CLASS A HDBASET™
Receives HDMI transmissions of 4K up to 70m/230ft and 1080p up to 100m/328ft with multi-channel audio, control, ethernet and PoH.

CONTROL OPTIONS
Supports 3 methods of control pass-through. Being a pure-HDBaseT™ device, the RX-70-4K can handle bi-directional IR, RS-232 and even CEC routing when used as part of a compatible WyreStorm matrix or extender system.

DISCREET INSTALLATION
Low Profile chassis height of just 18mm / 0.7” for greater installation convenience behind the even slimmest wall mounts.

2-WAY POH
The RX-70-4K can either be powered by a PoH-compatible matrix or presentation switcher or it can itself deliver power to a transmission device such as the WyreStorm In-wall HDBaseT™ Transmitters.

Features

• Low profile chassis of 18mm/0.7” for easier, more convenient installations behind screens at display zones
• Transmits discrete wide-band bidirectional IR control signal/routed serial commands (from compatible matrix) together within the HDMI signal over a single Cat5e/6
• Robust Class A HDBaseT technology for stable 4K/HD distribution and control resistant to electrostatic and environmental interference compared to conventional UTP transmission
• Distribution of video (4K & 1080p), multichannel audio, bidirectional IR, PoH and 10/100 Ethernet over single Cat5e/6
• Multichannel audio supports 7.1 DTS Master HD and Dolby True HD
• 2-way PoH (Power over HDBaseT) – Receiver draws power from matrix so no local power required at display location
• HDMI v2.0 with HDCP 2.2
• Full 3D compatibility up to 1080p
• Switchable RS-232 selection for firmware update
• Power options – additional phoenix port and threaded DC for use of both standard and locking DC power plugs

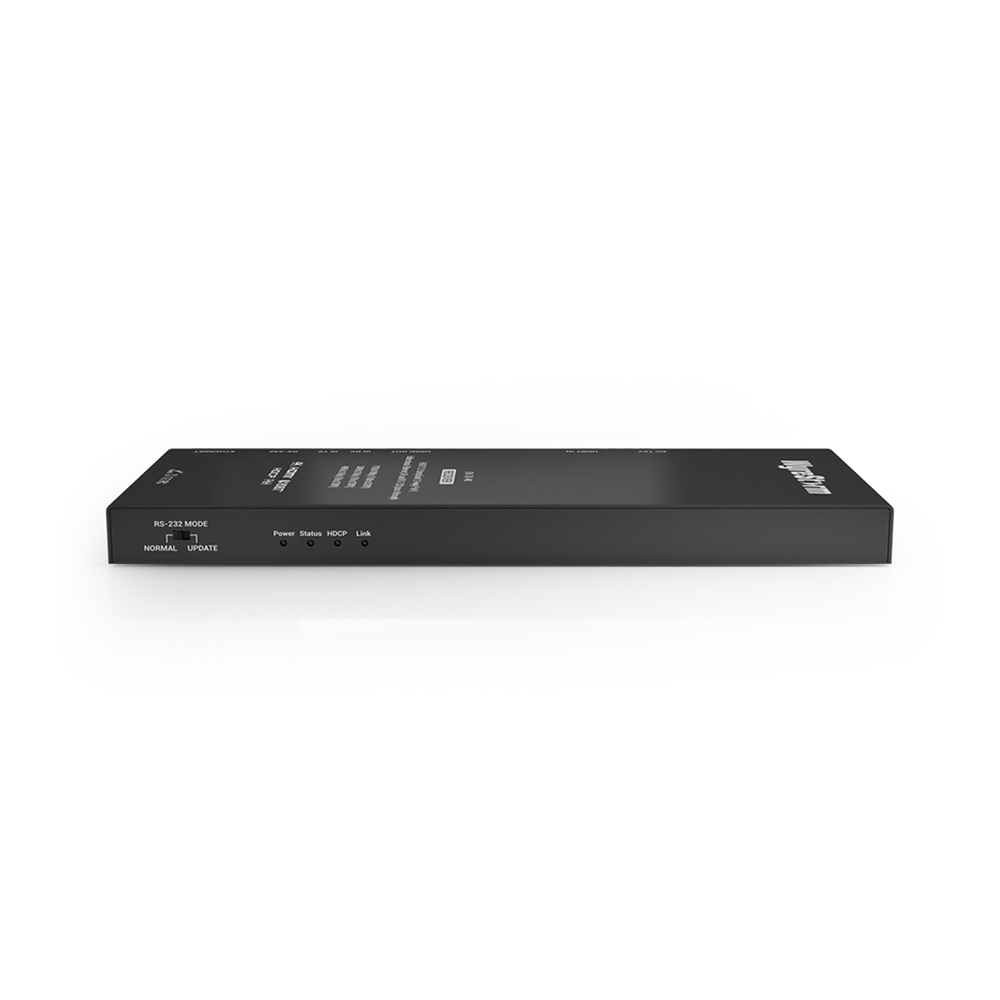

• Visual LED indication for power supply, signal status to show display connection, HDCP in signal and Link between HDBaseT devices
• Automatically adjusts feedback, equalization and amplification of signal
• Energy efficient universal power supplies included
• Mounting brackets and IR connections included

SPECIFICATIONS

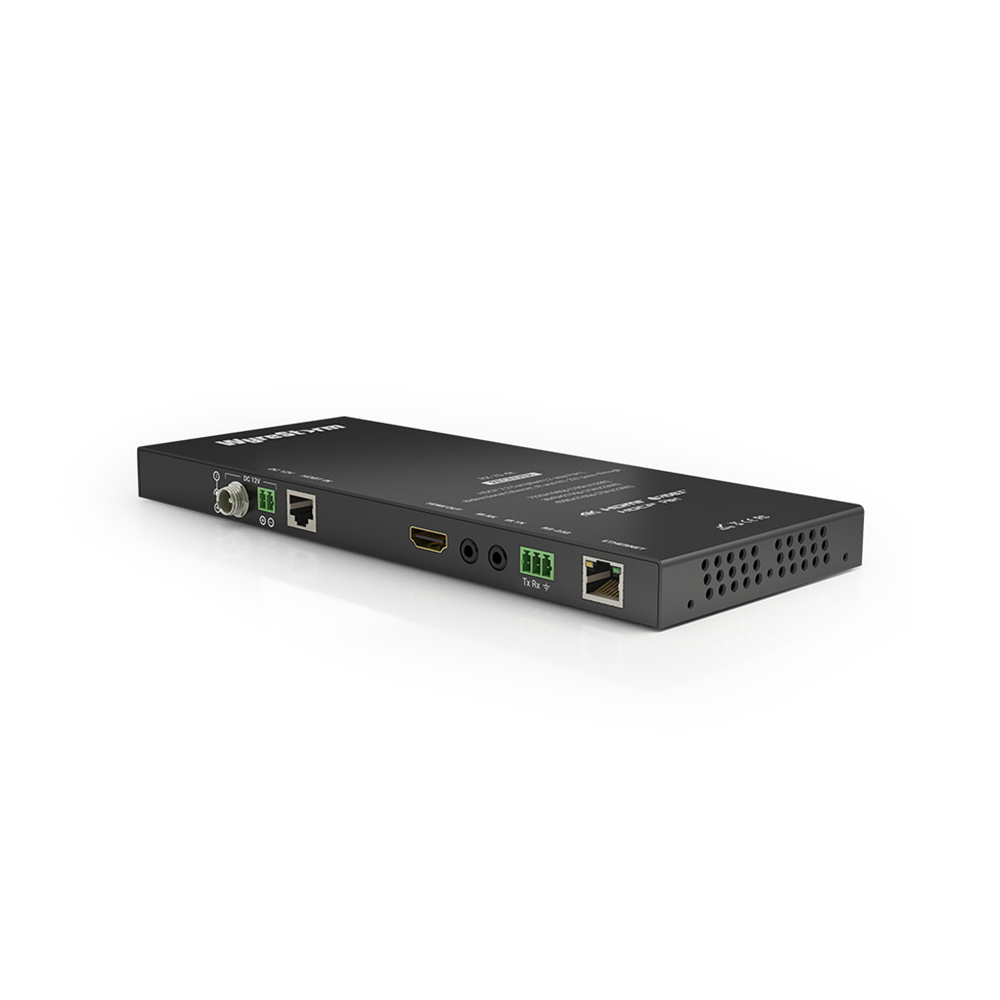

• Inputs: 1x HDBT In 8-pin RJ-45 female
• Outputs: 1x HDMI 19-pin type A
• Audio Formats: 2ch PCM | Up to DTS-X and Dolby Atmos
• Video Resolutions (Max)
  • HDMI
    • 1920x1080p @60Hz 48bit (15m/50ft)
    • 3840x2160p @30Hz 4:4:4 24bit (7m/23ft) | @24Hz 4:2:0 HDR 10bit per channel (3m/9.8ft)
    • 4096x2160p @60Hz 24bit 4:2:0 (7m/23ft)
  • Using Cat6
    • 1920x1080p @24/25/30/60Hz 36bit (100m/328ft)
    • 3840x2160p @30Hz 4:4:4 24bit (70m/230ft) | @24Hz 4:2:0 HDR 10bit per channel (70m/230ft)
    • 4096x2160p @60Hz 4:2:0 24bit (70m/230ft)
  • Using Cat6a/7
    • 1920x1080p @24/25/30/60Hz 48bit (100m/328ft)
    • 3840x2160p @30Hz 4:4:4 24bit (100m/328ft) | @24Hz 4:2:0 HDR 10bit per channel (100m/328ft))
    • 4096x2160p @60Hz 4:2:0 24bit (100m/230ft)
• Color Depth (Max): 1080p: 48bit | 4K UHD: 24bit | HDR @24p: 10bit per channel BT.2020
• Maximum Pixel Clock: 297mHz

• HDMI: HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
• HDBaseT™: HDCP 2.2 | EDID | 2-way PoH | Bidirectional IR, RS-232, and Ethernet
• Ethernet: 1x 8-pin RJ-45 female | 10/100 Mbps auto-negotiating | Bidirectional over HDBaseT™
• IR:
  • 1x IR TX 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT™
  • 1x IR RX 3.5mm (1/8in) TRS Stereo | Bidirectional over HDBaseT™
• RS-232: 1x 3-pin Phoenix Connector | Bidirectional over HDBaseT™

• Power Supply: 12V DC 2A
• PoH: 48V 15.4W
• Max Power Consumption: 7.2W

• Operating Temperature:
  • 32°F ~ 113°F (0°C ~ 45°C)
  • 10% ~ 90%, non-condensing
• Storage Temperature:
  • -4°F to ~ 158°F (-20°C ~ +70°C)
  • 10% ~ 90%, non-condensing
• Maximum BTU: 24.6 BTU/hr

• Rack Units/Wall Box: 1U
• Height: 18mm/0.71in
• Width: 232mm/9.14in
• Depth: 93mm/3.67in
• Weight: 0.5kg/1.1lbs

• Safety and Emission: CE | FCC | ROHS
