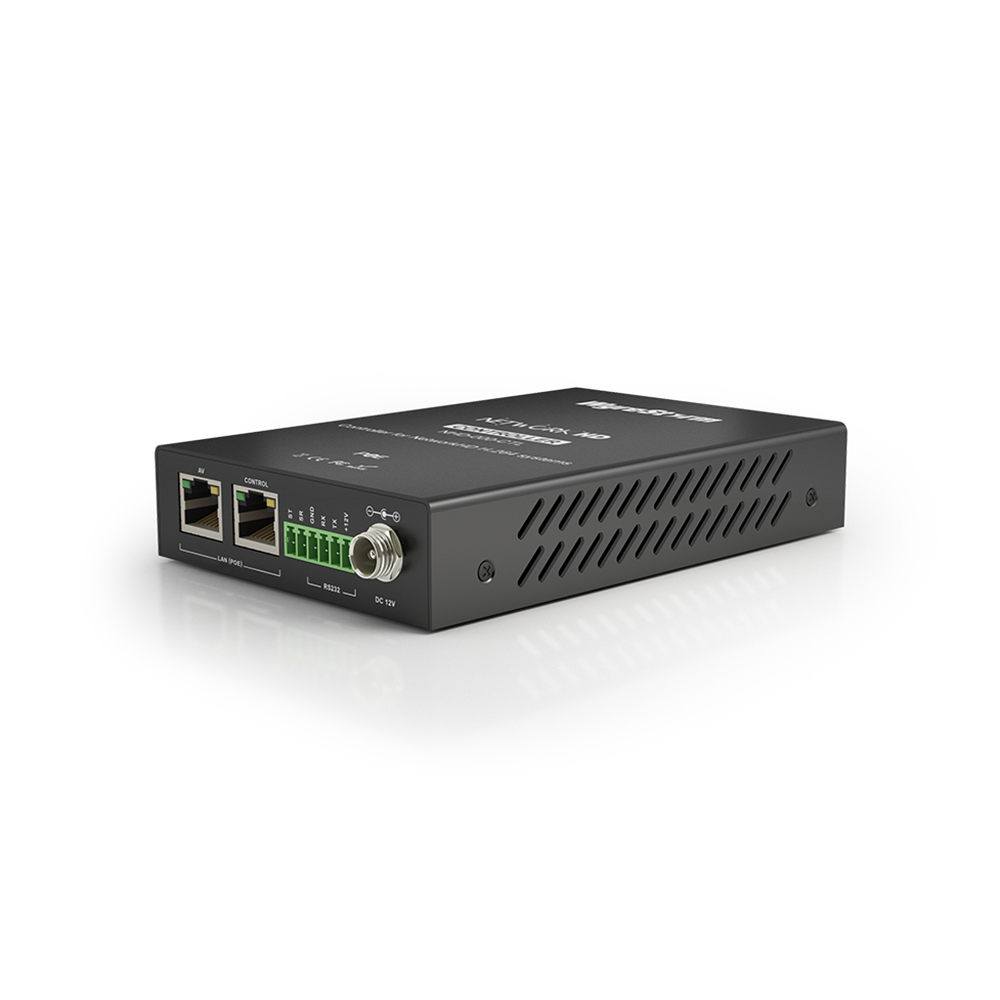

Controller for NetworkHD™ Systems

NHD-000-CTL
The NHD-000-CTL is the innovative control interface that makes the powerful NetworkHD system the most simple and quickest-to-configure AV over IP system available.
The NHD-000-CTL IP controller is designed to be used with NetworkHD 100, 200, 400 & 600 Series systems to bridge the various encoders and decoders to a single, API-based connection point for use by a control processor or the NetworkHD Touch™ App. The NHD-000-CTL also provides monitoring and remote access for Integrators via its on-board Web UI.

Two isolated NICs provide the option to interface with two separate Networks or VLANs offering a secure and hassle-free option for simple switch setups.

WEB BASED CONTROL
Simple, intuitive web-based management of all encoders and decoders enabling local or remote monitoring of status and operation logs as well as standard operations such as matrix and video wall switching through both administrator and user logins.

DUAL ETHERNET PORTS
Dual Ethernet ports for complete isolation of control and AV network traffic, enables the use of multiple LANs, VLANs or unified network topologies depending on the requirements of the project. The NHD-000-CTL supports PoE, simplifying cabling and equipment considerations

MAJOR CONTROL SYSTEM INTEGRATION
Interface to major control systems through powerful drivers including Crestron, AMX, RTI, Control4 and many more via the powerful NetworkHD API. The freely available NetworkHD Touch App can also be instantly deployed.

UNIFIED CONTROL & BACKUP
Removing the complexity of requiring a control system to talk to every NetworkHD component, the NHD-000-CTL provides a unified control and monitoring interface point. Multiple NHD-000-CTLs can co-exist on a network, offering Hot or Cold backup options for mission critical deployments

• Compatible with all NetworkHD 100, 200, 400, and 600 components
• Instant deployment available for the NetworkHD Touch iPad control App to provide live video previews and drag and drop source selection
• Provides automatic discovery of NetworkHD devices
• Simple, intuitive Web-based configuration of encoder and decoder settings
• Interface to major control systems through powerful drivers
• Dual Ethernet Ports for complete isolation of control and AV network traffic
• IP control via LAN (Telnet & Web GUI) and a third party controller (API)
• Unified control and configuration access for most NetworkHD components
• Compatible with configuration files from PC configurator to quickly and reliably perform matrix operations for encoders and decoders
• Web-based configuration
• Threaded DC 12V power connection

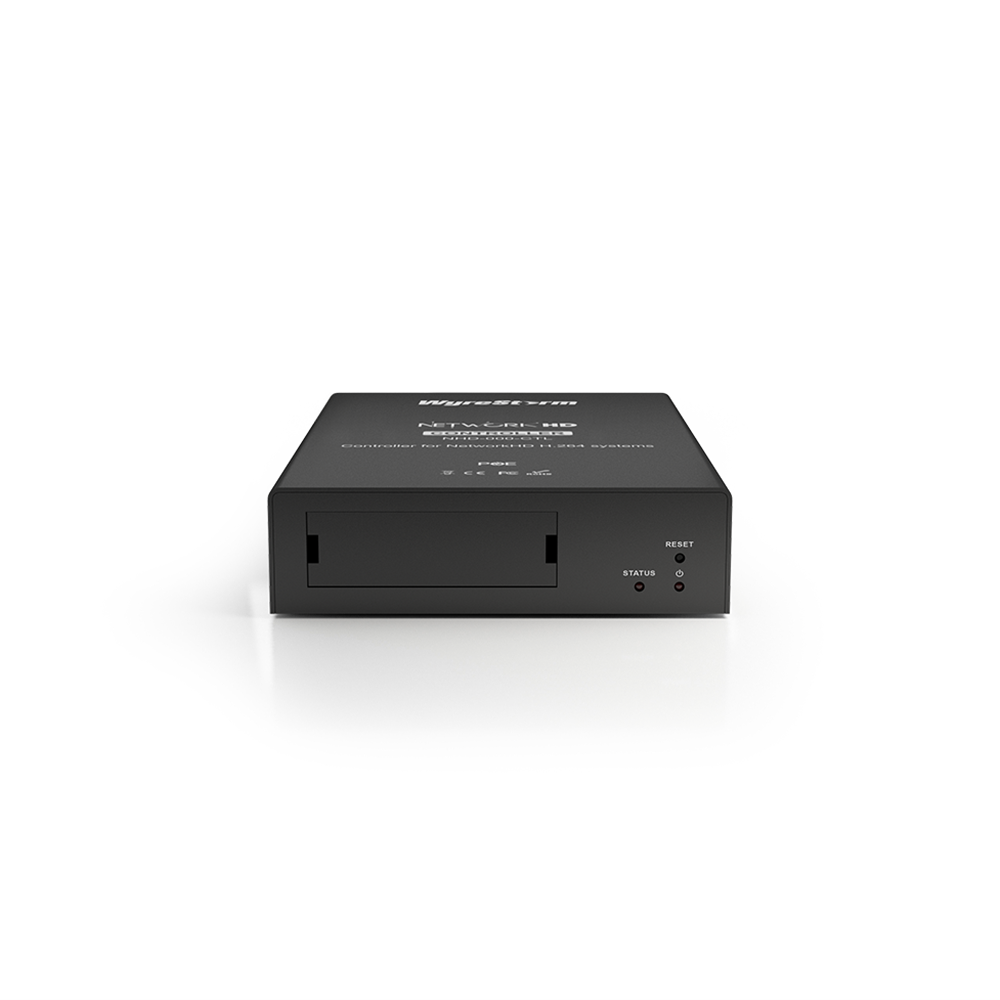

• LED Power and Status indication
• Unit reset button
• Unit label holder

SPECIFICATIONS

• Inputs/Outputs:

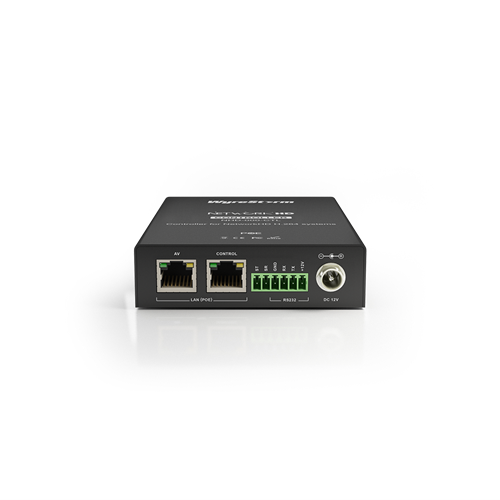

  • 1x LAN AV - 8-pin RJ-45 female
  • 1x LAN Control - 8-pin RJ-45 female

• Ethernet:
  • 1x LAN AV - 8-pin RJ-45 female
  • 1x LAN Control - 8-pin RJ-45 female
  • 10/100 Mbps auto-negotiating
• RS-232: 1x RS-232 6-pin Phoenix Connector

• Power Supply: Input: 100~240V AC 50/60Hz | Output: 12V DC 1A
• Max Power Consumption: 1.6W
• PoE: <15.4W | 802.3af

• Operating Temperature:
  • 32°F ~ 113°F (0°C ~ 45°C)
  • 10% ~ 90%, non-condensing
• Storage Temperature:
  • -4°F to ~ 158°F (-20°C ~ +70°C)
  • 10% ~ 90%, non-condensing
• Maximum BTU: 5.45 BTU/hr

• Rack Units/Wall Box: 1U
• Height: 26mm/1.1in
• Width: 93.2mm/3.67in
• Depth: 138.7mm/5.47in
• Weight: 0.4kg/0.88lbs

• Safety and Emission: CE | FCC | RoHS
