EXP-CON-DAC

WyreStorm Essentials™ Digital to Analog Audio Converter

The WyreStorm Essentials EXP-CON-DAC is a digital to analog audio converter capable of decoding connected S/PDIF coaxial or TOSLINK digital audio sources to standard analog stereo with inputs selectable via onboard input select switch.

COMPACT DESIGN
WyreStorm Express converters pack a big punch in features, wrapped in a small package; allowing an integrator the freedom to install in the most discreet of locations.

AUDIO CONVERSION MADE EASY
If quick, reliable and cost-effective conversion of digital audio to analog is a requirement for your project, the EXP-CON-DAC is the perfect solution. Converting digital to analog audio from source devices such as Blu-Ray players and AppleTV, to feed legacy analog sound systems, without the need of expensive, bulky conversion equipment.

MULTIPLE DIGITAL INPUTS
The EXP-CON-DAC has the option to convert a digital signal with S/PDIF coaxial or TOSLINK optical inputs with a simple switch via input select, arming the integrator the ability to cover all digital input basis. A versatile, powerful tool to have in any integrators arsenal!

Features

• Converts S/PDIF digital audio (PCM) signals from compatible device to analog stereo audio
• Includes digital interpolation filter
• Accepts uncompressed digital audio input signals
• 2-channel LPCM (Linear Pulse Code Modulation) at 32, 44.1, 48, 96 & 192 KHz
• 24-bit S/PDIF incoming bitstream on left and right channels
• Optical & Digital Coaxial inputs
• Input Select switch
• LED Power indication
• Compact design
• Supports audio signals up to 24-bit with sampling rates up to 192 kHz
• Low-latency Digital Filtering
• Dynamic Range: 106 dB A-wt
• THD+N (Total harmonic distortion plus noise) rating: -93dB

SPECIFICATIONS

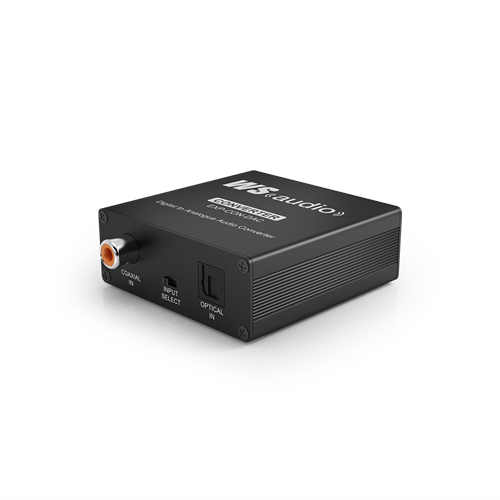

• Inputs:
  • 1x Coaxial In: S/PDIF Coaxial Digital
  • 1x Optical In: TOSLINK (Digital Optical)

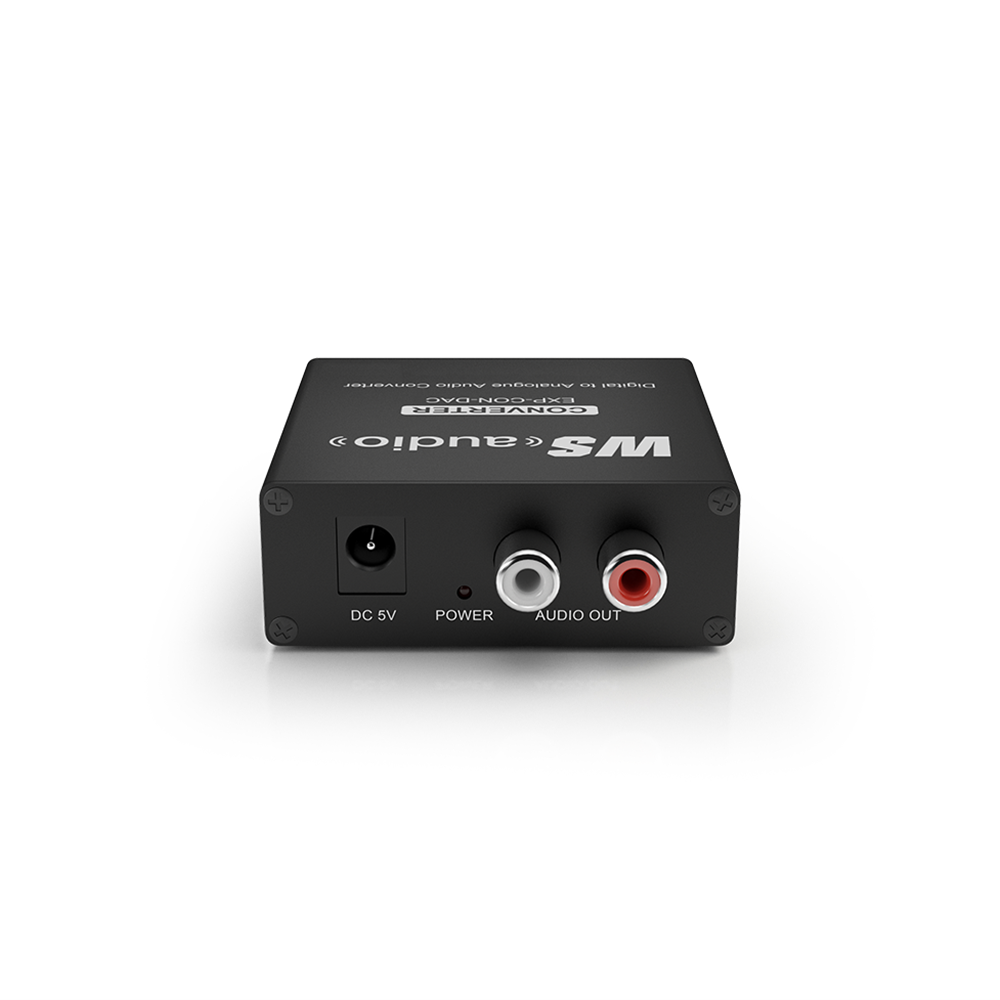

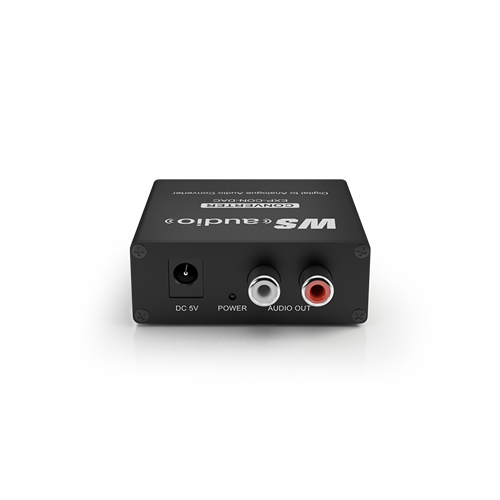

• Outputs: 1x Audio Out: RCA Male Stereo (L/R)
• Audio Formats: 2ch PCM (24bit/192kHz max)
• Output Impedance: 500Ω
• Output Voltage: 1.8V RMS @ Max Input (0dBFS)
• Frequency Response: 20Hz~20kHz <+/-0.5dB
• Signal to Noise Ratio: > 90dB (20Hz~ 20kHz)
• Distortion: <0.001% @ 1kHz at 2V RMS

• Power Supply: 5V DC 1A
• Max Power Consumption: 1W

• Operating Temperature:
  • 32°F ~ 113°F (0°C ~ 45°C)
  • 10% ~ 90%, non-condensing
• StorageTemperature:
  • -4°F to ~ 158°F (-20°C ~ +70°C)
  • 10% ~ 90%, non-condensing
• Maximum BTU: 3.4 BTU/hr

• Rack Units/Wall Box: <1U
• Height: 24mm/0.95in
• Width: 64mm/2.52in
• Depth: 64mm/2.52in
• Weight: 0.86kg/1.89lbs

• Safety and Emission: CE | FCC | RoHS

• What's included?
  • 1 x WyreStorm EXP-CON-DAC Analog audio converter
  • 1 x Universal 5V DC/1A power supply
