Vocal and instrument processors

Radial SB5W - Wall-mount stereo DI, passive fits in single gang receptacle

Product Code: RA-SB-5W

Brand
Radial Engineering
RRP $359.00
*Recommended Retail Price may not be a true representation of the market price

Unit of Measure
EACH


3 Year
Features
UPC EAN 6 761010 4125 1 Radial Part No. R800 0155
Technical Specifications
Brands Radial Engineering
Product type DI boxes
  • Details
  • Downloads
  • Ordering

Passive Wall-mountable Stereo Direct Box

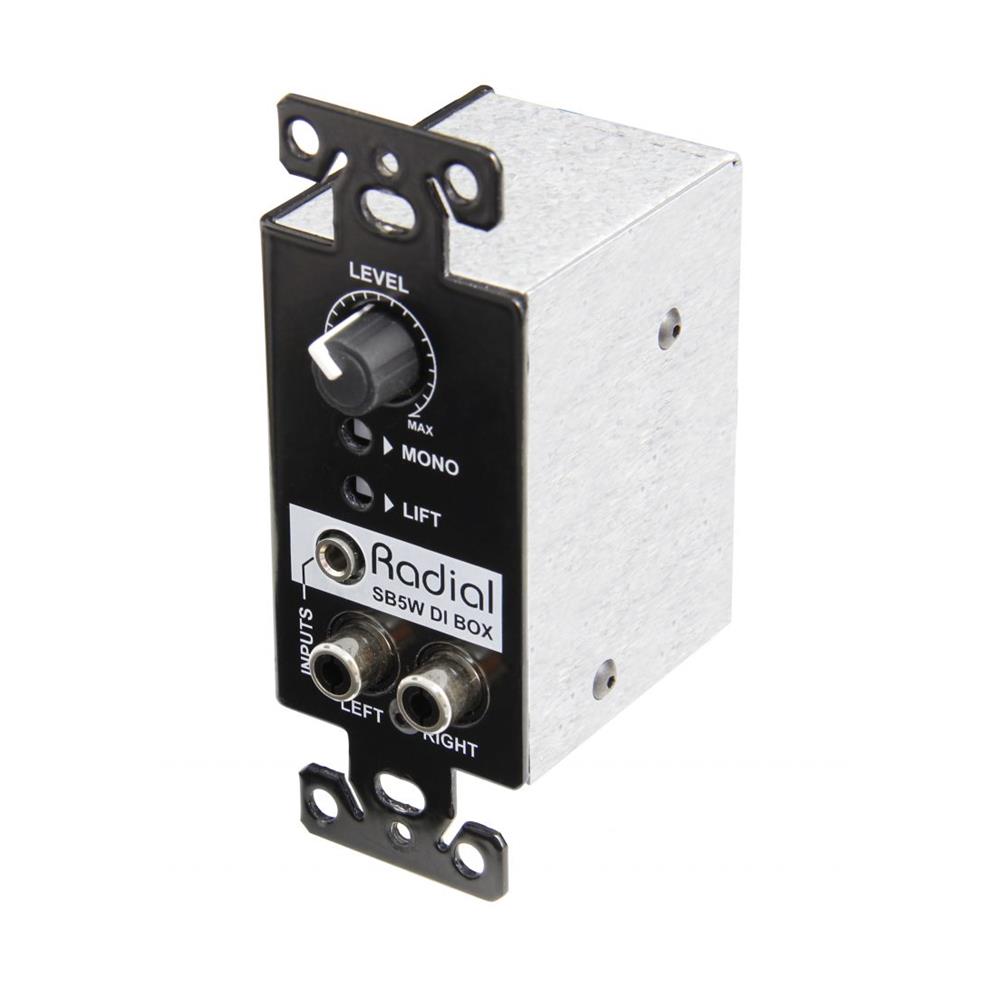

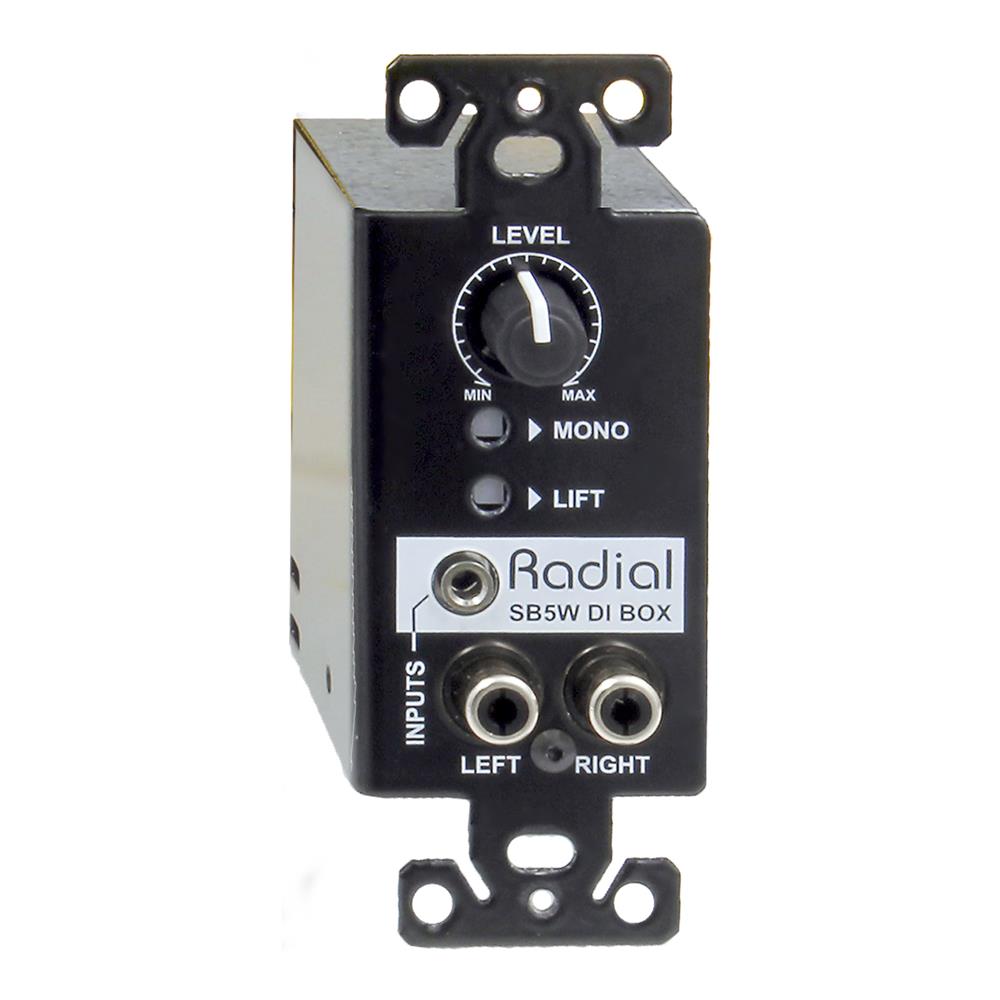

The StageBug SB5W is a passive stereo direct box made to fit in a standard North American single-gang electrical wall plate, providing AV integrators with an effective means of connecting an unbalanced audio source such as a laptop, smartphone, or tablet to a balanced audio system.

Professional sound for installation

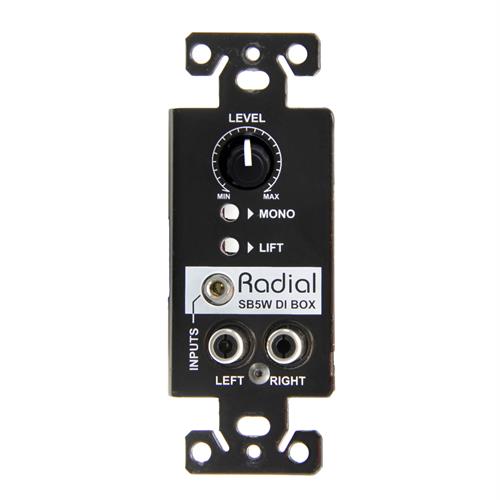

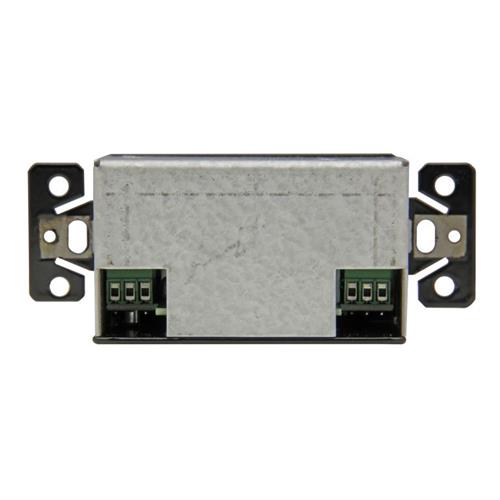

The StageBug SB5W provides a permanently mounted interface to connect consumer audio devices with installed pro audio systems. Front panel 3.5mm TRS and RCA connectors are provided for any stereo source and a fully variable level control makes volume adjustments easy. Inside, the SB5W employs dual transformers that convert the inputs to a low impedance balanced signal, and eliminate hum and buzz caused by ground loops. Set & forget ground lift and mono switches are also included to further reduce noise and to sum the left and right channels together if needed. The outputs of the SB5W feature screw terminals with tie down points for tie-wraps to make installation fast, efficient and permanent.

  • 5mm and RCA inputs with level control
  • Passive design, no power needed
  • Contractor-friendly screw terminal outputs
  • Transformer isolation to eliminate noise

StageBug SB-5W Applications

Using the SB5W with a Laptop

Connect the mini TRS audio jack from your laptop directly to the 3.5mm input on the SB5W and it automatically converts the unbalanced signal to a lo-Z balanced line to feed the PA system up to 100 meters away.

Using the SB5W with a tablet

No need to convert from digital to analog! Simply connect the headphone out from your tablet or cell phone to the SB5W and let it do the work. Adjust the volume using the convenient front panel level control and sum to mono if need be.

Using the SB5W with a CD player

Connect the line level output from your CD player or hi-fi using the convenient RCA jacks to feed the PA system at the far end of the room. Adjust the volume level from the source, the SB5W wall plate or the mixer channel.

Product Documents

No documents available
