Speakers

VP66 6in Rectangular Visual Performance Sonance

Product Code: SO-93004

Brand
Sonance
RRP $1,199.00


Unit of Measure
EACH



Lifetime
Technical Specifications
Brands Sonance
Series Visual Performance
Size 6.5"
Speaker Type In-ceiling
Speaker Type In-wall
  • Details
  • Downloads

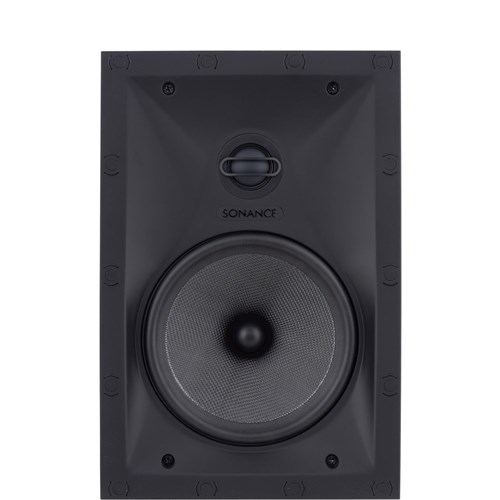

Sonance VP66 Rectangular In-Ceiling / In-Wall Speakers - Pair

Features

  • Combines elegant, modern style with outstanding audio performance.
  • Pivoting tweeter allows speakers to be placed where they look the best while still sounding the best.
  • Tweeter level switch on VP68 allows high frequencies to be adjusted to suit the install environment.
  • Four performance levels to accommodate any ear or budget.

Specifications

Tweeter 1" (25mm) powder-coated aluminum dome, ferrofluid-cooled, pivoting, in acoustic back chamber
Woofer 6 1/2" (165mm) textured polypropylene cone with a rubber surround, pivoting
Frequency Response 43Hz - 20kHz ±3dB
Impedance 8 ohms nominal; 6 ohms minimum
Power Handling 5 watts minimum; 140 watts maximum
Sensitivity 90dB SPL (2.83V/1 meter)
Dimensions (W x H) 8 3/8" (213mm) x 12 1/4" (311mm)
Speaker Depth 3 1/2" (89mm)
Cut-Out Dimensions 6 15/16" (176mm) x 10 3/4" (273mm)
Grille Material Perforated Steel
Shipping Weight 10 lbs (4.5kg) pair

Product Documents

No documents available
