Canare

This is a Special Order Item

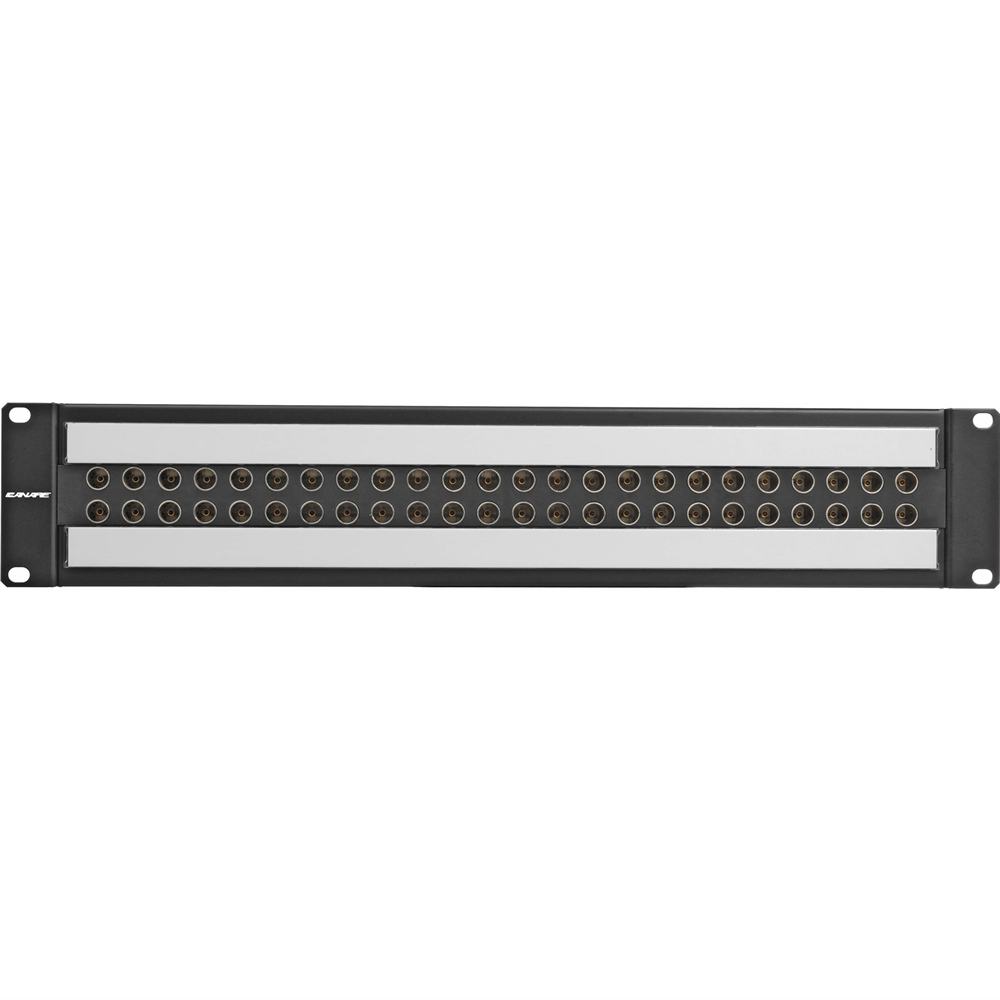

24 x DVJB-W video patch bay 2U

Product Code: CA-24DV-2U

Brand
Canare
RRP $2,080.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Canare
Product type Patchbay
  • Details
  • Downloads
  • Ordering
Choose our 2x26 one rack unit (1RU), 2x26 two rack unit (2RU) or our ultra high density 6x26 four rack unit (4RU) Jack Panels.

?  Serial Digital Video (3G-SDI, HD-SDI, SD-SDI).
?  Analog Video.
?  Studio.
?  OB Van.
?  Broadband Telcom.
?  DC to 3.0GHz greater than 10dB Return Loss.
?  Canare Original "Rotary" Switch.
?  1RU, 2RU or 4RU.
?  Beryllium Copper, Gold Plated Center Contacts.
?  Light Weight Alloy Body.
?  Easy Front Mount Assembly.

75ohm Digital Video Patchbay
1RU, 2RU, 4RU Available
DVJB-W, DVJB-S Loaded
Pack Qty: 1 pc
NOMINAL SPECIFICATIONS (Normal Through)
Model Panel
Size

 Loaded
Video Jacks
(Qty)		 Row
Config.		 Patch
Points		 External
Dimensions
WxHxD
in.
(mm)
20DV EIA 1RU
  		 DVJB-W
(20)		 2x20 40 19x1.7x6.4
(483x44x164)
24DV EIA 1RU DVJB-W
(24)		 2x24 48 19x1.7x3.3
(483x44x85)
26DV EIA 1RU DVJB-W
(26)		 2x26 52 19x1.7x3.3
(483x44x85)
24DV-2U EIA 2RU DVJB-W
(24)		 2x24 48 19x3.5x3.3
(483x88x85)
26DV-2U EIA 2RU DVJB-W
(26)		 2x26 52 19x3.5x3.3
(483x88x85)
244U-DVJBW EIA 4RU
(VJ2-E24-4U)		 DVJB-W
(72)		 6x24 144 19x7x3.3
(483x176x85)
264U-DVJBW EIA 4RU
(VJ2-E26-4U)		 DVJB-W
(78)		 6x26 156 19x7x3.3
(483x176x85)

NOMINAL SPECIFICATIONS (Straight Through)
Model Panel
Size

 Loaded
Video Jacks
(Qty)		 Row
Config.		 Patch
Points		 External
Dimensions
WxHxD
in.
(mm)
20DVS EIA 1RU
    		 DVJB-S
(20)		 2x20 40 19x1.7x6.4
(483x44x164)
24DVS EIA 1RU

 DVJB-S
(24)		 2x24 48 19x1.7x3.3
(483x44x85)
26DVS EIA 1RU DVJB-S
(26)		 2x26 52 19x1.7x3.3
(483x44x85)
24DVS-2U EIA 2RU

 DVJB-S
(24)		 2x24 48 19x3.5x3.3
(483x88x85)
26DVS-2U EIA 2RU

 DVJB-S
(26)		 2x26 52 19x3.5x3.3
(483x88x85)
244U-DVJBS EIA 4RU
(VJ2-E24-4U)		 DVJB-S
(72)		 6x24 144 19x7x3.3
(483x176x85)
264U-DVJBS EIA 4RU
(VJ2-E26-4U)		 DVJB-S
(78)		 6x26 156 19x7x3.3
(483x176x85)



NOMINAL SPECIFICATIONS
Model Circuit Return Loss Isolation
BNC to BNC: Normal Through BNC to Video: Patch Through BNC to Self Termination
DVJB-W Normal
Through		 26dB or greater (~750MHz) 35dB or greater (~1.5GHz)
20dB or greater (~3.0GHz)
20dB or greater (~2.4GHz)
10dB or greater (~3.0GHz)
DVJB-S Straight
Through		 N/A 26dB or greater (~750MHz) 26dB or greater (~750MHz) 35dB or greater (~1.5GHz)
20dB or greater (~3.0GHz)
20dB or greater (~2.4GHz) 20dB or greater (~1.5GHz)
10dB or greater (~3.0GHz) 10dB or greater (~3.0GHz)

Normal Through

Patch Through

Isolation


DVJB Series Dimensions



Canare Dual Video Jack Signal Routing Chart


W Series (Nomal Through)
BNC Port:
Signal thru as Arrowed		 Video Port:
No Patch

Signal routes between top and bottom BNC without the use of Video plugs.

BNC Port:
Lower Terminated		 Video Port:
Patch Upper

Inserting a Video Patch Cord into front "upper" port automatically terminates signal path into the lower 75 ohm load.
BNC Port:
Upper Terminated		 Video Port:
Patch Lower

Inserting a Video Patch Cord into front "lower" port automatically terminates signal path into the upper 75 ohm load.
BNC Port:
Signal thru as Arrowed		 Video Port:
Patch Both

Inserting Video Patch Cords into both front ports inputs and/or outputs signal.

S Series (Straight Through)
BNC Port:
Both Signal Terminated		 Video Port:
No Patch

Two independent single jacks in a dual housing.


BNC Port:
Lower Terminated		 Video Port:
Patch Upper

Inserting a Video Patch Cord into front "upper" port breaks the 75 ohm termination for straight signal pass through.
BNC Port:
Upper Terminated		 Video Port:
Patch Lower

Inserting a Video Patch Cord into front "lower" port breaks the 75 ohm termination for straight signal pass through.
BNC Port:
Signal thru as Arrowed		 Video Port:
Patch Both

Inserting Video Patch Cords into both front ports inputs and/or outputs signal.
