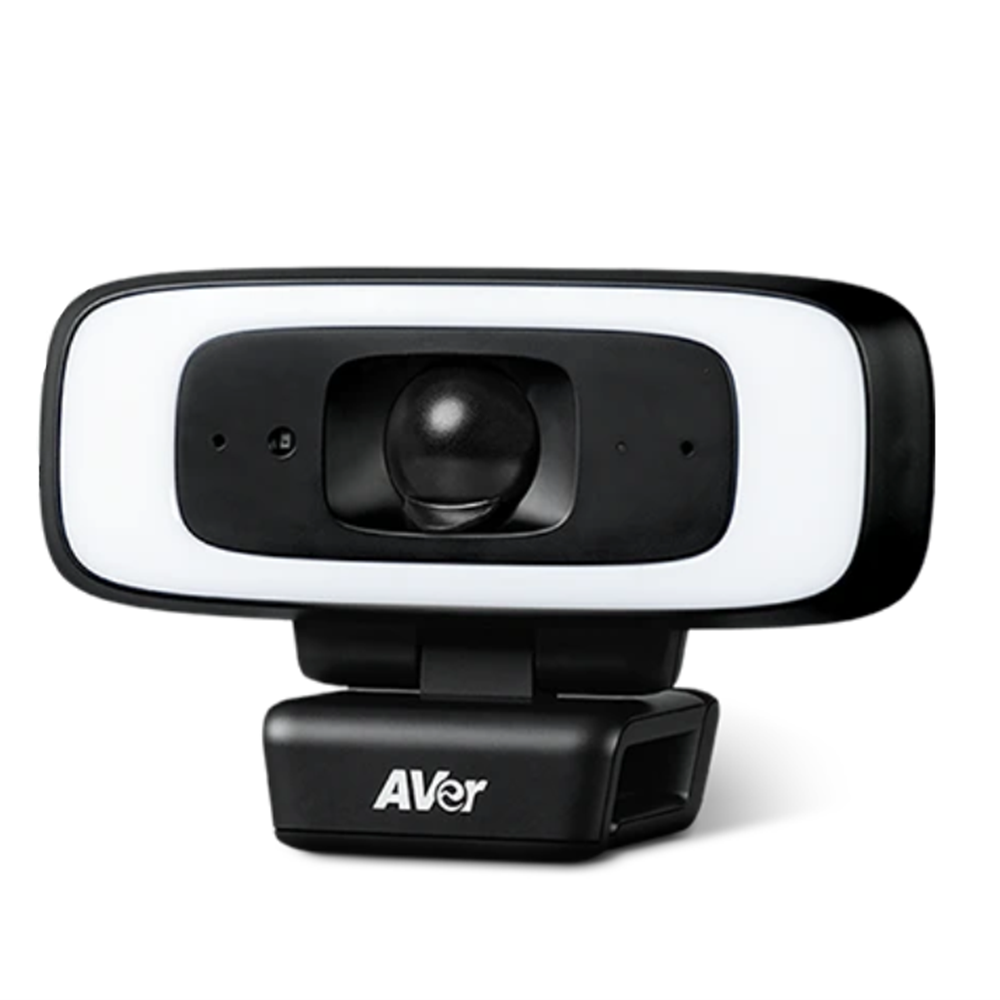

CAM130

Compact 4K Camera Perfect for Remote Work

Take your meeting anywhere with this compact, 4K conference camera with dynamic professional lighting. The CAM130 packs a full suite of features into a simple, portable device. Perfect for traveling and remote team members.

Crystal clear video
High-quality sensors and multi-lens glass produce sharp 4K video with brilliant color. Dual fields of view allow you to switch between 90° or 120° FOV for proper room coverage of any workspace.

Professional lighting
Brighten your life with revolutionary & intelligent fill-in lighting. Declutter your desk and eliminate additional bulky light rings or light cubes while allowing for the perfect amount of professional lighting to illuminate your workspace.

Safer meetings with improved AI
Enjoy safe and efficient meetings with improved SmartFrame and people counting. SmartFrame Technology ensures that everyone is visible on the screen, even with masks on.

Compact design
The CAM130 is a quality webcam for professional use. Compact and versatile, it easily mounts on top of a 13-inch monitor, on a tripod, or even upside down to fit a variety of meeting spaces.

Specification

• Camera
  • 4K optical lens, 120° FOV, up to 4X zoom via ePTZ
  • Sony 4K sensor: ultra-crystal-clear image in any lighting
  • Frame rates: (16:9) 4K, 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
  • Intelligent fill light: automatically adjusts lighting levels to make you look energetic in a dim environment*
  • SmartFrame: automatically adjusts FOV to frame all participants onscreen
  • Mirror, flip, AE, white balance: auto/manual override via PTZApp2
  • Backlight compensation and 3D noise-reduction technology for optimizing light balance in different conditions
  • Minimum focus distance: 60 cm
  • People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
  • 10 camera presets (through remote control and AVer software)
  • Standard tripod screw holes
  • *For best lighting results, sit within 1 meter away from the camera
• Microphone
  • 2 unidirectional microphones
  • Frequency response: 100–12K Hz
  • Sensitivity: -37 dB
• Connectivity
  • YUV, YUY2, MJPEG, NV12
  • Network video compress format: H.264
  • Network protocol: RTSP, RTMP
• Connectivity
  • USB type-C 3.1 connector, backward compatible with USB 2.0
  • DC jack for power adapter
• Video Format
  • YUV, YUY2, MJPEG
• USB
  • 3.1 Gen 1, backward compatible with USB 2.0
  • UVC 1.1 (USB video), UAC 1.0 (USB audio)
• Control
  • IR remote control
  • UVC/UVA plug-and-play
  • PTZApp 2

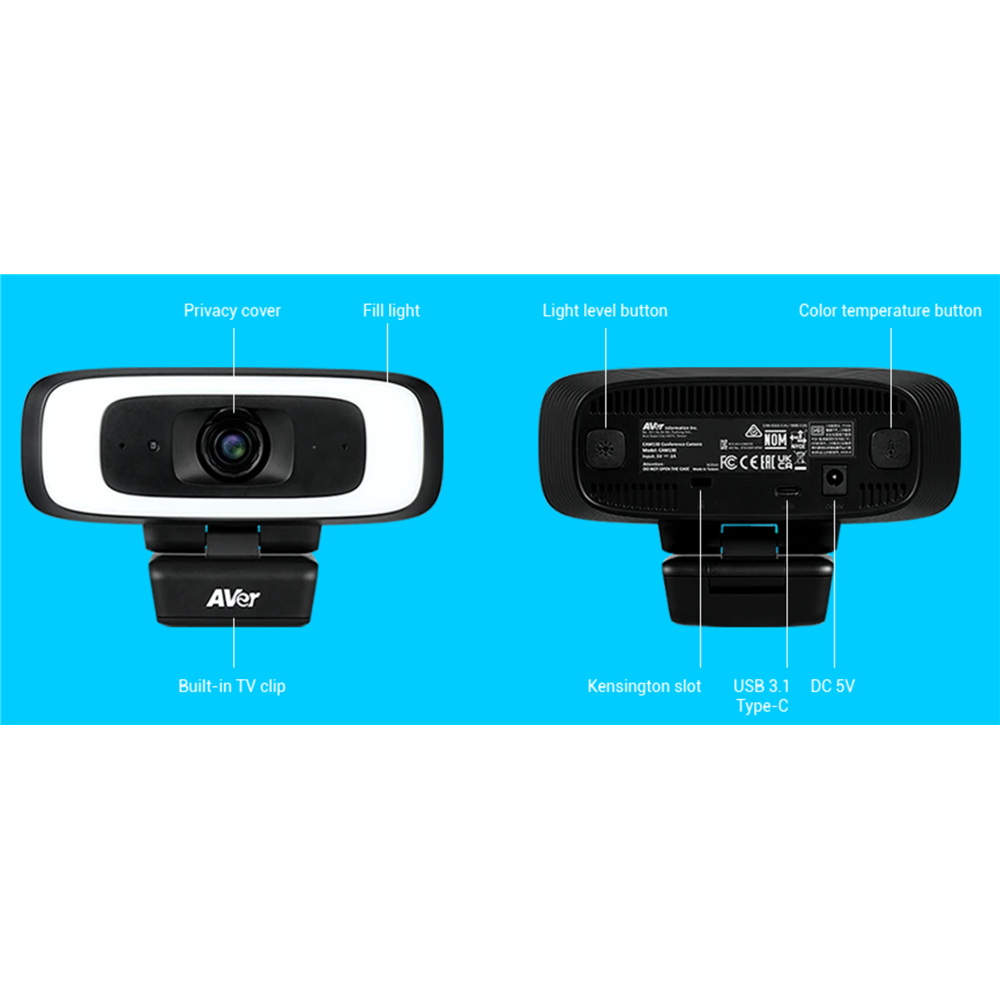

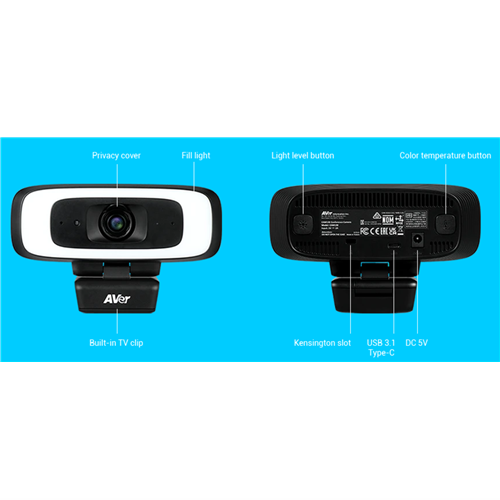

• Security and Mount
  • Built-in TV clip
  • Kensington slot
  • 1/4” tripod mounting screw
• System Requirements
  • Windows® 7/10
  • MacOS X 10.7 or later
  • Google Chromebook™ version 29.0.1547.70
• Hardware Specs
  • 3.2 GHz Intel® Core™ i5-4460 processor
  • 4 GB RAM or more
  • USB 3.1 port, backward compatible with USB 2.0
• Power supply
  • AC 100V–240V, 50/60 Hz
  • Consumption: 5V/2A

• EZManager 2: Camera Central Management Software
  • Remotely group FW/SW upgrades, control the camera, and manage settings
• PTZApp 2: Camera Settings Software
  • View live video, people-counting numbers, and meeting-interval information
  • Enable Skype for Business far-end control
  • Upgrade firmware automatically or manually
  • Control the camera
  • Set parameters and adjust the camera image
  • Diagnose operating status
• EZLive: Broadcasting Software
  • Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording

• Environmental data
  • Operation temperature: 0 ~ 40°C
  • Operation humidity: 20 ~ 80%
  • Storage temperature: -20 ~ 60°C
  • Storage humidity: 20 ~ 80%
• Dimensions
  • Package dimensions: 217(L) x 155(W) x 118(H) mm
  • Package weight: 0.729 kg
  • Camera: 160(L) x 37(H) x 60(D) mm/ 0.282 kg
  • Remote control: 149.72(L) x 42.3(W) x 19.29(H) mm/50g
• Package contents
  • CAM130 unit
  • Power cable (10 ft/3 m)
  • USB 3.1 type-C to type-A cable (6 ft/1.8 m)
  • QR code card
• Optional Accessories
  • Whiteboard mount kit
  • Table-top tripod stand
  • Remote control (SKU: COMLREMOT - also compatible with VB130)
• Warranty
  • Camera: 3 years
  • Accessories: 1 year
• Compatible Applications
  • ZOOM, Microsoft® Teams, Skype™ for Business, Skype™, Google Hangouts, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco WebEx®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit

*For 4K UHD support, please check system/hardware requirements with your software application provider.
**Specifications may vary depending on countries and are subject to change without notice.
