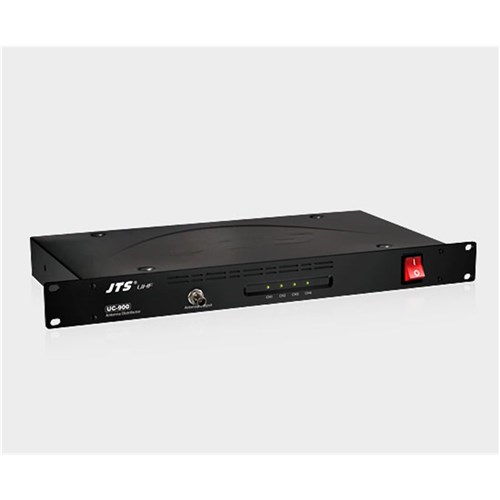

UC-900 antenna combiner Use with IEM transmitters 4 x 12V/1A power outputs

Product Code: JP-UC900

Brand
JTS
RRP $749.00

Unit of Measure
EACH



1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads

UC-900


This 4 inputs and 1 output antenna combiner is compatible with transmitters like SIEM-2T, TG-10STX, TG-10GSTX and other transmitters with BNC antenna connecters.

It is designed to improve RF performance by reducing intermodulation distortion. This product will also help to save investment in antenna systems. * Provides 4 DC outputs each of 12 V x 800 mA for 4 sets of transmitters.



SPECIFICATIONS

Frequency Range

  • 470~970 Mhz

Full System Gain

  • 0dB(±2dB)

VSWR Input / Output

  • 1.5:1

RF Input Power

  • +20dBm (100mW)

Input Signal Indicator Threshold

  • +5dBm

Power Consumption

  • 6W

Input/Output Connectors

  • BNC female (4 input at back,1 output at front)
  • DC female (4 input, Maximum Power OutputLimit at 12V/1A)

Input Voltage

  • 100~240VAC MAX2A 50/60Hz

Dimensions

  • 480 (W) * 45 (H) * 260 (D)

Wieght

  • 2.3kg
