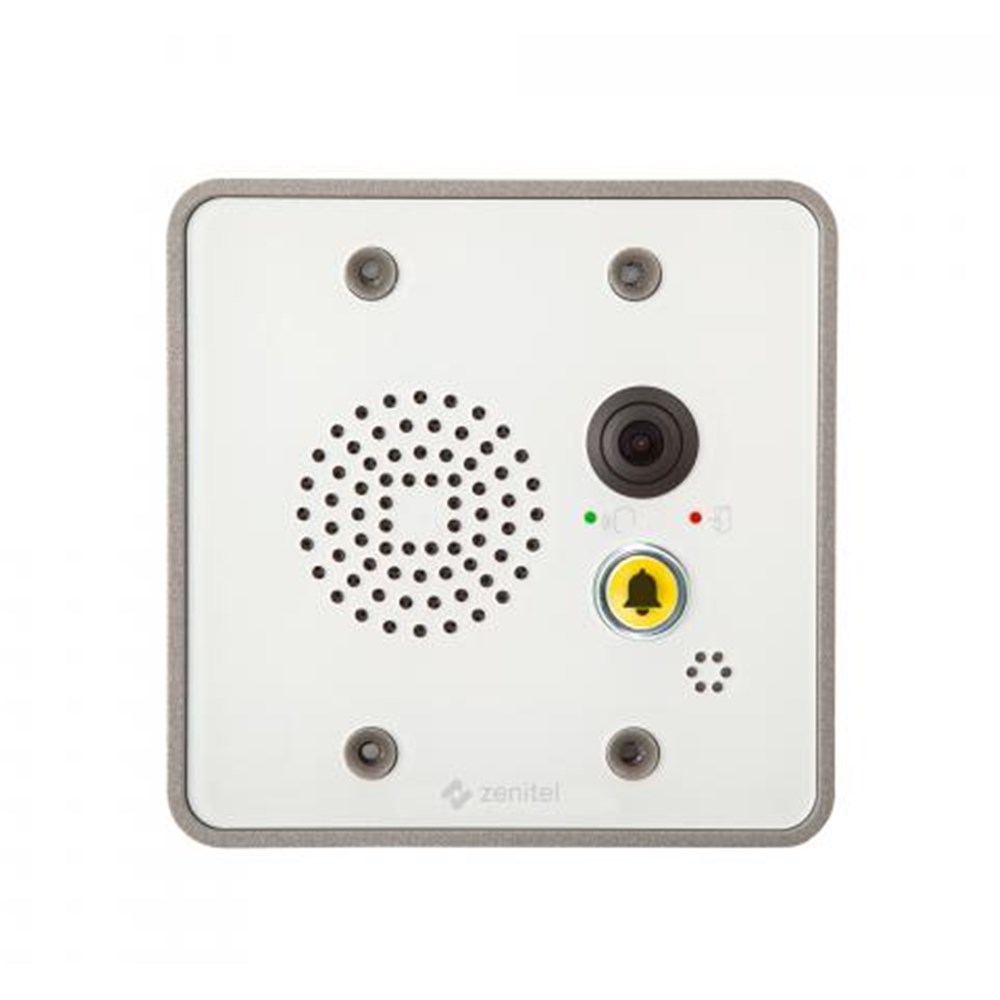

  • TMIV-1+. Turbine mini intercom with video.

TMIV-1+. Turbine mini intercom with video.

Product Code: ZE-TMIV-1+

Brand
Zenitel
RRP: POA


Unit of Measure
EACH


2 Year
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Ordering

The TMIV-1+ Mini Video Intercom combines unrivaled high-quality audio with exceptional video, providing users a communication solution for any situation and allowing seamless integration with other security systems. The TMIV-1+ is designed for indoor and outdoor use and is typically used as a communication, information or emergency point and door station, and connects directly to the IP network. This makes it easy to deploy anywhere and at any distance.

The TMIV-1+ Video Intercom comes with many features, some of which include: HD voice quality, Open Duplex, Active Noise Cancellation, MEMS microphone, a 10W Class D amplifier, wide FoV HD Video, Digital PTZ, and support for H.264 and MJPEG. These features, in conjunction with Zenitel's decades-long experience with acoustic technology, are just a few of the many factors that contribute to our superior audio and video quality.

  • Powerful audio technology including high sound pressure, automatic volume gain control, and active noise echo canceling
  • HD video up to 1080p resolution
  • Wide angle lens
  • ONVIF Conformant
  • Background noise cancellation
  • Built to last with robust die-cast aluminum frame
  • Supports wide set of IP and networking standards
  • White thermoplastic front plate with one button
  • Ideal for Building Security and Public Environments
AUDIO
  • SPL peak power in half and open duplex    90 dB
  • Noise cancelling - suppression of musical noise    Yes
  • Noise cancelling - suppression of static noise    Yes
  • Codecs    G.711, G.722, G.729
  • Frequency range, G.722 Codec    200 Hz – 7000 Hz
  • Audio technology    Modes: Full open duplex, switched open duplex,
  • Adaptive jitter buffer
  • Custom Ringing Tone
  • Audio Mixing – Conversation and Group Call
  • Sound Level Detection / scream alarm (in AlphaCom mode)
  • Automatic gain control (microphone)
  • Internal speaker amplifier    10 W Class D
  • Internal speaker    1 W
  • Microphone technology    Digital MEMS, omnidirectional microphone
  • Automatic Volume Control (AVC)    Yes
  • Acoustic Echo Cancellation (AEC)    Yes
VIDEO
  • Image Sensor    1/2.5" RGB CMOS
  • Lens    F 2.0, fixed iris
  • Light Sensitivity    Down to 1 lux
  • Resolution    240 / 480p / 960x720p / 1440x1080p *
  • Frame Rate    Up to 30 FPS in 1440x1080p **
  • Supported Codecs    MJPEG, H.264 ***
  • Digital PTZ    Yes
  • Digital Zoom    Up to 4x
  • Field of View    Configurable up to 180 degrees horizontally and vertically
  • Parallel Video Streams    6 (1x SIP H.264, 2x HTTP MJPEG, 3x RTSP sessions)
  • * MJPEG does not support 720p and 1080p resolution.
  • ** 30 FPS is only supported in H.264 mode, while MJPEG is limited to 10 FPS.
  • *** AlphaCom mode supports only RTSP H.264 mode, while other modes support SIP H.264.
HARDWARE
  • Ethernet connector    1 x RJ45
  • All other connectors    Tool less, spring loaded, vibration proof terminals
  • General inputs and outputs    6 (configurable)
  • Outputs    12mA as LED drivers
  • Change-over relay (NO+NC+COM)    SELV
  • Power options    PoE, PoE+, external power supply
  • PoE (power over Ethernet)    IEEE 802.3af standard, IEEE 802.3at
  • External power supply    24VDC - 48VDC
  • Power consumption    Idle 3.5W, max 12W (depending on volume)
  • Audio line out / Induction loop signal    0 dBV
  • Button backlight    LED
  • Call indication    Icons/colors for hearing impaired
  • PROCESSOR/CHIPSET
  • CPU cores    4 x Cortex-A53
  • CPU clock speed    1.6 GHz
  • RAM    512 MB LPDDR4
  • Flash    1 GB
  • Video encoder    MJPEG, H.264
  • Dual image    Yes
CONSTRUCTION
  • Dimensions (HxWxD)    117 x 117 x 43.5 mm
  • Dimensions after flush mount    117 x 117 x 8.5 mm
  • Weight    0.3 kg
  • Button material    3 mm / 0.12” Polycarbonate (transparent)
  • Faceplate material    2 mm / 0.12” PMMA, colour printed on back side
  • Base / frame material    3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted
  • Electronics cover material    Polycarbonate (translucent)
  • Loudspeaker poke protection, large diameter objects    Thermoplastic faceplate with machined grille
  • Loudspeaker poke protection, small diameter objects    Stainless steel mesh, acoustically transparent
NETWORKING & PROTOCOLS
  • Protocols    IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, RTSP, RTCP, SRTP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
  • LAN protocols    Power over Ethernet (IEEE 802.3 a-f), Power over Ethernet (IEEE 802.3at), Network Access Control (IEEE 802.1x)
  • Management and operation    HTTP/HTTPS (Web configuration) DHCP and static IP. Remote automatic software upgrade. Centralized monitoring.
  • Advanced supervision functions    E.g. network test, tone test, status reports
  • SIP Support    RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme
  • DTMF Support    RFC 2833, 2976 (SIP info)
  • Integration and API    AlphaCom, Scripting (plugins)
ENVIRONMENT & COMPLIANCES
  • Ingress Protection Rating    IP44*
  • UV Resistant    YES
  • Operating Temperature Range    -25 to 55°C / -13 to 131°F
  • Storage Temperature Range    -25 to 55°C / -13 to 141 °F
  • Relative Humidity    < 95% non-condensing
  • EMC    CE and FCC part 15
  • Certification    UL 62368-1, EN 62368-1
  • Compliances    EN 61000-6-1, EN 61000-6-3
  • *If mounted according to guidelines in the mounting manual
CERTIFICATION
  • ONVIF Conformant    Profile S
  • Other specifications
  • Warranty    2 Years standard warranty, extendible up to total of 5 years (additional fee)
