  • TCIS-1. Turbine compact IP audio intercom station.

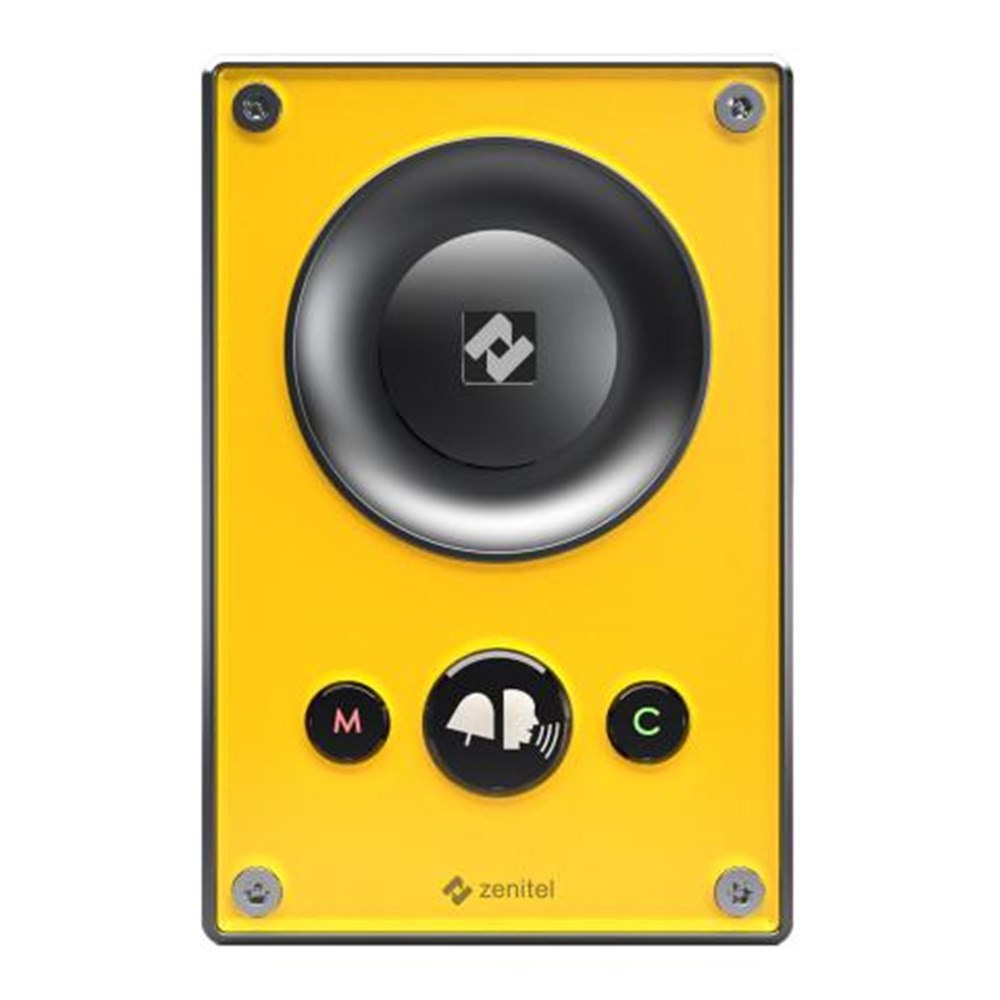

TCIS-1. Turbine compact IP audio intercom station.

Product Code: ZE-TCIS-1

Brand
Zenitel
RRP: POA


Unit of Measure
EACH


2 Year
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Ordering

This intercom station is engineered with advanced audio technologies to ensure optimal intelligibility in challenging environments. It features wideband HD voice for enhanced clarity, Open Duplex for natural two-way communication, and integrated noise suppression and acoustic echo cancellation algorithms for clean audio in noisy settings. The unit incorporates a high-sensitivity MEMS microphone, a 10W Class D amplifier for high-output performance, and a custom-engineered speaker grille optimized for acoustic dispersion and protection. Backed by over 70 years of expertise in audio and communication systems, this platform delivers consistently superior sound quality across diverse applications.

  • Durable yellow thermoplastic front plate with one call button, plus M (Microphone Off) and C (Cancel) buttons
  • Advanced Audio Technology - High sound pressure levels, automatic volume gain control, and active noise and echo cancellation for superior clarity.
  • Weather-Resistant (IP66) & Robust (IK08)
  • ONVIF Certified - for seamless video and device integration
  • Seamless Integration - Fully compatible with Zenitel Connect Pro, ICX-AlphaCom, IC-EDGE, and SIP-based systems.
AUDIO
  • Max SPL @ 0.5m    105 dB
  • Codecs    G.711, G.722, G.729
  • Frequency range, G.722 Codec    200 Hz – 7000 Hz
  • Audio technology    Full open duplex, switched open duplex
  • Sound level detection (scream alarm)
  • Automatic gain control
  • Automatic volume control (AVC)
  • Acoustic Echo Cancellation (AEC)
  • Noise cancelling
  • Internal speaker amplifier    10 W class D
  • Internal speaker    10 W
  • Microphone technology    Digital MEMS, omnidirectional microphone
  • NETWORKING AND PROTOCOLS
  • Application Protocols    SIP, SIPS, HTTP, HTTPS, TFTP, RTP, SRTP, RTCP, RTSP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
  • IP Versions    IPv4 & IPv6
  • LAN protocols    Power over Ethernet (IEEE 802.3 a-f), Network Access Control (IEEE 802.1x)
  • Advanced supervision functions    Keep alive test, tone test, status reports
  • SIP Support    RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme
  • DTMF Support    RFC 2833, 2976 (SIP info)
  • Integration and API    Connected to ICX-AlphaCom through AlphaCom protocol ACDP
  • Connected to Zenitel Connect Pro though Zenitel Link
  • ONVIF
HARDWARE
  • Ethernet connector    1 x RJ 45
  • General inputs and outputs    6 (configurable)
  • Outputs    12mA as LED drivers
  • Change-over relay (NO+NC+COM)    SELV
  • Power options    PoE or 24 VDC (16 – 48 V)
  • PoE (power over Ethernet)    IEEE 802.3af standard
  • Power consumption    Idle 1.8W, max 12W (depending on volume)
  • Button backlight    LED
  • Call indication    Icons/colors for hearing impaired
  • CONSTRUCTION
  • Dimensions (HxWxD)    180 x 120 x 73 mm / 7.1” x 4.7” x 2.9”
  • Dimensions after flush mount    180 x 120 x 24 mm / 7.1” x 4.7” x 0.9”
  • Dimensions with on wall box    180 x 120 x 86 mm / 7.1” x 4.7” x 3.4”
  • Weight    0.8 kg / 1.8 lbs
  • Faceplate material    3 mm / 0.12” PMMA, colour printed on back side
  • Base / frame material    3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted
  • Electronics cover material    Polycarbonate (translucent)
  • Gasket material    Silicone rubber
  • Loudspeaker poke protection, small diameter objects    Stainless steel mesh, acoustically transparent
ENVIRONMENTAL COMPLIANCE
  • IP rating    IP66
  • IK rating    IK08
  • Operating temperature range    -40° to 70° C / -40° to 158 ° F
  • Storage temperature range    -40° to 70° C / -40° to 158 ° F
  • Relative humidity    < 95% not condensing
  • Corrosion    Salty mist, tested according to EN60945
  • Vibration    Tested according to EN60945
  • APPROVALS
  • EMC    EN 61000-6-1, EN 61000-6-3, FCC part 15
  • Safety    IEC 62368-1, IECEE CB
  • Sustainability    RoHS, REACH
