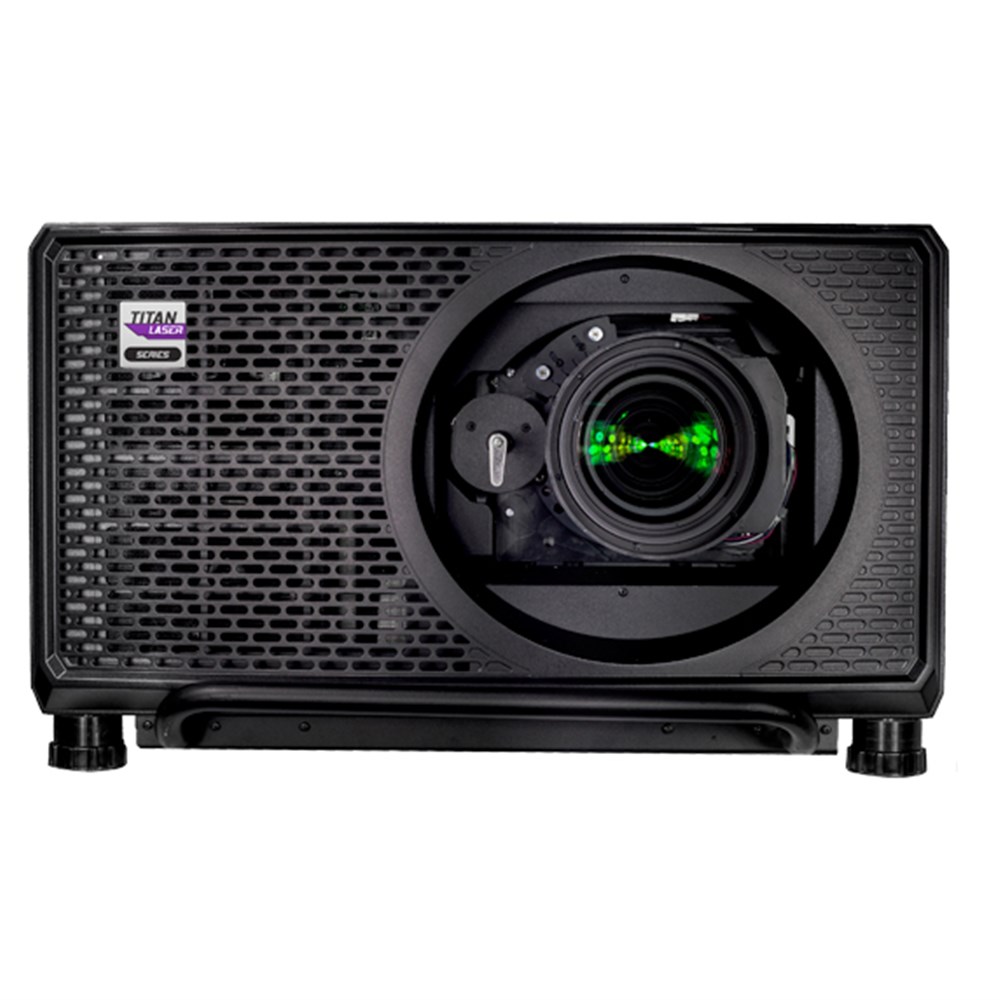

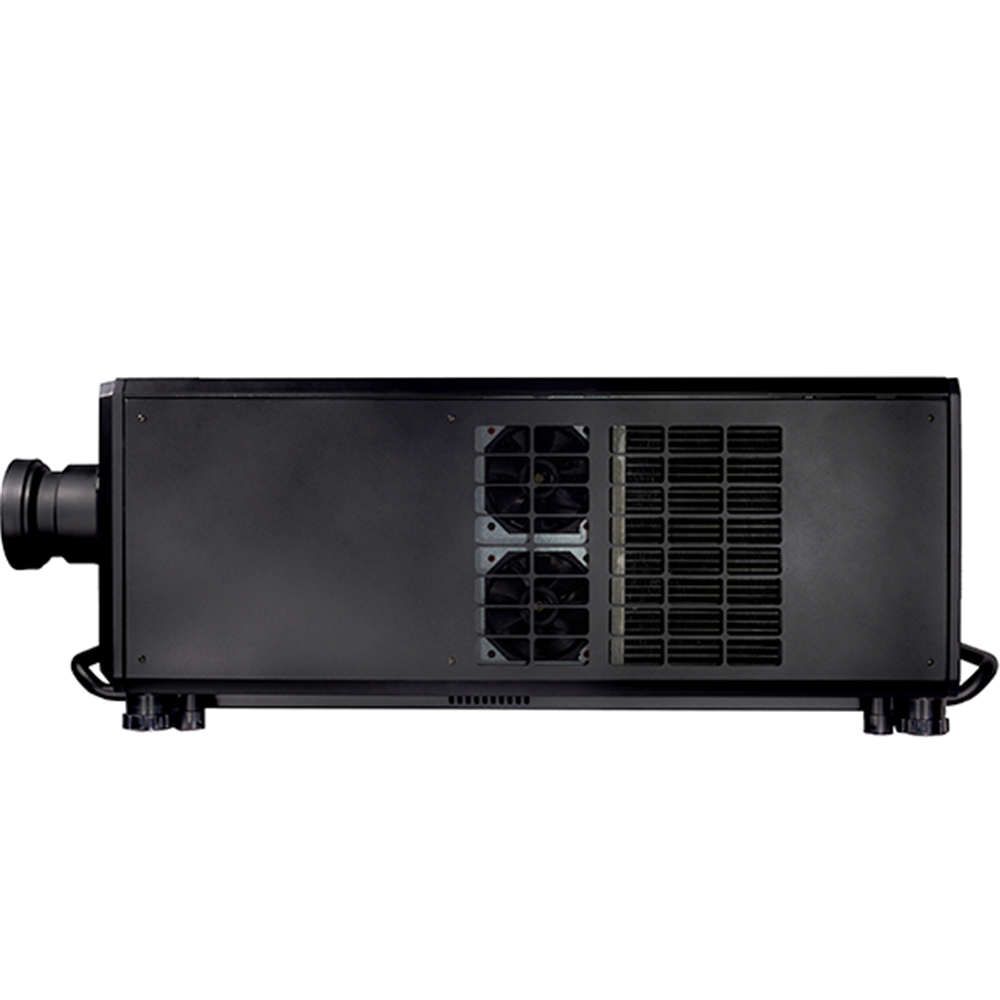

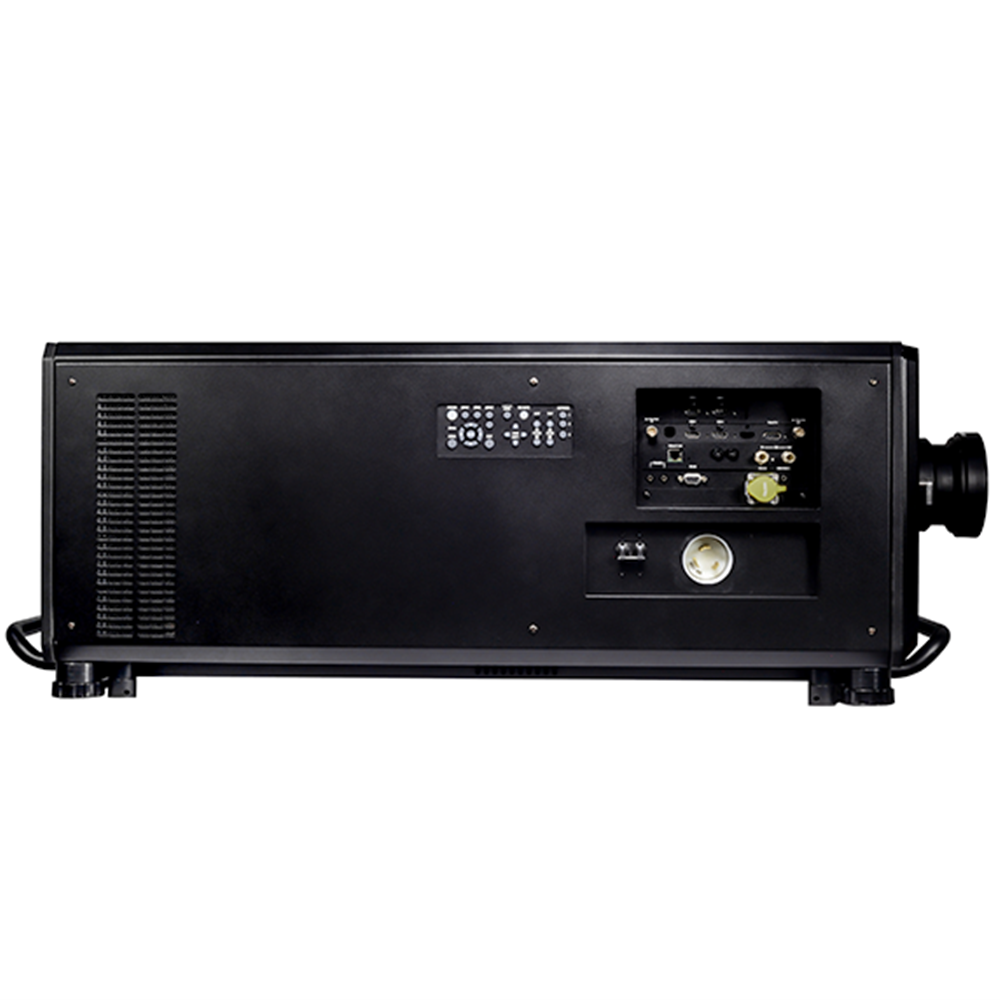

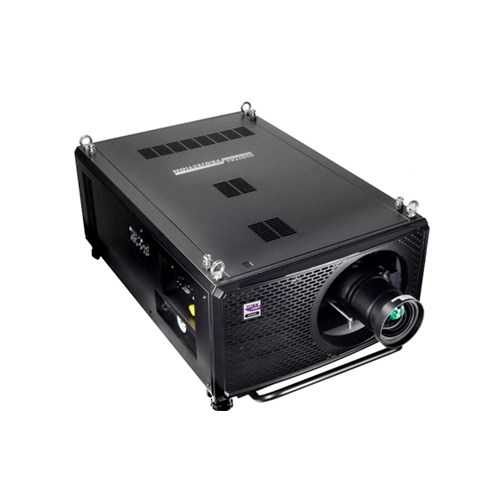

Titan Laser 33000 4K-UHD

31,000 ISO / 27,500 ANSI @ 4K-UHD. 34,000 ISO / 30,500 ANSI @ WUXGA Lumens | Contrast Ratio: 18,000:1 (Dynamic Black) / 2,000:1 Native | Part Number: 119-705

TITAN Laser – A Legend is Reborn! Unbelievably bright and powerful 3-Chip Laser Projector delivering with a surprisingly affordable price tag

The Titan Laser 37000 delivers up to 37,000 (WUXGA) or up to 31,000 (4K-UHD) Lumens from a relatively compact chassis, making it the ideal projector for the most demanding of large-venue applications. Where bright, pin sharp images are required there should be no compromise.

This class-leading 3-Chip DLP projector utilises the very latest in connectivity, including DisplayPort, HDMI 2.0 and HDBaseT. The advanced electronics also bring HDR processing to the large venue class of projectors, and features such as Constant Brightness Control and DMX Art-Net compatibility make it the idea solution for high profile events and fixed installations.

As would be expected for a projector in this class, the TITAN Laser comes with features such as Non-linear Warp, Geometry Correction, Edge Blending, Picture in Picture and much more as standard.

Users of the TITAN Laser  in live environments will also benefit from the real time clock for on/off automation; email alerts and PC based central control software. An optional lens adaptor allows a variety of non-Digital Projection lenses to be used with the TITAN, thus overcoming the penalty of investment in new glass when upgrading to the latest projection technology.

Specifications

• Colour System:
  • Laser Phosphor
• Display Type:
  • 3 x 0.96" WUXGA DMD™
• DMD Specification:
  • Display capability upto 4K-UHD
  • 8.3 megapixels pixels on screen at 4K-UHD
  • Fast transit pixels for smooth greyscale and improved contrast.
  • Display resolutions 4K-UHD (3840 x 2160)
• Aspect Ratio:
  • 16x9
• Fill Factor
  • N/A as Smooth Picture DMD

Key Features

Video & Graphics Processing

• DisplayPort 1.2
• 2 x HDMI 2.0b HDCP 2.2
• HDR processing
• 2 x HDMI 1.4b HDCP 1.4 for Dual Pipe processing and Frame Sequential 3D Format.
• Sequential Processing: 3D via single HDMI 1.4b input
• Dual Pipe Processing: 3D Left and Right eyes via two HDMI1.4b inputs.
• Syncronisation of active glasses.
• 3G-SDI with loop-through.
• DICOM simulation mode.
• DMX Art-Net

General Features

• Constant Brightness control
• Multi-Projector Brightness control
• Compatible with selected competitor lenses via lens converter
• Selectable EDID
• Custom Start-up Logo

Geometry Correction

• 4-Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation
• Non-linear warp
• Digital Zoom, Pan and Scan
• Blanking control for custom input window sizing.
• Scaling available for fixed aspect ratio screens.
• Unscaled processing for pixel mapped display

Edge Blending

• Blending control available for all sides with width control.
• Correction for non-active pixels at the edge of the display.
• Electronic Black Level Compensation.

Picture in Picture

• Two sources can be displayed symultaneously using 2D inputs. either picture in picture (PIP) , or side by side (PBP), with the original aspect ratios maintained.

HDBaseT® Interface

• Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable
• Allows projector to be placed up to 100m from source with low cost cabling
• Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:2:2

Colour Processing

• Four colour modes available
• Powerful seven point colour correction for accurate colour matching with presets.
• Easy colour temperature selection
• Manual seven point colour adjustment
• Traditional lifts and gains

Projector Controller Software

• Intuitive user interface for network control
• Simultaneous control of user-defined groups of projectors
• At-a-glance monitoring of projector status

Projector Automation

• Real-time clock provides daily on/off automation
• E-mail alerts for system status

Source Compatibility

• 2D Graphics standards up to 4K-UHD 3840x2160 resolution at 60Hz via HDMI 2.0, HDBaseT (4:2:0), DisplayPort
• inputs
• 3D Graphics standards up to dual-pipe WUXGA 120Hz via HDMI 1.4b inputs
• 3G-SDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.

WUXGA mode

• 2D sources up to WUXGA 120Hz and 4K-UHD 60Hz can be displayed scaled to fit WUXGA
• 3D sources up to WUXGA 120Hz can be displayed scaled to fit WUXGA

4K-UHD mode

• 2D sources up to 4K-UHD will be displayed scaled to fit 4K-UHD

Auto Mode

• Sources greater than WUXGA will be displayed scaled to fit 4K-UHD
• Sources up to WUXGA will be displayed scaled to fit WUXGA

Inputs/Outputs
