STARQUAD, FOIL SHIELD, 16-CHANNEL (GREY), 100M ROLL

Product Code: CA-L-4E4-16AT100

Brand
Canare
RRP $5,220.00


Unit of Measure
R100


1 Year
Technical Specifications
Brands Canare
Bulk Cable Type Star Quad
  • Details
  • Downloads
  • Ordering

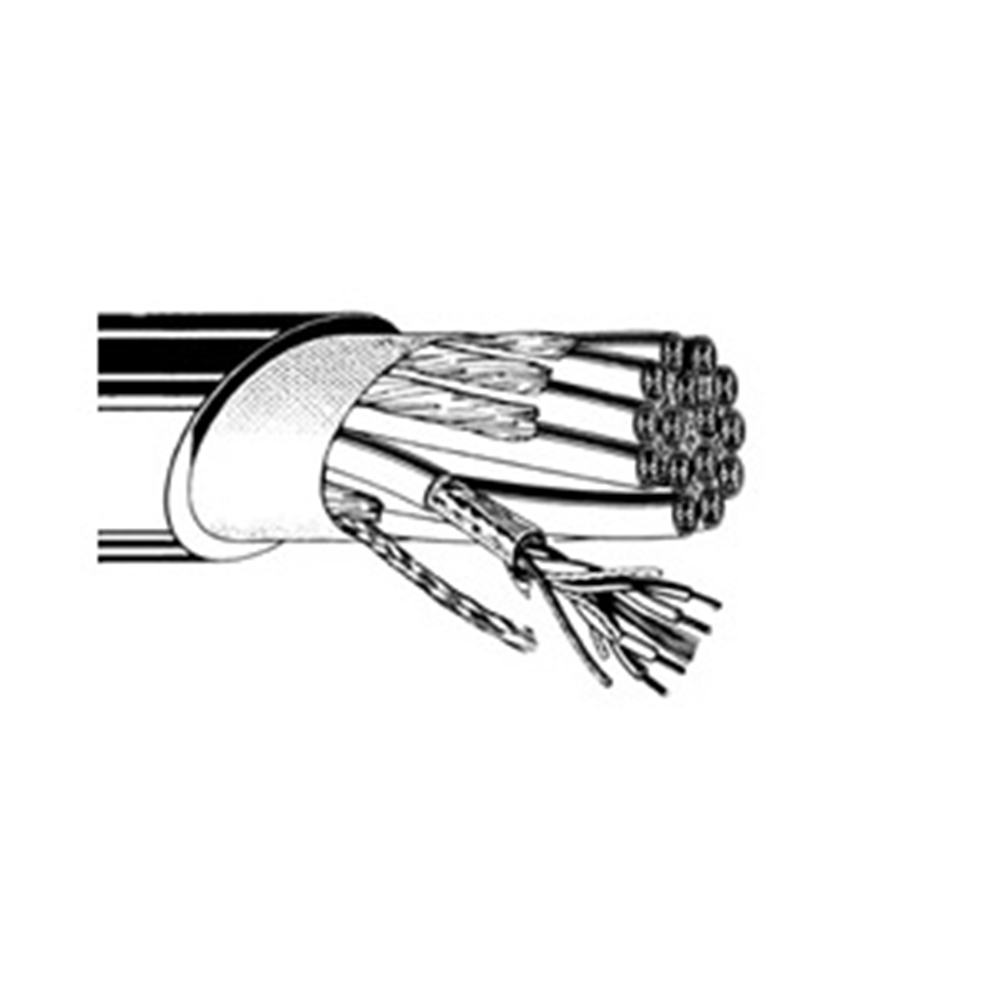

A 22 AWG 100% foil shielded Canare Star Quad multichannel snake cable, designed for all fixed audio installations. Each four conductor channel is completely isolated and contains Kevlar 29 for tensile pulling strength. The individual foil shield, drain wire and color coded striped PVC jacket, strip easy for quick on-site termination.

  • Multiple AudioLines.
  • Permanent Installations.
  • Audio Rack Wiring.
  • PA Systems.
  • Foil Shield with Drain Wire.
  • Flexible in Extreme Cold Weather.
  • Cross Linked PE Insulation.
  • Rejects EMI and RFI.
  • Multiple Channels.
  • Dupont® Kevlar 29 Filler.
MECHANICAL SPECIFICATIONS
Model Std. Lng.

ft.
(m)		 No. of
Quad
Channels
No. of
Cond.
(4 Per
Channel)		 Wt
Std. Lng.

lbs
(kgs)		 Nom.
O.D.

in.
(mm)		 PVC
Jacket
Nom.
Thick.
in.
(mm)		 Brittle
Point

F°
(C°)
L-4E4-2AT 328
(100)


656
(200)		 2 8 18
(8)		 .413
(10.5)		 .051
(1.3)		 -22
(-30)
L-4E4-4AT 4 16 40
(18)		 .484
(12.3)		 .055
(1.4)
L-4E4-8AT 8 32 73
(33)		 .665
(16.9)		 .059
(1.5)
L-4E4-12AT 12 48 95
(43)		 .748
(19.0)		 .059
(1.5)
L-4E4-16AT 16 64 117
(53)		 .827
(21.0)		 .059
(1.5)
L-4E4-24AT 24 96 152
(69)		 1.031
(26.2)		 .067
(1.7)

(contd.) MECHANICAL SPECIFICATIONS
Model Channel
O.D.

in.
(mm)		 Channel
Jacket
Nom.
Thick.

mil		 Insul.
Type*
Thick

mil		 Cond-AWG
(Qty./mil)
Cross Sec. Area
mil.²
**Quad AWG		 Pitch
Twist
Quad
in.
(mm)		 Shield
Coverage
Channel
Drain Wire
(Bundle
Drain Wire)
L-4E4-AT
Series		 146
(3.7)		 PVC
11.8		 IPE
12.6		 AC - #25
(16/4.73)
279
#22		 <0.83
(<21)		 AL Foil
100%
23AWG
(16AWG)
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.


ELECTRICAL PERFORMANCE/QUAD
Model Cond.
D.C.R.

ohm/
1000ft
(ohm/
100m)		 Shield
D.C.R.

ohm/
1000ft
(ohm/
100m)		 Nom.
Cap.
***



(pF/m)		 Nom.
Cap.
†



(pF/m)		 Nom.
Imp.




ohm		 Nom.
Atten.



V/1000ft
(V/100m)		 Group
Delay
Time


nS/ft
(nS/m)		 X-Talk
Input
3.31V

mV/
1000ft
(mV/
100m)
L-4E4-AT
Series		 <32.9
(<10.8)		 - 164 222 - - - -
***Capacitance between conductors.
†Capacitance between conductors to shield.


COLORS AVAILABLE
Model Black Blue Brown Gray Green Orange Purple Red White Yellow
L-4E4-AT
Series		 - - - - - - [+] - - - - - - - - - - - -
[+]=Standard Color, [o]=Available Color, "- -"=n/a



Cross Section
Individual Star Quad Channel

L-4E3-P, L-4E4-AT Cross Section Multichannel Bundle
Channel Color Code
Ch. No. 1 2 3 4 5 6 7 8 9 10 11 12
Spiral
Markers		 RED BLU YEL GRN BRN   -   BLK
BLU		 BLK
YEL		 BLK
GRN		 BLK
BRN		 BLK ORN
BLU

(contd.) Channel Color Code
Ch. No. 13 14 15 16 17 18 19 20 21 22 23 24
Spiral
Markers		 ORN
YEL		 ORN
GRN		 ORN
BRN		 ORN PNK
BLU		 PNK
YEL		 PNK
GRN		 PNK
BRN		 PNK WHT
BLU		 WHT
YEL		 WHT
GRN
