SonArray SR2-125 DSP Amplifier 2 Channel x 125 Watts Sonance

Product Code: SO-93135

Brand
Sonance
RRP P.O.A.


Unit of Measure
EACH



2 Year
Technical Specifications
Brands Sonance
Channel count 2
Series Sonance Electronics
  • Details
  • Downloads

Sonarray SR 2-125 Amplifier

The SR 2-125 Amplifier is purpose built to be the ideal companion for the SONARRAY SR1 satellite and subwoofer system. The SR 2-125 is a 125-watt stereo amplifier with DSP presets easily accessed through dials on the back of the amplifier. Whether the outdoor installation is hardscape or softscape, the amplifier presets optimize the best sound and performance of the SR1 system for any outdoor environment. The amplifier includes digital coax, toslink and analog inputs to accommodate all types of sources and streaming devices. Each input has a loop output allowing for the simple connection of multiple SR 2-125 amplifiers to power multiple SR1 landscape audio systems. The SR 2-125 can be rack mounted with the included rack ears or surface mounted with included feet.

SONARRAY SR 2-125 Amplifier

  • 20 DSP presets
  • 2 Channel (1 stereo pair)
  • 125 Watts per channel @ 8 ohms

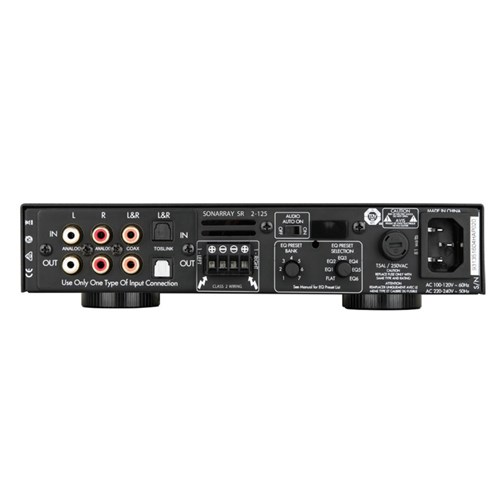

  • Coax, Toslink and RCA Inputs/Outputs
  • Rack ears and feet and included

Specifications

  • Number of Channels: 2 (1 stereo pair)
  • Power Output - 8 ohms: 125 Watts RMS per channel (both channels driven)
  • Power Output - 4 ohms: 200 Watts RMS per channel
  • (both channels driven)
  • Frequency Response: 5Hz - 50kHz, bandwidth limited
  • Total Harmonic Distortion: 0.07% (1kHz, 8 ohms) 0.06% (1kHz, 4 ohms)
  • Signal to Noise Ratio: -100dB (20Hz-20kHz)
  • Input Gain: 29dB
  • Input Sensitivity: 100mV for 1 Watt Output @ 8 ohms / 1110mV for 125 Watts Output @ 8 ohms
  • Input Impedance: 20k ohms
  • Loop Output Impedance: 600 ohms
  • Maximum Analog Input Voltage: 2.9V VAC RMS
  • Operating Voltage: 100-120V@60Hz, 220-240V@50Hz
  • AC Fuse: 5A (T5AL ~ 250V)
  • Rack Space Requirement: 1U – 1/2 Rack Width
  • Dimensions w/ Feet (W x H x D): 219mm x 54mm x 427mm
  • Dimensions w/ Rack Ears w/o Feet (W x H x D): 482mm x 44mm x 427mm
  • Shipping Weight:5.0kg

Product Documents

No documents available
