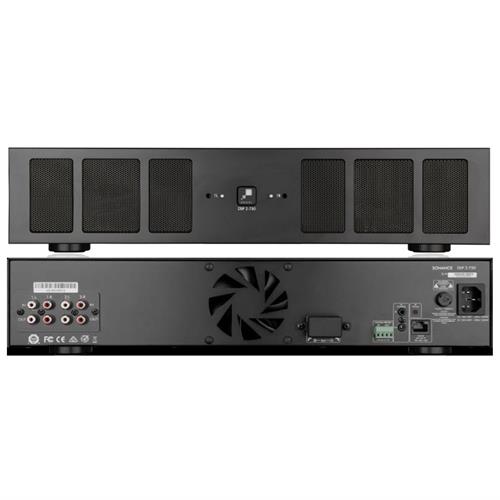

Sonamp DSP 2-750 MKII

Product Overview
Building on the legacy of the SONAMP 260, the industry’s first purpose-built distributed audio amplifier, Sonance is pleased to announce the next generation of class-leading amplifiers. The new DSP amplifier line delivers game changing features, audiophile grade circuitry, robust power and unrivaled installation flexibility.

At the heart of the SONAMP DSP amplifier is the (Sonance Advanced Room Correction) web interface featuring 100+ Sonance designed DSP presets, preloaded for effortless DSP without the need for additional hardware or calibration and a built in 10-band parametric EQ allows for optional DSP customization.

Number of Channels	2 (1 stereo pair)
Output Power - 8 ohms	500 Watts RMS per channel (Both channels driven)
Output Power - 4 ohms	750 Watts RMS per channel (Both channels driven)
Output Power - 70 Volts	750 Watts RMS per channel (Both channels driven)
Output Power - 8 ohms (Bridged)	2000 Watts
Frequency Response	5Hz - 50kHz
Operating Voltage	100 - 120V@60Hz, 220 - 240V@50Hz
Rack Space Requirement	2U
Dimensions With Feet (WxHxD)	17 1/4" x 3 7/8" x 17 7/32" (438mm x 98mm x 437mm)
Rack Mounted Dimensions (WxHxD)	19" x 3 1/2" x 17 7/32" (482mm x 88mm x 437mm)
Shipping Weight	23.3 lbs (10.6kg)

Features and Benefits

• High resolution 24 bit/96 kHz processing DAC capable of 4608 KBPS audio playback.
• IP and IR controllable via SONARC for the ultimate in installation flexibility.
• Powerful, audiophile grade Class-D amplification, rated and certified at 8 and 4 ohms & stable to 2 ohms.
• Convection cooled, fanless* design allows for direct stacking with no air gap for even greater power density. *(DSP 2-750 has a variable speed fan)
• Compact form factor allows for space savings in the equipment rack with ample power to the speakers.
• Class-D design is 93% efficient for maximum power output with minimal power usage. Meets EU power saving standards.
• Full array of input/output connectivity for maximum installation flexibility: Line input/loop outputs; IP, IR, audio and voltage triggers; Ethernet jack for network connectivity.
• Terminal blocks will accept up to 12AWG speaker cable for longer runs and higher performance.
• Bridgeable channels for applications when even more power is required.
• Certified to worldwide safety standards. (TUV to UL standards, CE, RCM, C-Tick, RoHS, WEEE). Meets FCC standards.
• Rack ears and removable feet included.
