Microphones

This is a Special Order Item

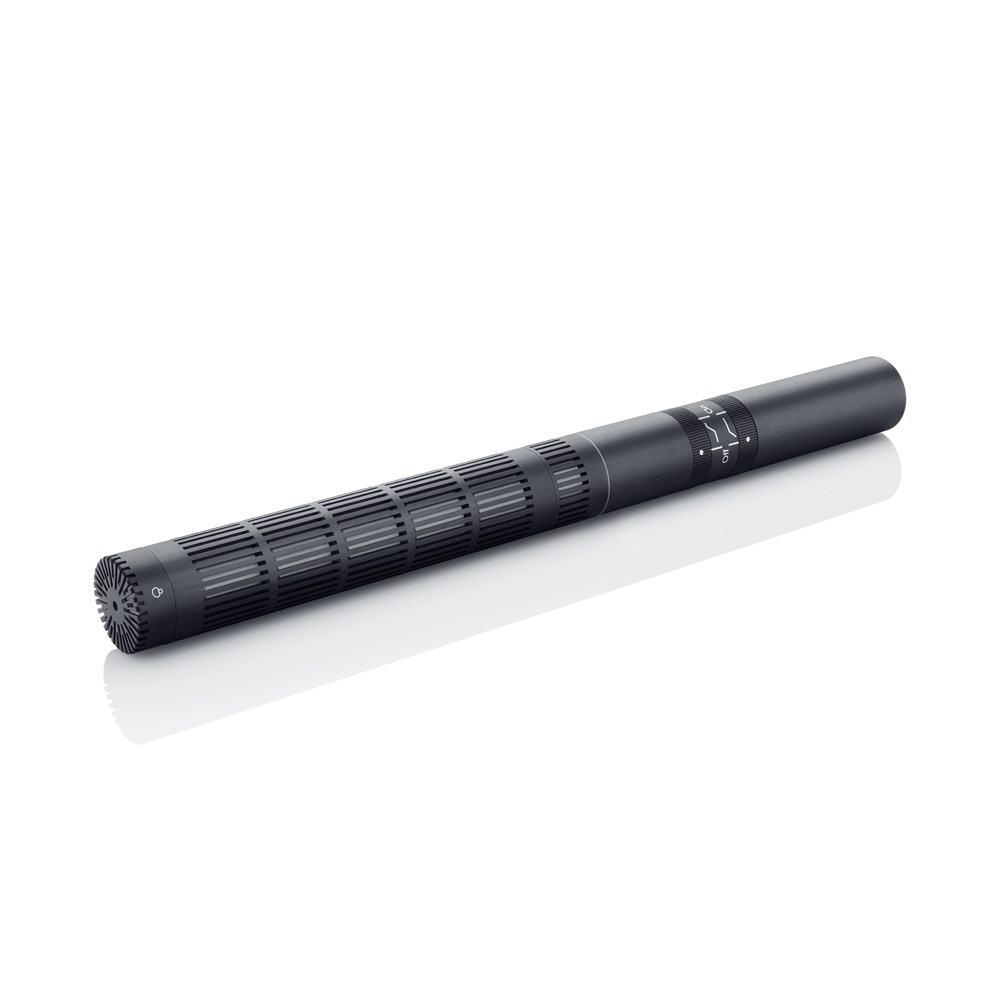

DPA d:dicate™ 4017B Shotgun Mic

Product Code: DP-4017B

Brand
DPA Microphones
RRP $3,885.00


Unit of Measure
EACH


5 Year
Features
Designed for a broad range of applications, the d:dicate™ 4017 Shotgun Mic is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast / ENG / film booming and even studio recording environments.

This condenser microphone capsule is part of the flexible d:dicate™ Recording Microphones Series. It is equipped with a highly-directional hypercardioid pickup pattern; obtained using a supercardioid design with an interference tube that provides excellent off-axis rejection.

Technical Specifications
Brands DPA Microphones
Series d:dicate
  • Details
  • Downloads

Specifications

Directional characteristics: Supercardioid, lobe-shaped
Principle of operation: Pressure gradient, with interference tube
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz to 20 kHz
Frequency range, ± 2 dB: 70 Hz to 20 kHz, permanent third order high pass filter at 50 Hz
Sensitivity, nominal ± 2 dB at 1 kHz: 19 mV/Pa; -34.4 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 14 dB(A) re. 20 µPa (max. 15 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (max. 26 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 80 dB(A)
Total Harmonic Distortion (THD): < 1 % up to 133 dB SPL peak
Dynamic range: Typ. 119 dB
Max. SPL, peak before clipping: 138 dB
Filters: High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz
Output impedance: < 150 ohm
Cable drive capability: 100 m (328 ft)
Output balance principle: Signal balanced
Common Mode Rejection Ratio (CMRR): > 40 dB
Power supply: 48 V Phantom power (± 4 V)
Current consumption: 4.5 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal – phase
Color: Matte black
Weight: 68 g (2.4 oz)
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Microphone length: 212 mm (8.3 in)
Output voltage, RMS: > 1.8 V
Polarity: +V at Pin 2 for positive sound pressure
Temperature range: -40 °C to 45 °C (14 °F to 113 °F)
Relative Humidity (RH): Up to 90 %
