Microphones

This is a Special Order Item

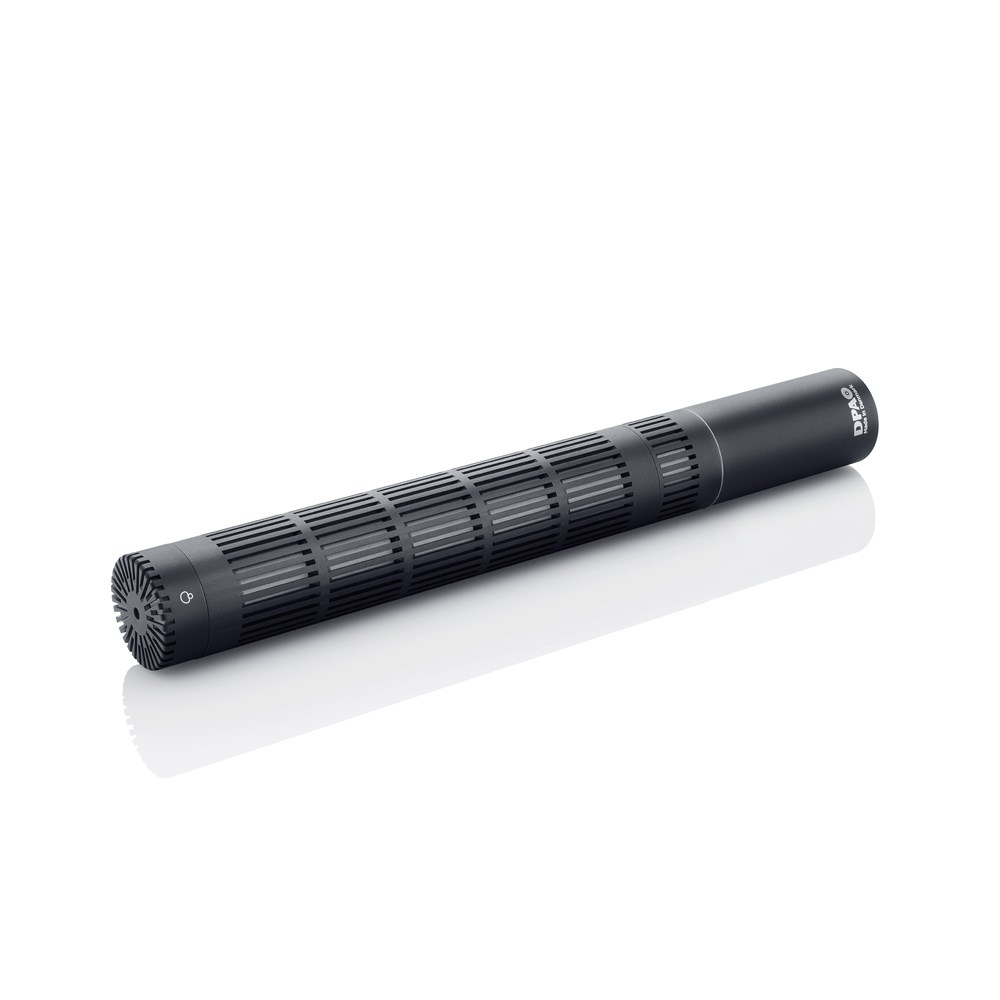

DPA d:dicate™ 4017C Compact Shotgun Mic

Product Code: DP-4017C

Brand
DPA Microphones
RRP $3,445.00


Unit of Measure
EACH


5 Year
Features

Impressive accuracy and clarity

  • Small and lightweight
  • Excellent RF immunity
  • Highly immune to humidity
  • Uniform off-axis response
  • Highly directional pattern
  • Sleek shotgun for distant miking
  • Integrated active cable

Designed for a broad range of applications, the d:dicate™ 4017 Shotgun Mic is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast / ENG / film booming and even studio recording environments.
Technical Specifications
Brands DPA Microphones
Series d:dicate
  • Details
  • Downloads

Specifications

Directional pattern: Supercardioid, lobe-shaped
Principle of operation: Pressure gradient, with interference tube
Cartridge Type: Pre-polarized condenser
Frequency range: 20 Hz to 20 kHz
Frequency range, ± 2 dB: 40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
Sensitivity, nominal, ± 2 dB at 1 kHz: 19 mV/Pa; -34.4 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 24 dB (max. 26 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 80 dB(A)
Total Harmonic Distortion (THD) at 1 kHz: < 1 % up to 133 dB SPL peak
Dynamic range: Typ. 119dB
Max. SPL, peak before clipping: 146dB
Output impedance: 100 ohm
Minimum load impedance: 2 kΩ
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): > 40 dB
Power supply (for full specifications): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Color: Matte black
Weight: 70 g (2.5 oz)
Diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Output voltage, RMS: 4.5 V
Microphone Length: 154 mm (6.1 in)
Polarity: +V at Pin 2 for positive sound pressure
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Relative Humidity (RH): Up to 90%
Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
