CA121M Two-Way Complex Conic Loudspeaker Systems

Every C Series loudspeaker is engineered by Renkus-Heinz to unrivaled standards of quality and innovation. Before we’ll ship them, your loudspeakers have to meet our exacting requirements, for performance that will make you proud and durability that will keep you sounding great.

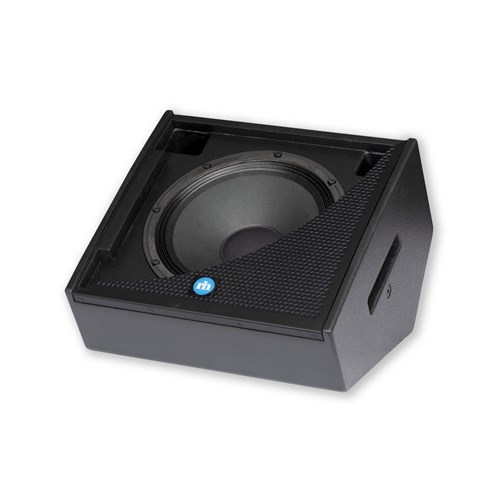

12″ LF + 1.75″ HF Two-way, Coaxial Stage Monitor
The CX/CA121M was developed for applications needing consistent directivity and great sonics from a very compact cabinet. It features a coaxial transducer based on a 12” woofer and a 1.75” Voice Coil Compression Driver. The woofer and compression driver share a common motor structure for high performance in a very compact package. The result is natural, distortion free output at high sound pressure levels, ideal for all monitoring applications. The Coaxial design also results in ideal constant directivity, for optimal on and off axis performance.

CX121M Non-Powered Loudspeakers: For use with external amplification

Key Features

• Coaxial Design
  Combines HF and MF output into a single source, allowing for high output in an surprisingly small package.
• High Sensitivity
  80 Hz to 20 kHz response and 130 dB, peak SPL.
• Optional SA625 Amplifier
  SA625 amplifier offers high output, full protection limiting, analog, and optional AES and Dante inputs.
• Self-Powered System Advantage
  A single CA121M with the SA625 can power one additional CX121M with Bi-Amplified, processed output via an NL4 output.

Applications

• The CX/CA121M is a compact, 12″ Coaxial loudspeaker perfect for any application where very small size, consistent directivity and great sonic performance are required.
• Stage monitoring for performance venues or rental/staging companies.
• Compact, high-output front-fill, or small pole mounted mains speaker using optional Pole Cup Adapter.
• Inherent baffle angle is ideal for cinema surround.
• Large format Under-Balcony.

Specification

• Sensitivity: 96 dB (1W/1m)
• Max SPL: 130 dB peak, Half-Space
• Dispersion: 80° H x 80° V Constant Directivity / 33° Monitor Angle
• Freq. Response: ± 3 dB, 90 Hz to 20 kHz
• Driver: Coax: 12” woofer and a 1.75” Voice Coil Compression Driver (SSC12-1)
• Enclosure: 3/4” lite-ply plywood
• Power Rating: Passive: 300 W AES, 600 W @ 8 ohms Bi-amp: 300 W AES, 600 W PGM @ 8 ohms, LF 60 W AES, 120 W PGM @ 8 ohms, HF
• Connectors: Screw terminals & looping 4-pin Neutrik SpeakOn style connectors
• Finish: Black or White Paint
• Hardware:2 x M10 attachment points
• Optional: UBRKT/CT121MB (black); UBRKT/CT121MW (white) Optional: EEM-M10 Pole Mount Adapter (Black)
• Dimensions: 16″ H x 7-7/8″ W x 9-3/8″ D / 200 mm H X 406 mm W X 238 mm D
• Weight: 25 lbs / 13.4 kg
