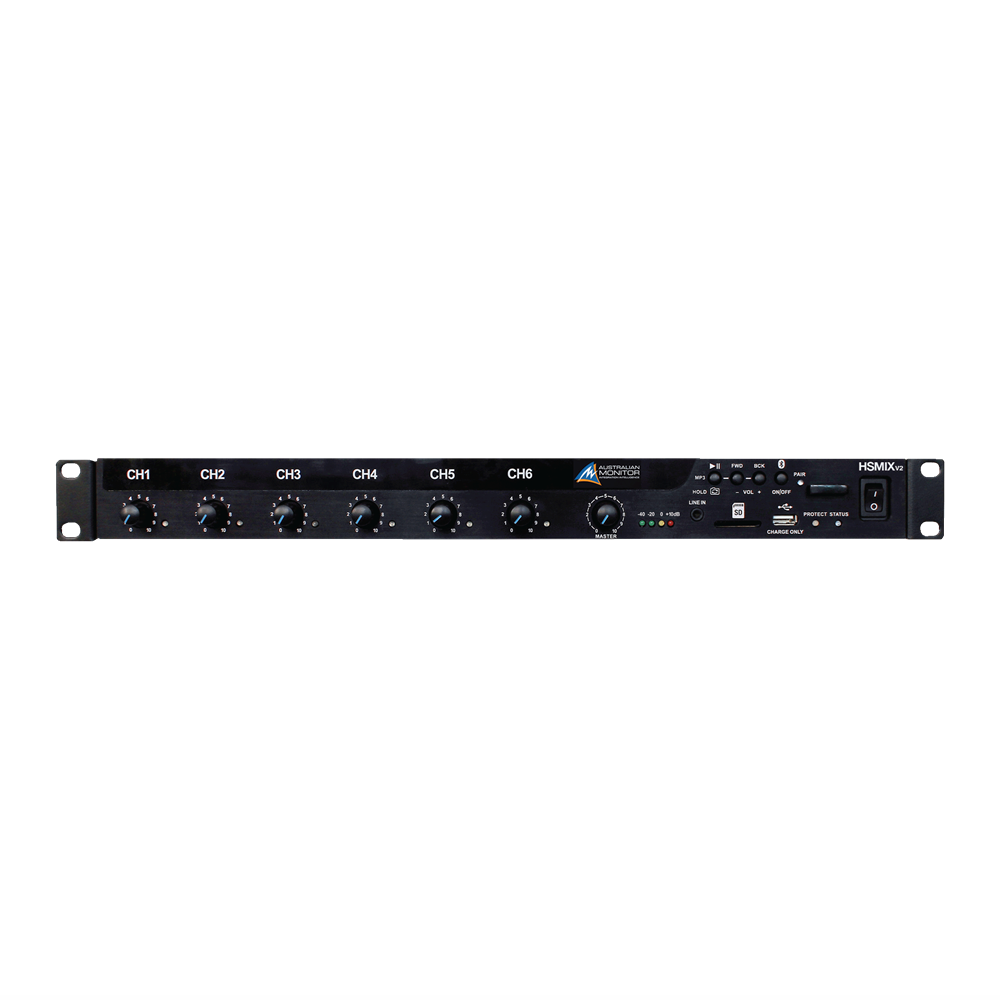

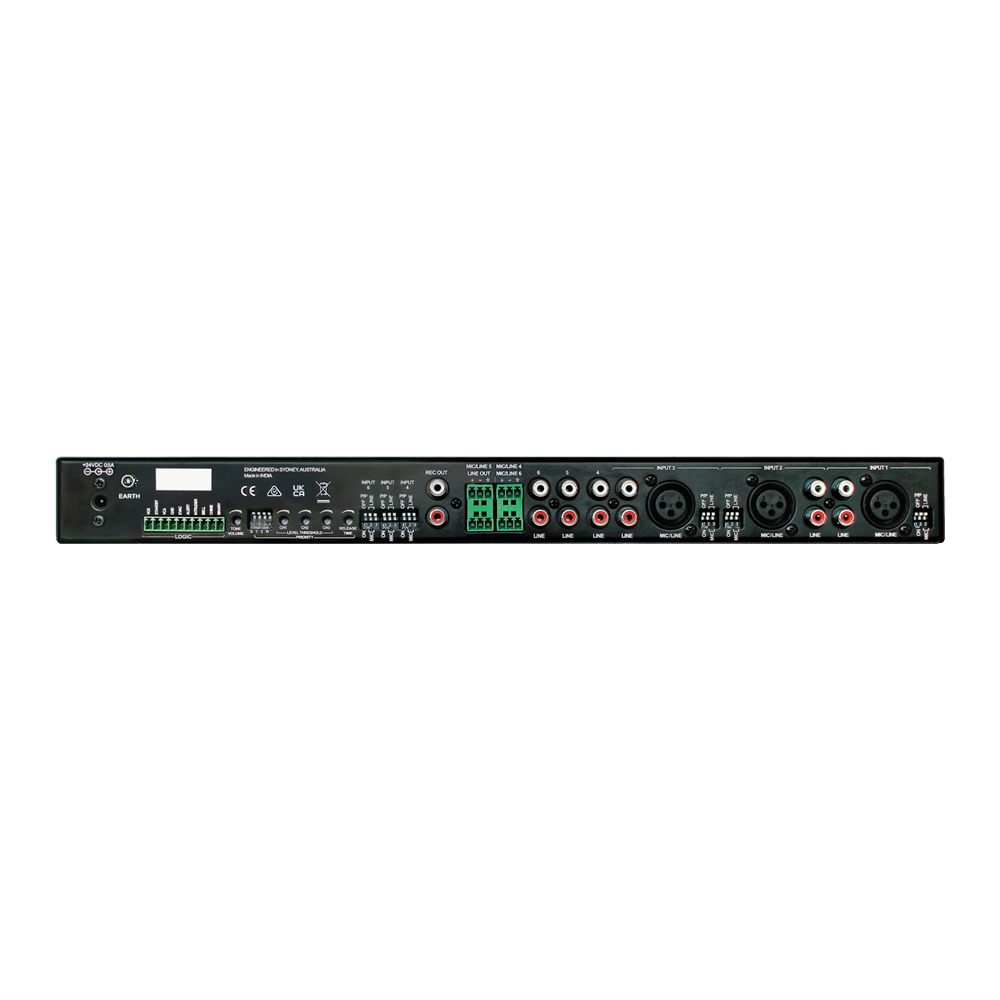

HSMIX-V2

The HSMIX is Australian Monitor’s next generation mixer, delivering high quality audio in a one-rack unit package.

Our new mixer is fully featured, offering 7 external and 2 internal audio input channels, each channel offering individual channel volume control, equalizer and gain control. An inbuilt user customizable tone generator, MP3 player, Bluetooth module, 3.5mm jack and USB charger are included as standard.

The HSMIX has been designed to include all the features required for a vast range of installations,from the boardroom to the classroom, school hall to bar, restaurant or function space.

Features

• 9 audio input channels. 6 rear & 3.5mm Jack, Bluetooth and MP3
• Individual gain/equalisation control on all external audio inputs
• Priority mute control on channels 1-3, with level and time release control
• Phantom power on microphone inputs
• MIC or Line options on rear inputs

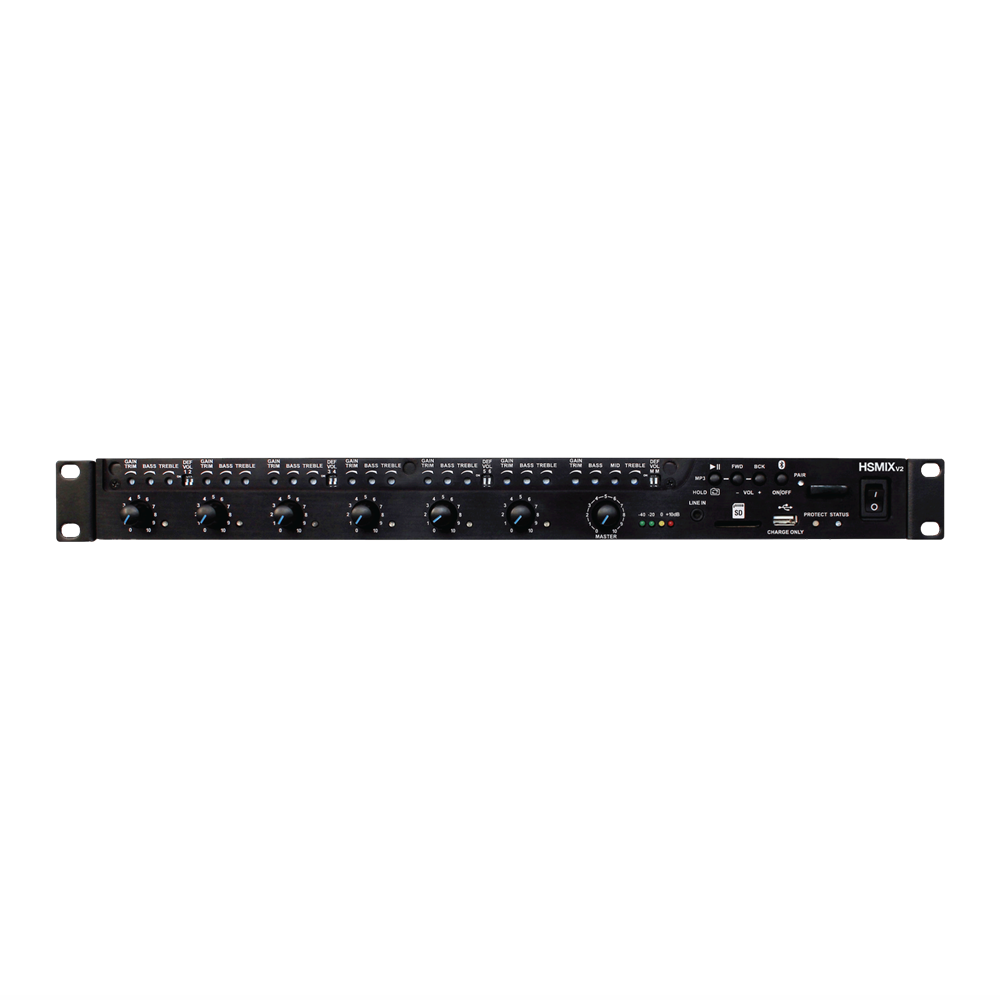

• Magnetic cover for customer concealed eq and gain controls
• Embedded tone generator for bell/alert/evac/chime/ intruder plus 11 fully customisable user tones
• Embedded MP3 player via onboard SD card socket – supporting random, sequenced and single playback
• Programmable Bluetooth v5.1® receiver via SD Card
  • Broadcast name
  • PIN Number
  • Security Features
• Tamper-proof channel attenuation by disabling external volume controls
• Voltage controlled input attenuation (VCA)
• Signal, Status, Clip Protection indicators
• Clip/Thermal/Short and Under/Over voltage protection
• 1 RU rack mount size

Bluetooth Control Software available from here

Specifications

• Total Inputs: 9
• Frequency Response: 20Hz - 20kHz
• Input Channels: 6 MIC or Line / Bluetooth / MP3 and AUX
• THD+N: < 0.1%
• Output Channels: 1 Mono
• Signal to Noise Ratio: > 75dB
• Mounting: 1RU
• Input Sensitivity: MIC: 4.36mV / Line: 775mV
• Warranty: 5 years
• Input Voltage: 100-240Vac 50-60Hz
• Product Dimensions:
  • (W x D x H) 483mm x 180mm x 44mm
  • (W x D x H) 505mm x 290mm x 95mm Shipping Dimensions
• Net Weight: 2.4 Kg
• Shipping Weight: 3.0 Kg
• GTIN EAN: 9323383020337
