Professional Series 8" Surface Mount Woofer

8" Surface Mount Woofer

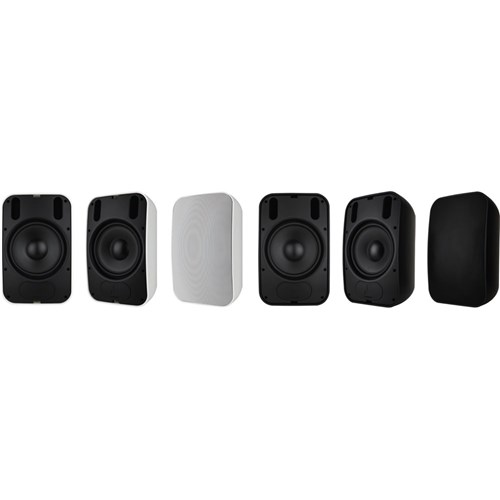

Sonance Professional Series PS-S83WT Surface-Mount Woofer features the Patented FastMount® bracket and front cable connection to speed up the installation process and provide a clean appearance.

The IPX4 rated construction features a weatherproof high-impact, extreme temperature resistant cabinet and corrosion-proof powder coated aluminum grille, lending itself perfectly in both indoor and outdoor applications.

An ultra-high-excursion 8” polypropylene woofer delivers effortless and impactful low bass extension and augmentation, at any sound pressure level, making it the perfect partner for the PS-S43T, PS-S53T and PS-S63T Pendant Speakers.

A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.

Additionally, the Sonance PS-S83WT is certified for UL 1480 and UL 2239.

Available in either black or white (paintable).

Specifications

• Frequency Range (-10dB) - 32Hz – 300Hz
• Frequency Range (-3dB) - 50Hz – 150Hz
• Power Capacity1 - 200 Watts Continuous Program Power | 125 Watts Continuous Pink Noise
• Nominal Sensitivity - 88dB
• Nominal Coverage Angle - 180 degrees x 180 degrees coverage
• Directivity Factor (Q) - N/A
• Directivity (DI) - N/A
• Rated Maximum SPL - 110dB @ 1 meter (3.3 feet) average, 116dB peak
• Rated Impedance - 8 Ohms nominal, 6 Ohms minimum
• Transformer Taps - 120W, 60W, 30W (15W 70V)
• Crossover Point - 150Hz
• Overall Dimension - 14.02” Height x 9.01” Width x 8.58” Depth (356mm x 229mm x 218mm)
• Net Weight - 12 lbs (5.44kg) each
• Shipping Weight - 18 lbs (8.61kg) each
• Unit of Measure - Each
• Color - Black or White
• Grille - Powder Coated Aluminum Friction Fit
• LF Driver - 8” (203mm) Polypropylene Cone, Butyl Rubber Surround
• HF Driver - N/A

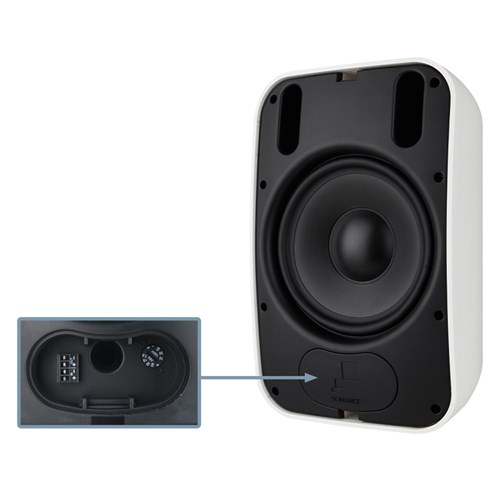

• Input Connectors - Front-mounted four pin, Euroblock with loop output connections
• Safety Agency - UL 1480, UL 2239
• Mounting Bracket - U-Bracket with Sonance FastMount
• Environmental & UV - Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating
