Speakers

PS-S53T 5.25in Black Surface Mount Professional Series Sonance

Product Code: SO-40148

Brand
Sonance
RRP $1,109.00


Unit of Measure
PAIR



5 Year
Technical Specifications
Brands Sonance
Series Professional Series
Size 5.25"
Speaker Type Cabinet
  • Details
  • Downloads

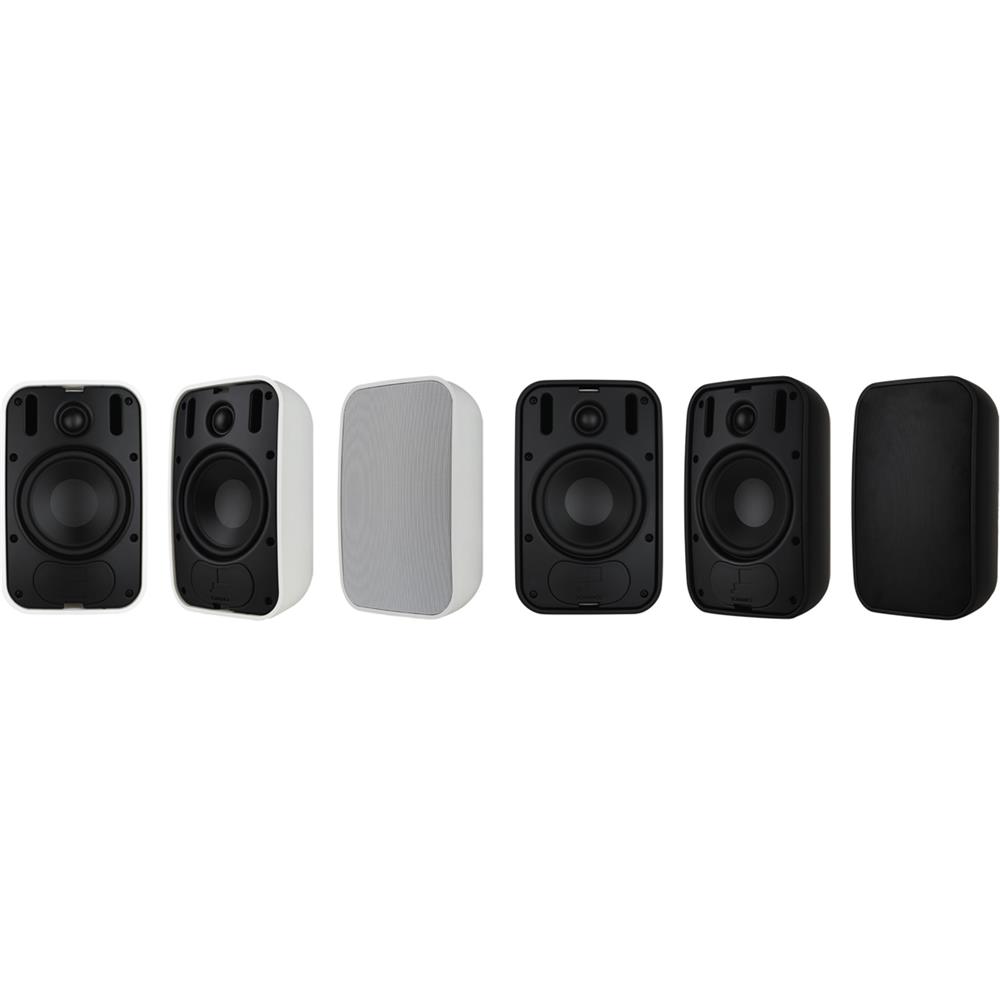

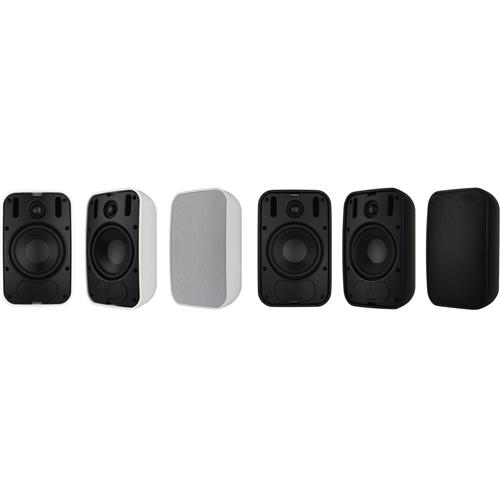

Professional Series 5.25" Surface Mount Speaker

5.25" Surface Mount

Sonance Professional Series PS-S53T Surface-Mount Speaker features the Patented FastMount® bracket and front cable connection to speed up the installation process and provide a clean appearance.

The IPX4 rated construction features a weatherproof high-impact, extreme temperature resistant cabinet and corrosion-proof powder coated aluminum grille, lending itself perfectly in both indoor and outdoor applications.

A high-excursion 5.25” polypropylene woofer delivers effortless low bass extension, that exceeds many larger competitive products, while the chambered 1” soft dome tweeter provides accurate high-end detail and exceptional coverage.

A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.

Additionally, the Sonance PS-S53T is certified for is certified for UL 1480 (UEAY) and 2239.

Available in either black or white (paintable).



Specifications

  • Frequency Range (-10dB) - 43Hz – 25kHz
  • Frequency Range (-3dB) - 70Hz – 20kHz
  • Power Capacity - 90 Watts Continuous Program Power | 45 Watts Continuous Pink Noise
  • Nominal Sensitivity - 88dB
  • Nominal Coverage Angle - 90 degrees x 90 degrees coverage
  • Directivity Factor (Q) - 7.0dB
  • Directivity (DI - 8.0dB
  • Rated Maximum SPL - 106dB @ 1 meter (3.3 feet) average, 113dB peak
  • Rated Impedance - 8 Ohms nominal, 6 Ohms minimum
  • Transformer Taps - 30W, 15W, 7.5W (3.8W 70V)
  • Crossover Point - 2750Hz

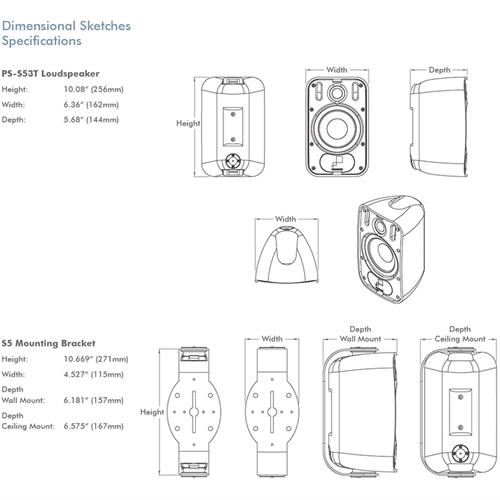

  • Overall Dimension - 10.08” Height x 6.36” Width x 5.68” Depth (256mm x 162mm x 144mm)
  • Net Weight - 4 lbs (1.81kg) each
  • Shipping Weight - 16 lbs (7.23kg) pair
  • Unit of Measure - Pair (Single upon request)
  • Color - Black or White
  • Grille - Powder Coated Aluminum Friction Fit
  • LF Driver - 5.25” (130mm) Polypropylene Cone, Butyl Rubber Surround
  • HF Driver - 1” (25mm) Cloth Dome, Ferrofluid cooled
  • Input Connectors - Front-mounted four pin, Euroblock with loop output connections
  • Safety Agency - UL 1480, UL 2239
  • Mounting Bracket - U-Bracket with Sonance FastMount
  • Environmental & UV - Conforms to MIL-STD-810 for humidity, salt spray,  temperature, IEC 529 IPX4 splash-proof rating
