SB-520 Professional Streaming Box

Record, Stream and Broadcast in One Box

AVer SB-520 features with powerful multi-function and compact design. Embedded with H.264 video codecs, the SB-520 allows one or two HDMI or 3G-SDI video sources up to full HD 1080p resolution, and encodes two independent video streams of the same or various bit-rates for broadcasting or recording. Also, SB-520 equips with multiple input/output interfaces that highly work with Facebook Live, Wowza, CDNvideo, YouTube, Twitch, Ustream, and many more platforms. Combing with simple Web UI for easy setups, the SB-520 not only makes the production more diversified, but also satisfies streaming industry’s need of high efficiency.

Specifications

Video

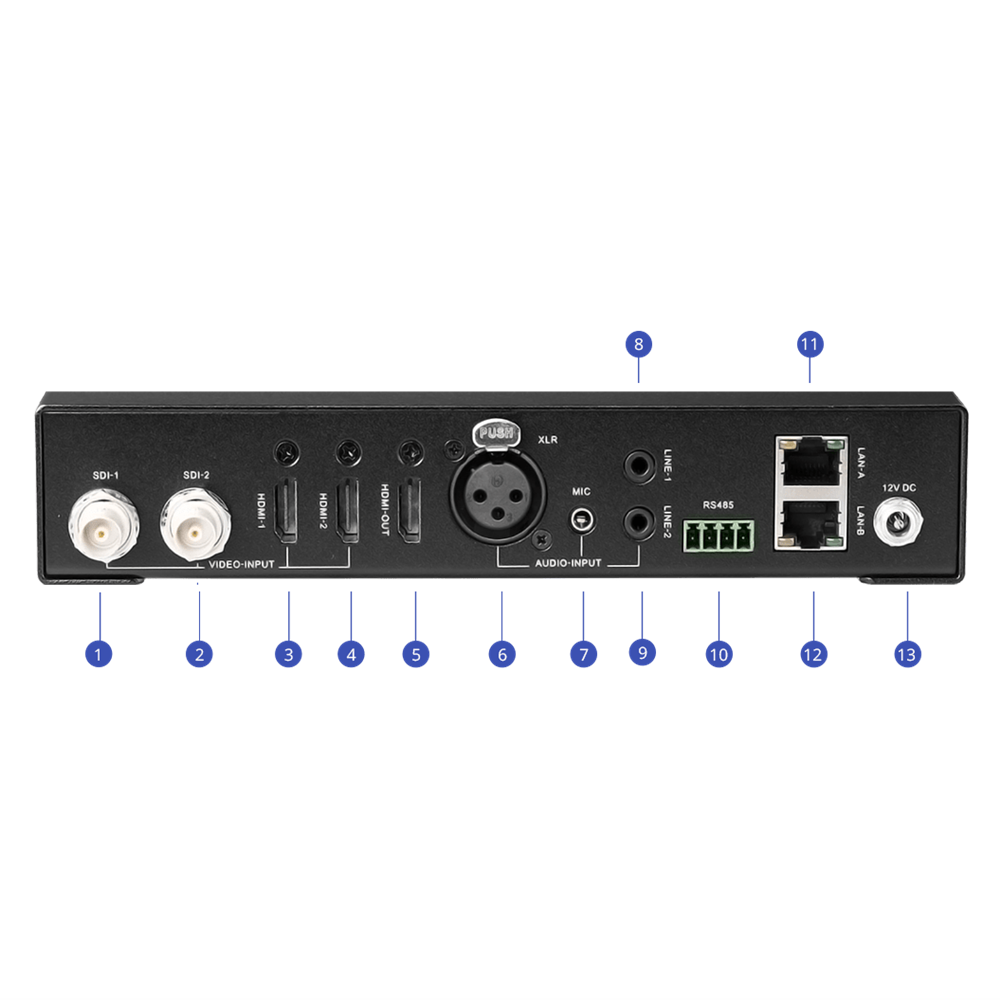

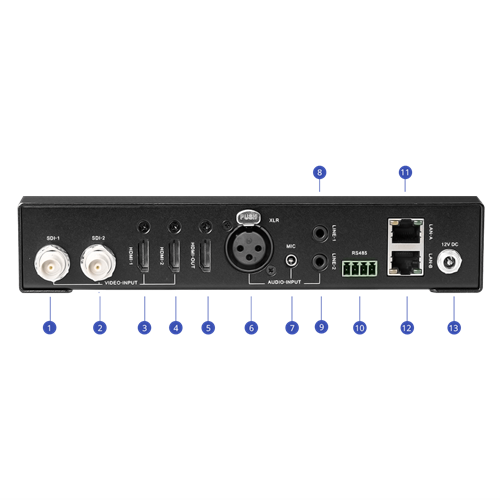

  • Interfaces (Input): HDMI 1.4b x 2, 3G-SDI x 2 (Audio embedded)
  • Output Resolution: Full HD 1080p 60fps (Max.)
  • Preview Output: HDMI 1.4b
Audio
  • Interfaces: 3.5mm Line in x 2, 3.5mm Mic in x 1, XLR x 1
Channels
  • Output: 2
Streaming & Recording
  • Video Compression Formats: H.264
  • Audio Compression Formats: AAC
  • Bit-Rate Setting: Up to 20Mb/s
  • Recording File Formats: MP4, MOV, TS
  • Protocols: TCP, UDP, RTMP, RTP, RTSP, RTMPS, HLS
  • Layouts: PiP, PbP, Single, Customized layouts
  • Modes:
    • 2 to 2 Mode: 2 streams with independent audio/video input, encode setting and streaming protocol.
    • 1 to 2 Mode: Stream the same audio/video content to different target network with independent encode setting and streaming protocols.
    • 1, 1, 1 Mode: Simultaneous streaming and recording from the same video/audio source. Recording to network mapped drive from NAS and Windows shared folders.
Web UI
  • Browsers: Chrome, IE, Firefox
General
  • Power Requirement: Locking Power Supply 12V/5A

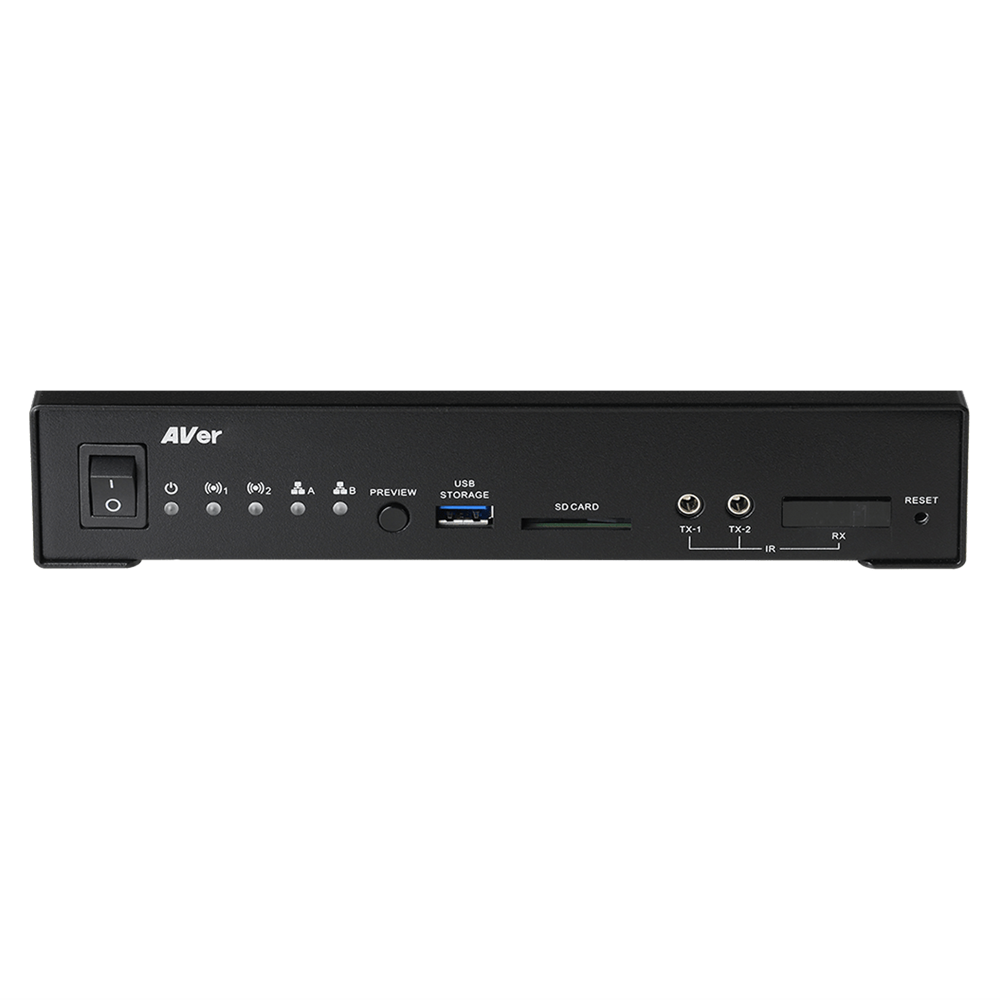

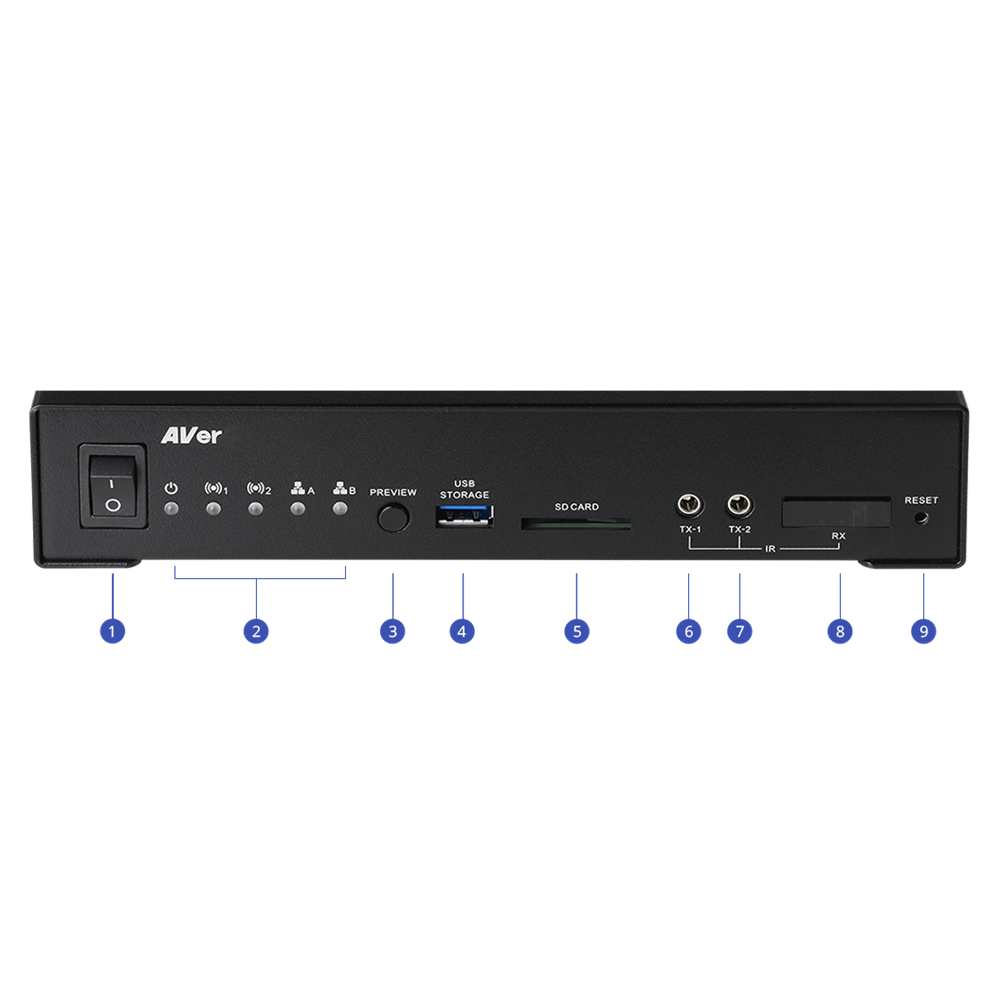

  • LEDs: Power x 1, RJ45 x 2, Stream x 2
  • Buttons: Preview, Reset
  • Connectivity: RJ45 x 2, RS-485 x1
  • PoE: Yes
  • Storage: NAS, USB 3.0 & SD Card Slot for Local Storage
  • IR: IR Receiver (for remote control), IR Blaster
  • API for Integration: Yes
  • Dimensions (W x H x D): 179.2 x 39.8 x 210.5 mm
  • Net Weight: 962 g (2.12 lbs)
  • Operating Conditions:
    • Temperature: 0°C to +50°C
    • Humidity: 0% to 80%
  • Storage Conditions:
    • Temperature:-40°C to +70°C
    • Humidity: 0% to 90%
  • Package Contents: SB-520 Unit, Power Adapter, Power Cord, Remote Control, Base Rack Mount, Long Rack Mount, Short Rack Mounts (x 2), Screws (x 8), Quick Guide
