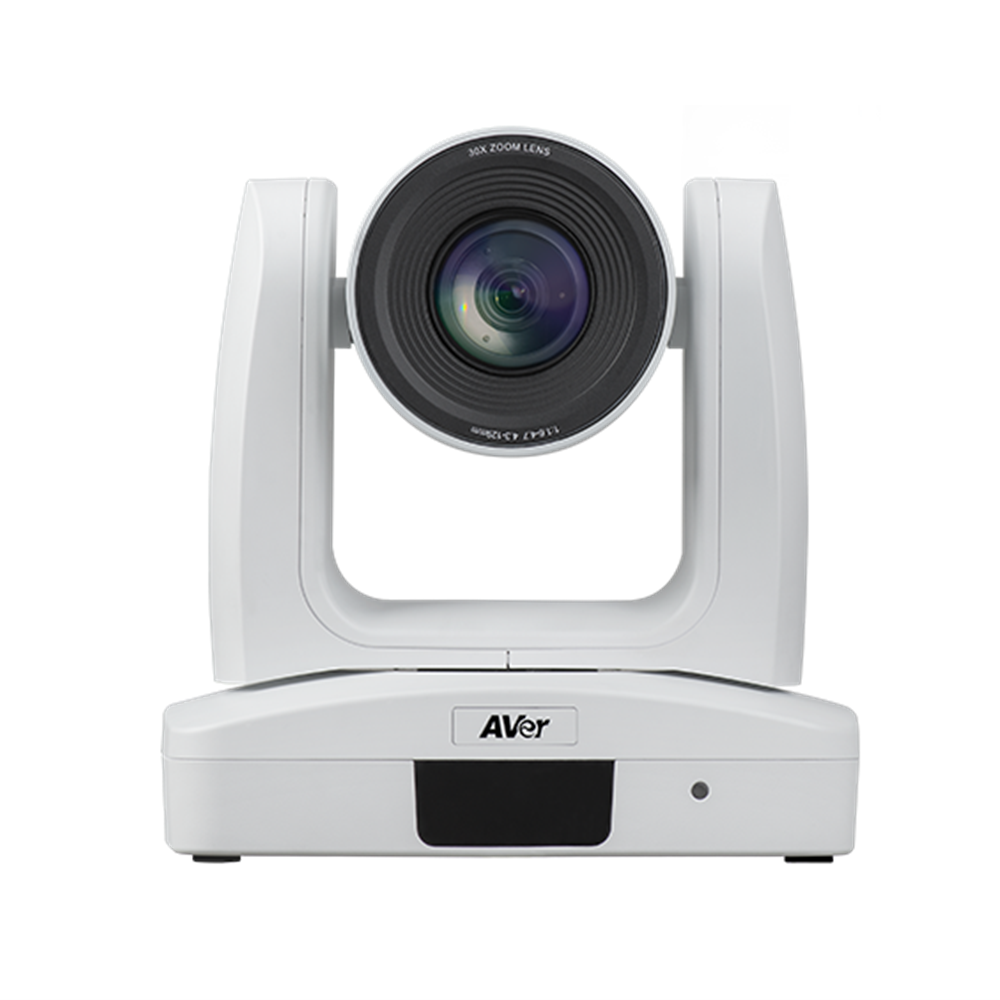

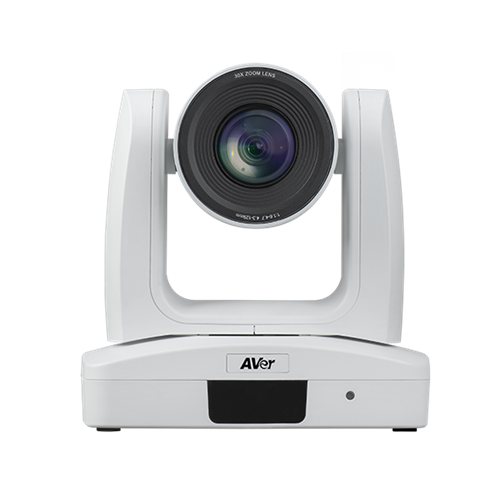

PTZ330 White

Capture Events in Lifelike Quality

Professional PTZ Camera
AVer PTZ330 is available in white or grey and equipped versatile functions to suite every classroom, hospital, or business. Creating the superior video quality, the PTZ330 makes you feel the action in a scene!

30X Optical Zoom
Resounding image quality and a 30X optical zoom enable you to capture crystal-clear footage in any classroom, hall, or activity center.

Full HD Resolution
The PTZ330 provides outstanding image quality in full HD 1080p at 60fps. It also offers the best auto focus, auto exposure, and auto white balance performance.

Up to 255 Preset Locations
Always be prepared to capture every angle and change the recording view at a moment’s notice with up to 255 preset locations through VISCA via RS232 and RS422 functionality, and 10 preset locations through IR remote control.

Stable Motion Control
Fully optimize your recording with customizable speed settings from 0.1°to 200° per second that maximize the agility and precision of pan/tilt rotation motion control.

Seamless Tracking Between Your Preset Zones
AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ330 across all your preset zones. Save effortand time, while providing your video with a huge variety of shooting ranges.

Fit Your FOV in Seconds
AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.

Specs

Camera
Image sensor

• 1/2.8" 1080p 60fps Exmor CMOS

Effective Picture Elements

• Approx. 2.1 megapixels

Output Resolution

• Auto
• 1080p@60, 1080p@59.94, 1080p@50, 1080i@60, 1080i@59.94, 1080i@50, 1080p@30, 1080p@29.97, 1080p@25, 720p@60, 720p@59.94, 720p@50

Minimum Illumination

• 0.3 lux (IRE50, F1.6, 30fps)

S/N Ratio

• > 50dB

Gain

• Auto/Manual

TV Line

• 600 (corner/wide)

Shutter Speed

• 1/1s ~ 1/32,000s

Exposure Control

• Auto, Manual, Priority AE (Shutter, IRIS), BLC

White Balance

• Auto/Indoor/Outdoor/One-push/Manual (2500 - 10000)

Optical Zoom

• 30X

Digital Zoom

• 12X

Horizontal Viewing Angle

• 67° (Wide) ~ 2.3° (Tele)

Focal length

• f = 4.3mm (Wide) ~ 129mm (Tele)

Aperture (Iris)

• F = 1.6 (Wide) ~ 4.7 (Tele)

Minimum Working Distance

• 0.01m (Wide), 1.2m (Tele)

Pan/Tilt Angle

• Pan: -+ 170° ; Tilt: +90°/-30°

Pan/Tilt Speed (manual)

• Pan: 0.1~100°/sec, Tilt: 0.1~100°/sec

Preset Speed

• Pan: 200°/sec, Tilt: 200°/sec

Preset Position

• 10 (IR), 255 (RS232)

Camera Control - Interface

• RS232 (DIN9) / RS422 (RJ45)

Camera Control - Protocol

• VISCA (RS-232/RS422/IP), CGI (IP)

Image Processing

• Noise Reduction (2/3D), Flip, Mirror

Power Frequency

• Auto/50Hz/60Hz

Audio

Audio - Channel

• 2ch (Stereo)

Audio - Codec

• AAC-LC (48/44.1/32/24K), G.711/PCM

Audio - Sample Rate

• 48/44.1/32/24/16/8Khz

Interface

Video Output

• 3G-SDI, HDMI, IP, USB

Audio Output

• 3G-SDI, HDMI, IP, USB

Audio Input

• MIC/Line in

General

Power Requirement

• AC100V-AC240V to DC12V/5A

PoE

• POE+ (IEEE 802.3at), Class 4

Operating Condition

• Temperature: 0°C ~ +40°C ; Humidity: 20% ~ 80%

Storage Condition

• Temperature: -20°C ~ +60°C ; Humidity: 20% ~ 95%

Dimensions

• L=180 mm，W= 145 mm，H= 183.5 mm

Weight

• 1.62 kg

Application

• Indoor

Security

• Kensington slot

Remote Control

• Infrared

Accessory

• Remote control, 12V/5A power adapter

IP Streaming

Resolution

• 1920x1080, 1280x720, 960x540, 640x480

Network Video Compress Format

• H.264 (High Profile), MJPEG

Maximum Frame Rate

• H.264: 60fps (1920x1080), MJPEG: 30fps (1920x1080)

Bit-rate Control Mode

• VBR/CBR (selectable)

Range of Bit-rate setting

• 512Kbps ~ 32Mbps

Network Interface

• 10/100/1000Base-T

Multi-stream Capability

• 2

Network Protocol

• IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA over IP

USB

Connector

• Micro-USB 2.0

Video Format

• YUV, MJPEG, H.264

Maximum Video Resolution

• Up to 1080p

USB Video Class

• UVC1.1

USB Audio Class

• UAC1.0

WebUI

Live Video Preview

• Yes

Camera PTZ Control

• Pan / Tilt / Zoom / Focus / Preset Control

Camera / Image Adjustment

• Exposure / White Balance / Picture

Network Configuration

• DHCP / IP Addr / Gateway / Netmask / DNS

Software Tools

Device IP Searching, Configuration Tool

• Windows Application

* Specifications may vary depending on location and are subject to change without notice.
