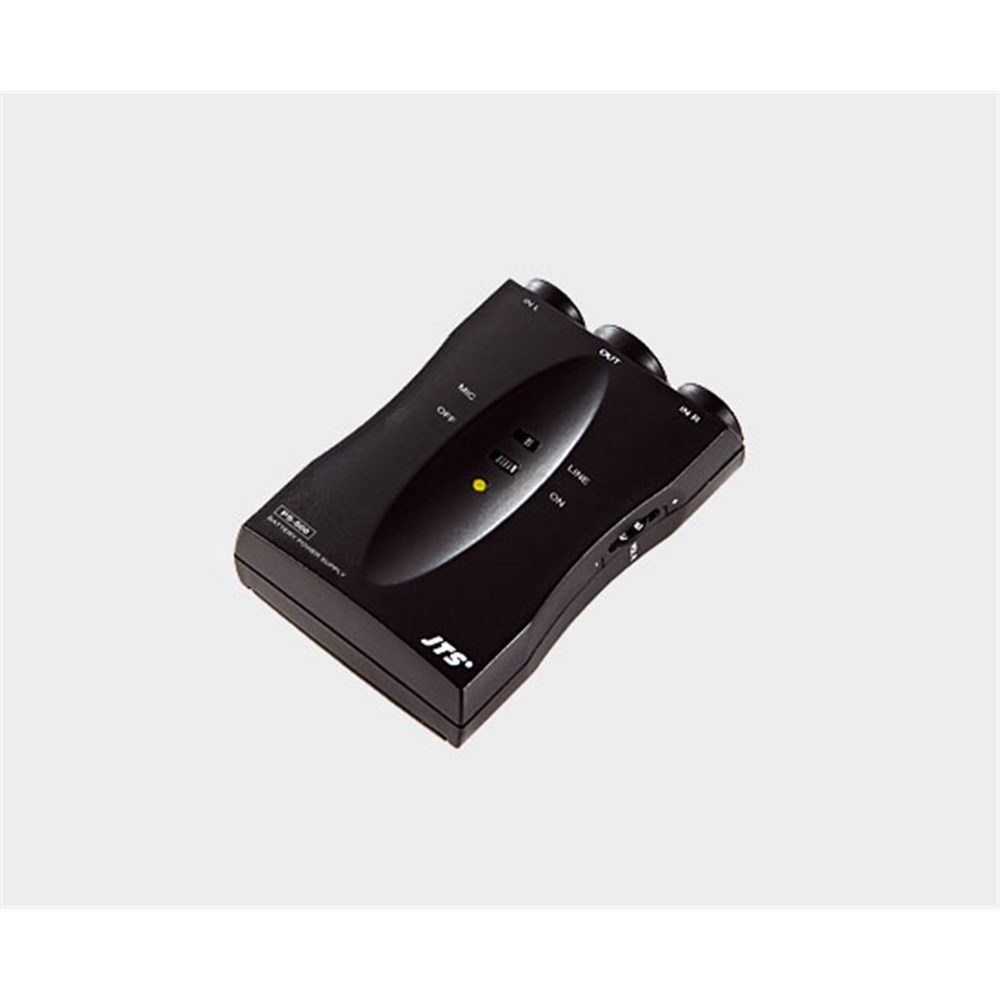

PS-500

The JTS PS-500 is a 9V battery operated phantom power supply with two mini XLR(M) inputs and one XLR(M) output. It also works as a mini mixer for JTS CX and CM series condenser microphones with volume controls for input channels 1 & 2. A Mic/Line switch also allows mixing of Line signals.

SPECIFICATIONS

Frequency Response

• 20~20,000 Hz

Power Supply

• Batt. Power 9V

Current Consumption

• max. 10 mA

Input Impedance

• 5 k Ω

Output Impedance

• 200 Ω unbalanced

Input

• 4P Mini XLR(M) (2 channels)

Output.

• 3P XLR(M)

Dimension(m/m)

• 92mm(W)* 23mm(H)* 65mm(D)
