DPA Microphones

This is a Special Order Item

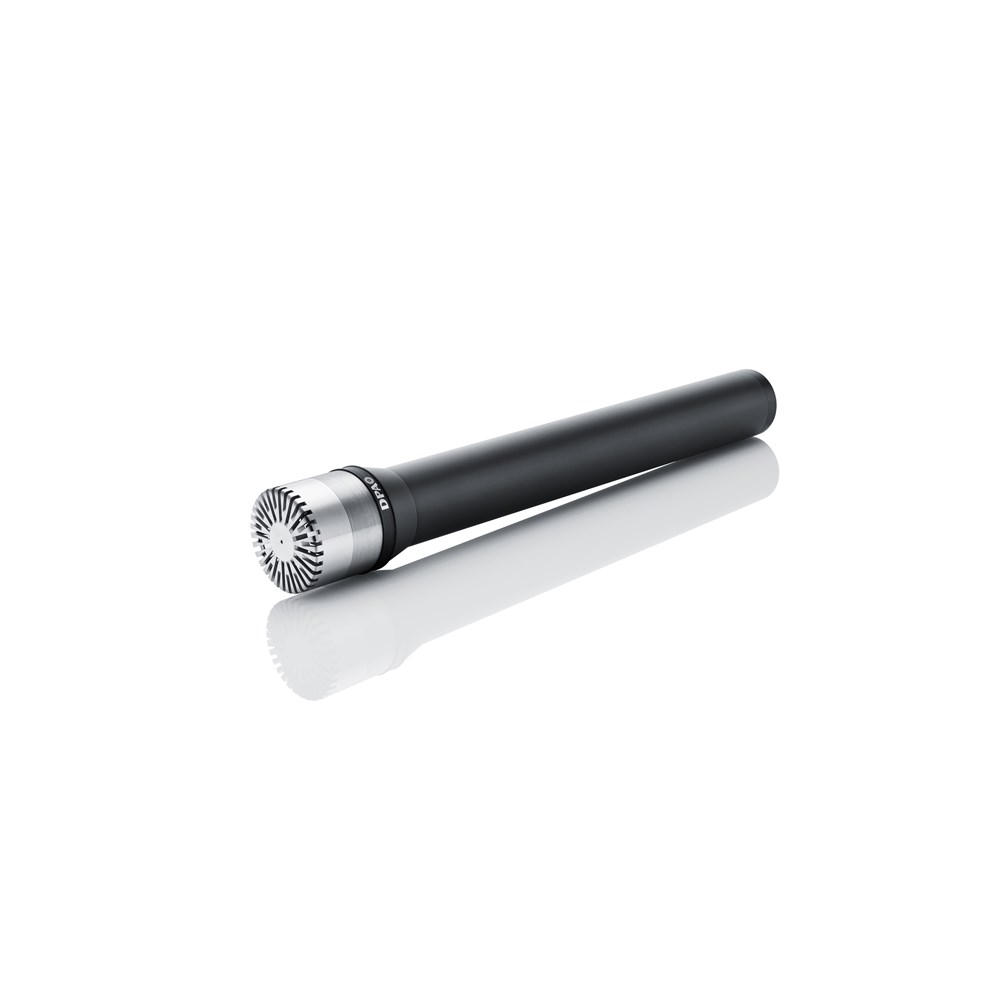

DPA d:dicate™ 4041-SP Omni Large Diaphragm Mic, P48

Product Code: DP-4041-SP

Brand
DPA Microphones
RRP $10,595.00


Unit of Measure
EACH


5 Year
Features

Large diaphragm with enhanced SPL handling

  • Handles high sound pressure levels with no distortion
  • Natural and transparent sound

This large diaphragm omnidirectional microphone capsule can be used with the Solid State Phantom Power. The diaphragm and housing are both made from stainless steel. This gives the capsule a unique immunity against ambient temperature variations. The precision-made back plate is placed in a quartz insulator for maximum electrical stability.
Technical Specifications
Brands DPA Microphones
Series d:dicate
  • Details
  • Downloads

Specifications

Directional pattern: Omni
Principle of operation: Pressure
Cartridge Type: 24 mm (1 in) condenser w. stainless steel diaphragm
Frequency range, ± 2 dB: 20 Hz - 20 kHz with 4 - 6 dB soft boost at 8 kHz
Sensitivity, nominal, ± 2 dB: 70 mV/Pa;-23.1 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Max. 8 dB(A) re. 20 µPa
Equivalent noise level, ITU-R BS.468-4: Max. 20 dB
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 86 dB
Total Harmonic Distortion (THD): <0.5% THD up to 120 dB SPL peak, <1% THD up to 126 dB SPL peak
Dynamic range: Typ. 118 dB
Max. SPL, peak before clipping: 134 dB
Output impedance: <200 Ohm
Cable drive capability: Up to 100 m (328 ft)
Current consumption: 2.20 mA
Weight: 190 g (6.7 oz)
Capsule diameter: 24 mm (1 in)
Connector: 3-pin XLR-M (Standard P48)

Product Documents

No documents available
