Microphones

This is a Special Order Item

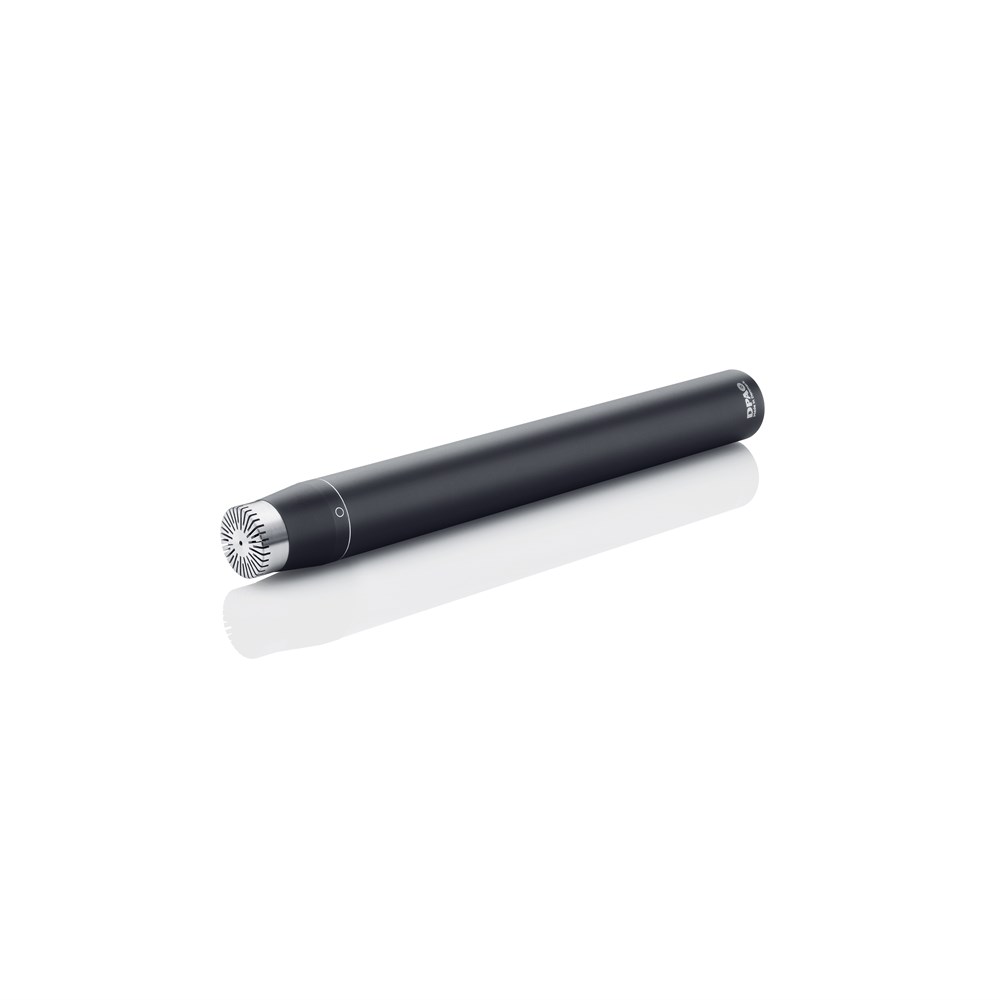

DPA d:dicate™ 4006A Omni Mic

Product Code: DP-4006A

Brand
DPA Microphones
RRP $5,048.00


Unit of Measure
EACH


5 Year
Features

The DPA 4006 Omni Mic offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and linear frequency response from 10 to 20 kHz (±2 dB).


This mic is linear and true in character. It has earned its status as a worldwide recording standard and is the most popular mic in DPA's Recording Microphone Series. This highly sought after mic has forged its enviable reputation over the past quarter of a century by repeatedly exhibiting its total transparency in any recording situation

Technical Specifications
Brands DPA Microphones
Series d:dicate
  • Details
  • Downloads
Specifications

Directional characteristics: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 10 Hz to 20 kHz
Frequency range, ± 2 dB: 10 Hz to 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz: 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 79 dB(A)
Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak
Minimum load impedance: 2 kohm
Dynamic range: Typ. 124 dB
Max. SPL, peak before clipping: 147 dB
Switchable attenuator: 0 dB / -20 dB
Output impedance: < 200 ohm
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): > 60 dB
Power supply (for full specifications): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
Color: Matte black
Weight: 163 g (5.7 oz)
Diameter: 16 to 19 mm (0.63 to 0.75 in)
Capsule diameter: 16 mm (0.63 in)
Length: 170 mm (6.7 in)
Output voltage, RMS: > 5 V
Polarity: +V at Pin 2 for positive sound pressure
Temperature range: -40 °C to 50 °C (-40 °F to 122 °F)
Relative Humidity (RH): Up to 90 %
Classification: Conforms to IEC 61672 Class I (with Near-field Grid DD0251)
Matching tolerance: ± 0.5 dB
Phase deviation for kit: < 5°
