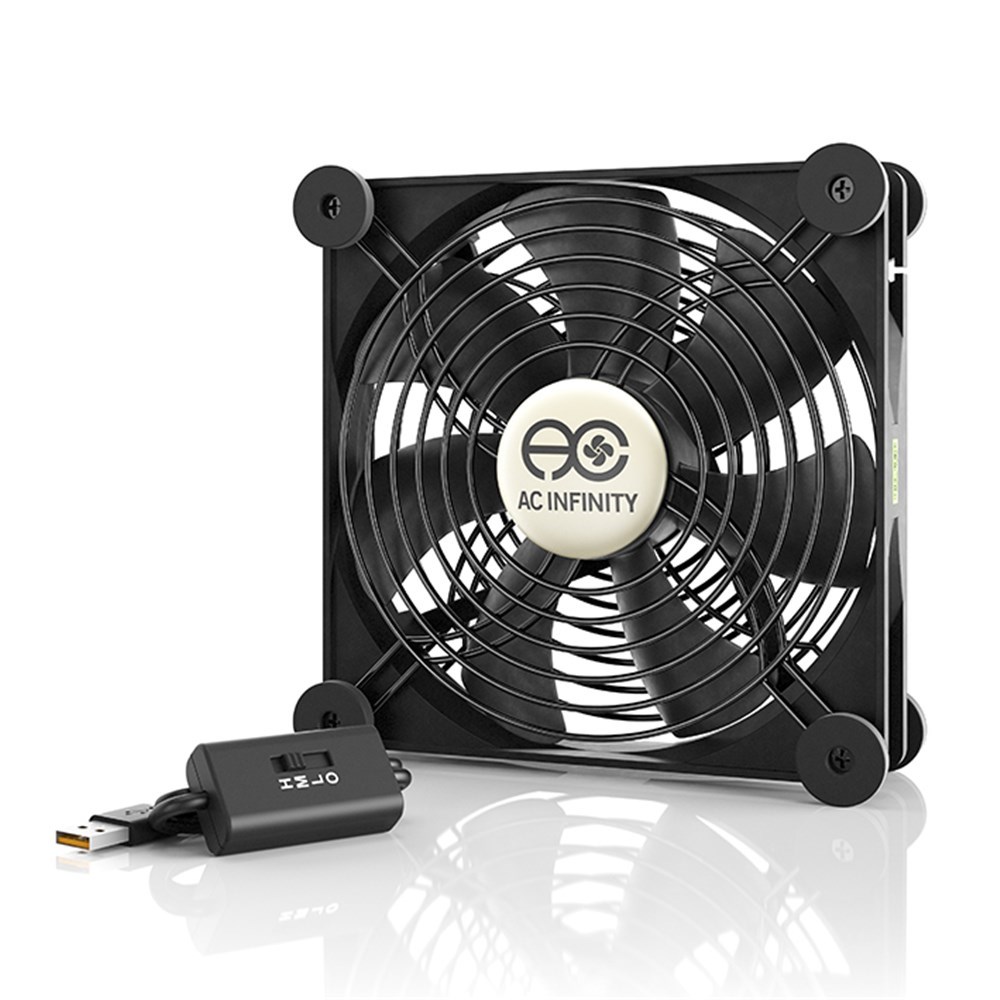

Multifan S4 Spot cooler 140mm fan 991 LPM @23dBA AC Infinity

Product Code: AI-MPF140A

Brand
AC Infinity
RRP $59.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands AC Infinity
Cooler type Spot Cooling
  • Details
  • Downloads

MULTIFAN S4, Single 140mm USB Fan / w Speed Control

Product Features

  • Ultra-quiet USB fan designed to cool various electronics and components.
  • Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.
  • Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
  • USB plug can power the fan through USB ports found behind popular AV electronics and game consoles.
  • Fan Size: 5.5 x 5.5 x 1 in. | Airflow: 57 CFM | Noise: 25 dBA

Product Description
The ultra-quiet cooling fan can be positioned to stand upright or laid flat to cool various electronics and components. Features a multi-speed controller with power switch. Includes eight large anti-vibration rubber feet and a 6-foot power cord. The USB plug can be plugged into the USB ports found behind popular electronics such as receivers and video game consoles. Each unit contains an additional USB port, up to four fans can be daisy chained together to share the same power source. Certified by CE, UL, TUV, and RoHS.

Speed Controller
The fan includes an in-line multi-speed controller with power switch to set the fan’s speed to optimal noise and airflow levels for various environments.

Connecting Additional Units
For electronics and components that requires more airflow, each fan unit can daisy chain additional MULTIFAN S series fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller (sold separately). MULTIFAN S1, S2, S3 and S4 contains one fan, and MULTIFAN S5 and S7 contains two fans.

Applications
This ultra-quiet cooling fan is popular in a variety of electronics and components such as receivers, DVRs, video game consoles, modems, computers, amplifiers, and other audio video equipment.



Technical Data

Product Identification
Manufacturer

  • AC Infinity Inc.

Product Name

  • MULTIFAN S4

Product Model

  • AI-MPF140A

UPC Code

  • 854759004365

Product Dimensions
Total Dimensions

  • 5.5 x 5.5 x 1.0 in. (14.0 x 14.0 x 2.5 cm)

Hole to Hole Distance

  • 4.92 x 4.92 in. (12.5 x 12.5 cm)

Screw Hole Size

  • Ø 0.17 in. (Ø 0.4 cm)

Cord Length

  • 72 in. (6 feet)

Product Performance and Technical Specs
Total Airflow

  • 57 CFM

Total Noise

  • 25 dBA

Speed

  • 1200 RPM

Operating Voltage

  • 3 to 7V DC

Power

  • 1.5 W

Current

  • 0.3 A

Wall Adapter Input

  • 100 to 240V AC

Static Pressure

  • 0.84 mm-H2O

Operating Humidity

  • 35 to 85% RH

Operating Temperature

  • 14 to 230°F

Fan Bearings

  • Dual Ball

L10 Life Expectency

  • 67,000 Hours

Fan Quality Approvals

  • UL, CE, TUV, RoHS

Product Documents

No documents available
