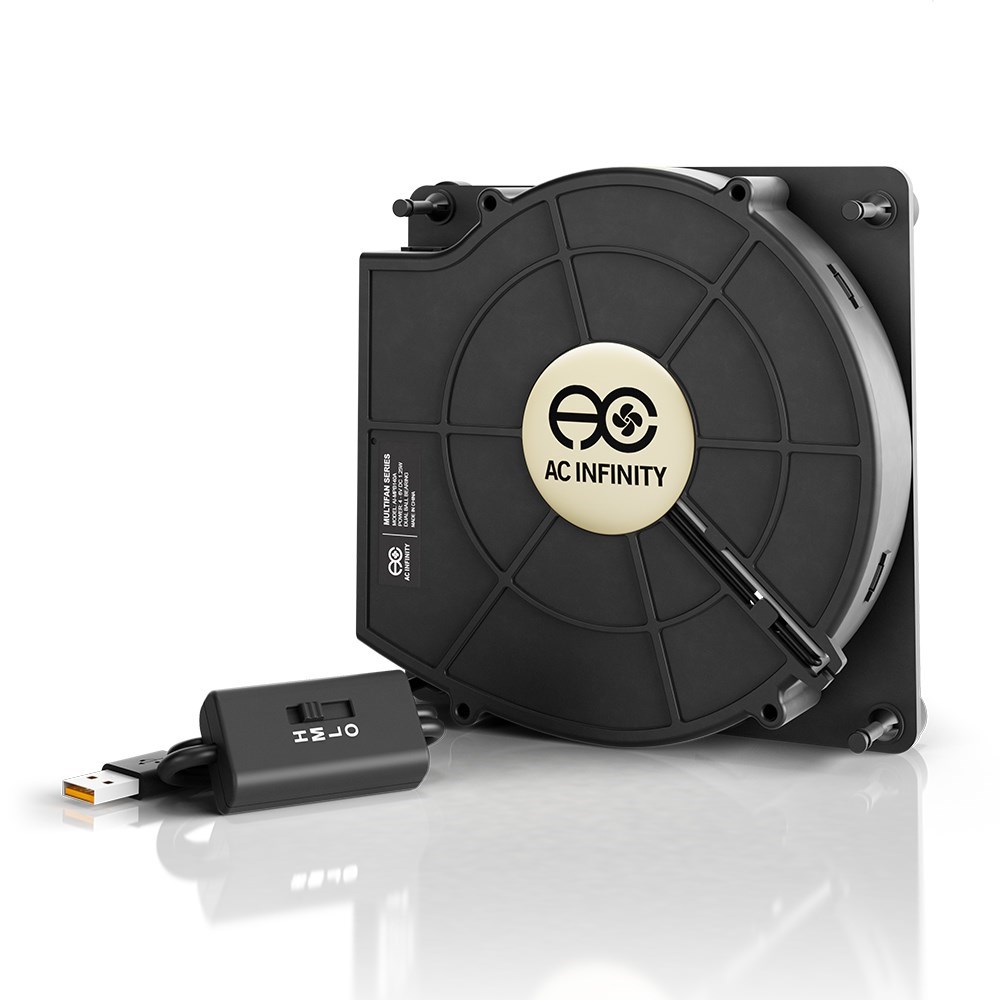

MULTIFAN S2, Single 120mm USB Slot Blower / w Speed Control

Product Features

• Quiet blower designed to be placed on top of various electronics to draw out heat
• Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.
• Low profile design pushes air out the rear, ideal for applications with limited clearance
• USB plug can power the through through USB ports found behind popular AV electronics and game consoles.
• Dimensions: 4.7 x 4.7 x 1 in. | Airflow: 35 CFM | Noise: 23 dBA |

Product Details
The MULTIFAN S2 quiet USB blower can be placed on top of various electronics and components. Features a multi-speed controller with three speed settings and off switch located on the cord. Six foot power cord contains a 5V DC USB plug that can power the blower through any USB port. Includes four silicone fan mounts that are attached to the bottom of the blower to absorb vibrations and to reduce noise. Each unit contains an additional USB port, up to four blowers can be daisy chained together to share the same power source. Rated at 67,000 hours, each dual ball bearing blower is certified by CE, UL, TUV, and RoHS.

Speed Controller
The blower includes an in-line multi-speed controller with power switch to set the fan’s speed to optimal noise and airflow levels for various environments.

Connecting Additional Units
For electronics and components that requires more airflow, each fan unit can daisy chain additional MULTIFAN S series fans. Up to four fans can share the same USB power source. MULTIFAN S1, S2, S3 and S4 contains one fan, and MULTIFAN S5 and S7 contains two fans.

Applications
This ultra-quiet blower is designed pull air from the bottom and push it out the rear. It is ideal for electronics and components positioned in a cabinet or rack with a limited clearance height. Popular applications include modems, routers, receivers, amplifiers, Xboxs, home theater, AV cabinets, and entertainment media centers.

Technical Data

Product Identification
Manufacturer

• AC Infinity Inc.

Product Name

• MULTIFAN S2

Product Model

• AI-MPB140A

UPC Code

• 854759004495

Product Dimensions
Total Dimensions

• 4.7 x 4.7 x 1.0 in. (12.0 x 12.0 x 2.5 cm)

Cord Length

• 72 in. (6 feet)

Product Performance and Technical Specs
Total Airflow

• 35 CFM

Total Noise

• 23 dBA

Speed

• 1200 RPM

Operating Voltage

• 3 to 7V DC

Power

• 1.05 W

Current

• 0.2 A

Wall Adapter Input

• 100 to 240V AC

Static Pressure

• 0.84 mm-H2O

Operating Humidity

• 35 to 85% RH

Operating Temperature

• 14 to 230°F

Fan Bearings

• Dual Ball

L10 Life Expectency

• 67,000 Hours

Fan Quality Approvals

• UL, CE, TUV, RoHS
