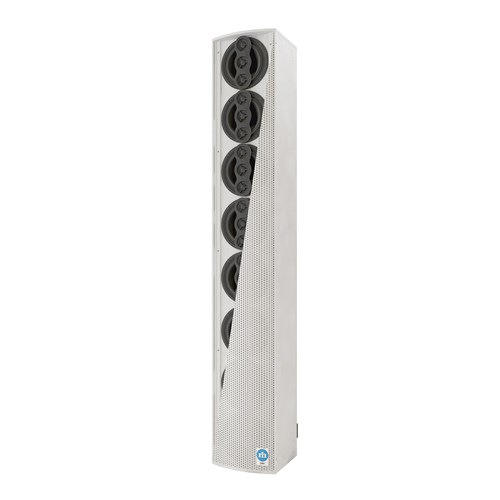

IC8-RN

Digitally Steerable Line Array Loudspeaker Systems

Since 2005 Renkus-Heinz have been leading the field in Digitally Steerable loudspeakers.

ICONYX has now been installed in thousands of project worldwide, from LAX International Airport in Los Angeles to the Great Hall of the People in Beijing, China.

Truly the most flexible, powerful and architecturally seamless, Digitally Steerable Column Array on the market Iconyx brings intelligible sound to even the most demanding acoustic environments.

IC8-RN
Advanced Steered Beam Technology

• Fifth Generation
• 8x 4" Coaxial Transducers each with three HF tweeters
• 8x Amplifier and DSP channels
• Beam control effective down to 800Hz
• Multiple beams and multiple acoustic beam centers
• Multiple Configuration Presets
• RHAON Network
• Slim, Low-Profile Design

ICONYX technology gives sound system designers the power to create a system to cover even the most problematic spaces. Up to four steerable beams can be individually shaped and aimed from a single IC8-RN column using the powerful software-controlled DSP.

Multichannel audiophile amplifiers power arrays of purpose-designed coaxial transducers, each with its own triple tweeter high frequency array. This triple tweeter "array within an array" design reduces the distance between HF sources for greatly improved high frequency performance with consistent, broad horizontal dispersion.

Technical Information

• Sensitivity: 1.0 V (for rated power output)
• Freq. Range: 120 Hz to 18 kHz
• Max SPL: 96 dB peak, @ 100 Ft. (30.5 meters); (3-octave bandwidth centered at 2 kHz)
• Power Consumption:
  • Idle: 60 Watts
  • 1/8 Power: 120 W (onset of limiting)
  • 1/3 Power: 420 W (hard limiting)
• Horiz. Dispersion: 150° up to 3 kHz; 120° above 3 kHz
• Vert. Opening Angle: 20°, 25° and 30°
• Vert. Aiming Angle: Adjustable from -30° to +30°
• Typical Throw: 66 Ft. (20 meters)
• Beam Control: Effective down to 800 Hz
• System Latency:
  • 8ms analog input to output
  • Preset 0
• No. Transducers: 8 coaxial transducers, each having triple tweeters
• No. Amp. Channels: 8
• Transducers: Coaxial with a 4” woofer and triple 1” tweeters, RH model SSL4-7; 25 W RMS, 50 W Pgm
• Inputs:
  • Analog Audio: 2 balanced inputs on Phoenix Connectors
  • AES/EBU: Phoenix Connector
  • RJ45 connector for Ethernet Control
• Computer Controls:
  • Gain, Mute On/Standby Input Selection
  • Compression
  • 8-Band Parametric EQ
  • Shelving &
  • Rolloff Filters
  • Delay
  • Preset Configuration Selection
• Status Indicators:
  • Power
  • Signal
  • Overdrive
  • Thermal
  • Mute
  • Input Pad
  • Preset Configuration Selection Readout
• Hanging Method: 2-point hinges or Metric M6 thread eye-bolts
• Enclosure: Extruded Aluminum with perforated steel grille
• Finish:
  • White paint standard
  • Optional finishes: black and
  • custom color paint
  • Weather resistant
• Weight: 36 Lbs (16.3 kg) Net
• Dimensions:
  • 37 11/16” H x 6 1/8” W x 7 5/16 D
  • (957mm x 156mm x 186mm)
  • (includes Mounting Hinges)
