Horn Driver 60W 100V HDT60 Australian Monitor

Product Code: AJ-HDT60

Brand
Australian Monitor
RRP $219.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands Australian Monitor
Speaker Type Horns and projectors
  • Details
  • Downloads

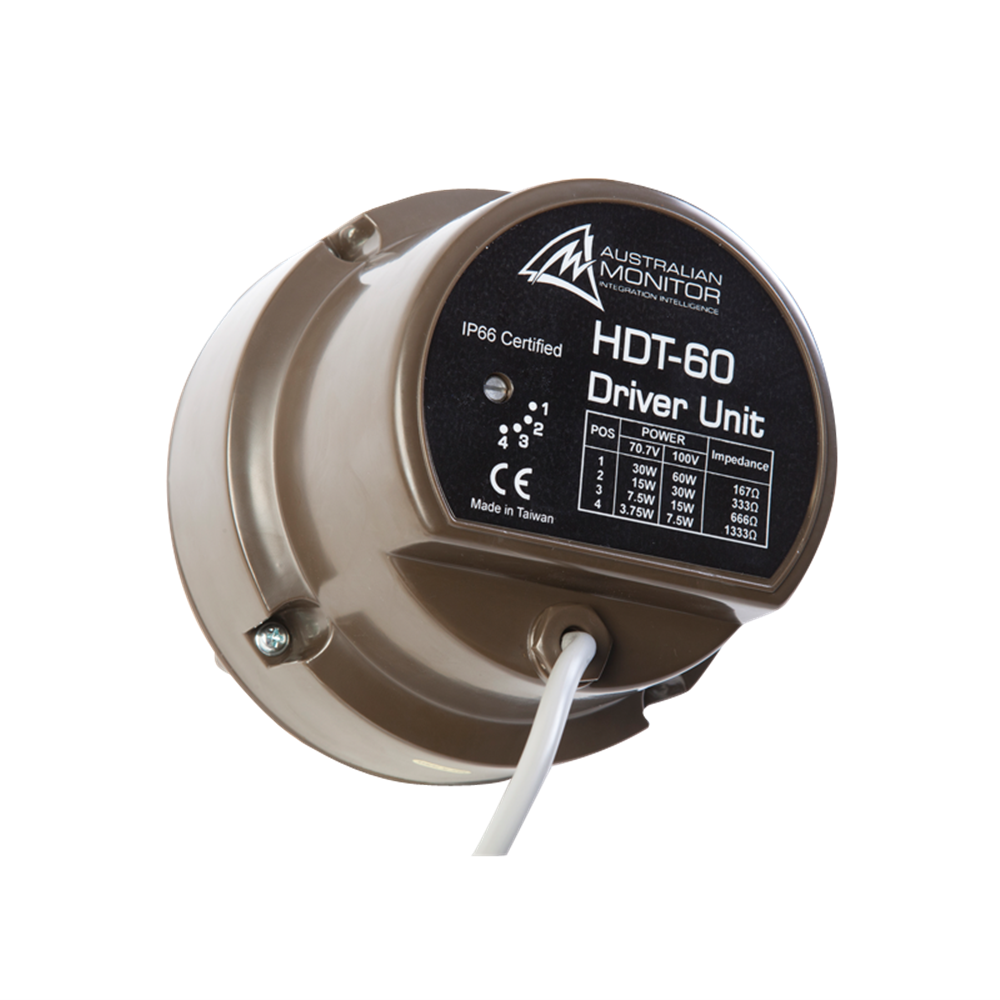

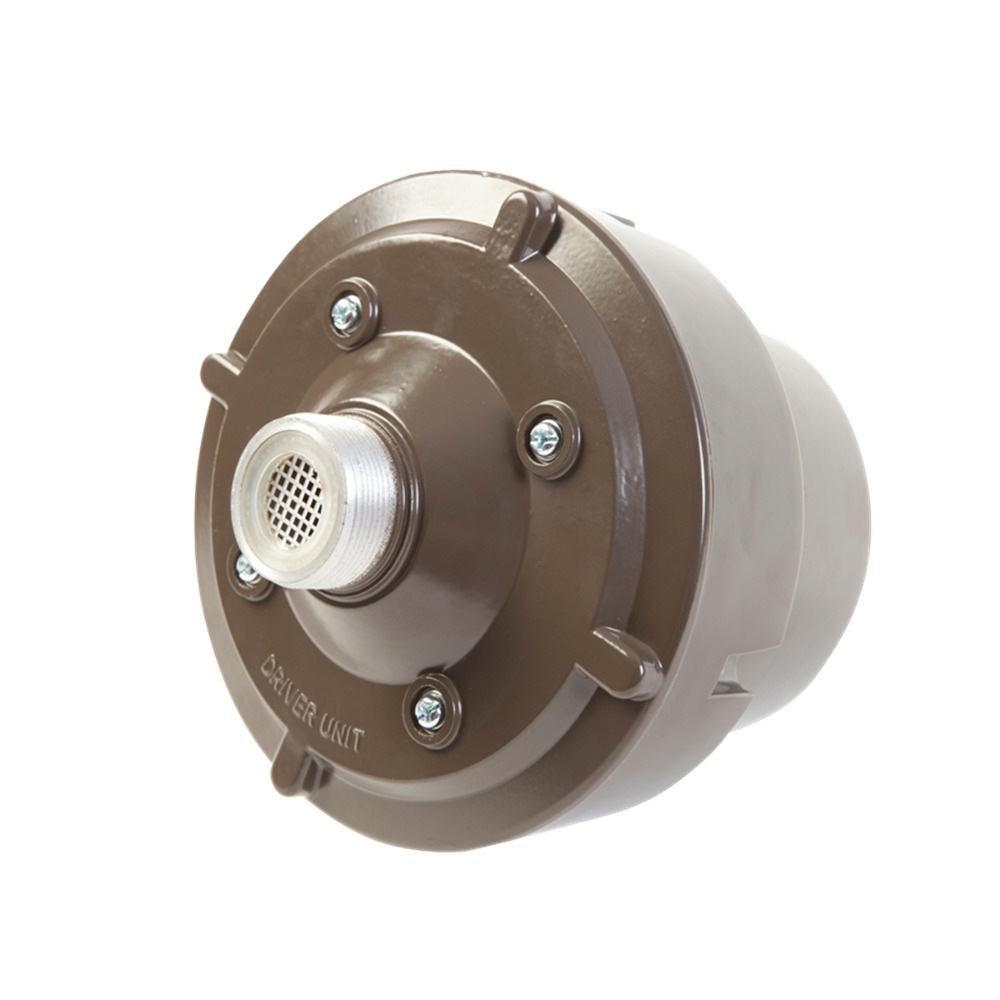

HDT60

Horn Driver

60W, IP66 Rated

Constant voltage 60 watt high output horn driver.

  • For use with H16 and HK16 horn flares
  • 60 watts @ 100v
  • Power taps at 7.5, 15, 30 and 60 watts
  • 200 Hz – 6800 Hz frequency response
  • 110dB SPL (1w/1m)
  • ABS and Aluminium construction
  • IP66 Rated
  • 2.4 kg

Specifications

  • Form Factor: Horn
  • Max Continuous Power: 60W
  • Tappings: 60W-30W-15W-7.5W-3.75W
  • Max Program Power: Unspecified
  • IP Rating: IP66
  • Max Peak Power: 69W
  • EASE Model: No
  • SPL 1W/1m: 110dB
  • Powered: Passive
  • Max SPL RMS: 128dB
  • Driver Diameter: N/A
  • Max SPL Peak: 128.5dB
  • Colour: Grey
  • Frequency Response (-3dB): 200Hz - 6.8kHz
  • Warranty: 5 years
  • Dispersion: N/A
  • Net Weight: 2.4 Kg
  • GTIN EAN: 9323383012189
