Powerpoint

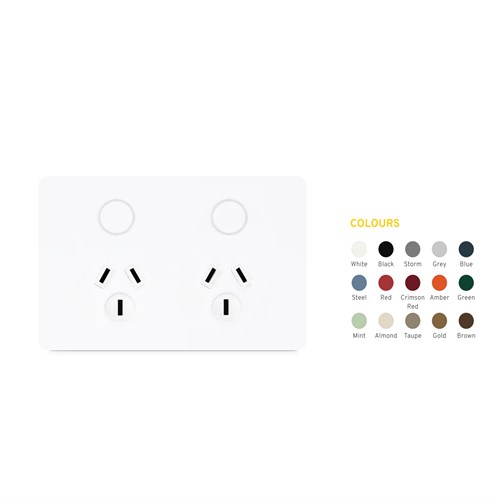

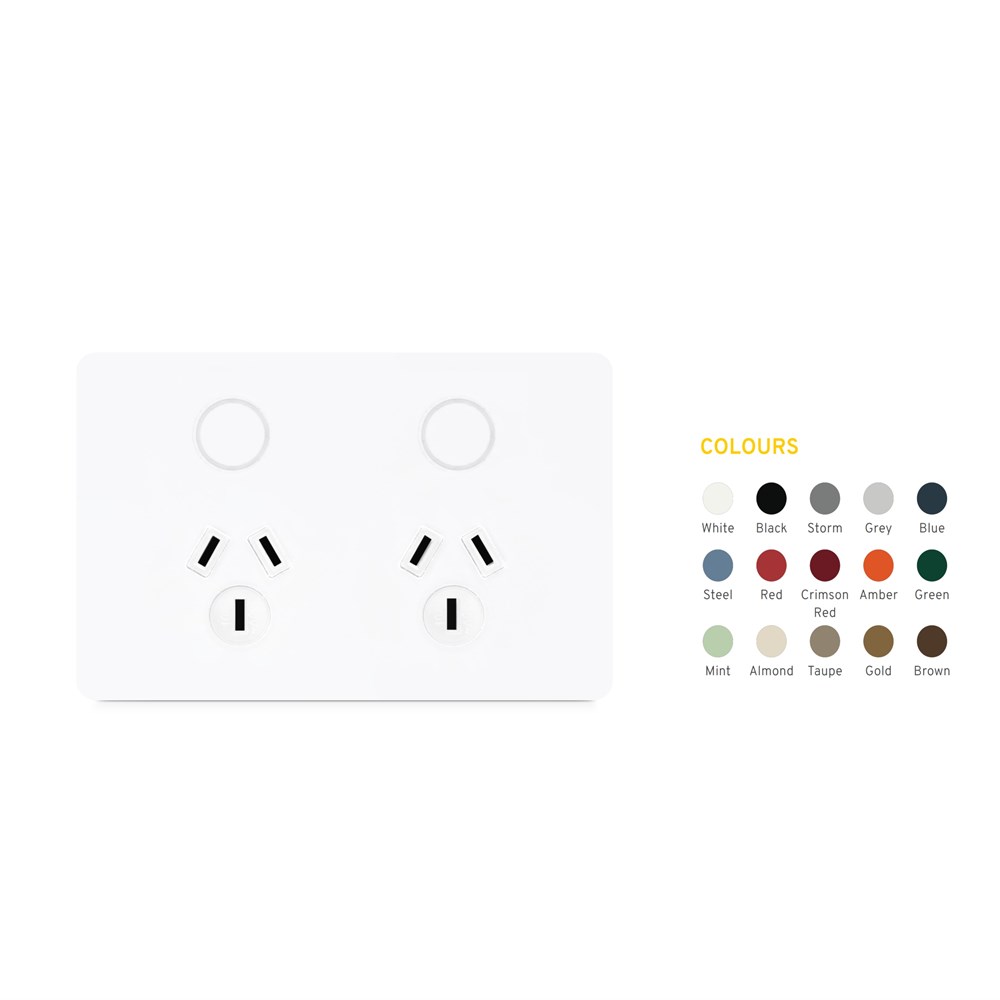

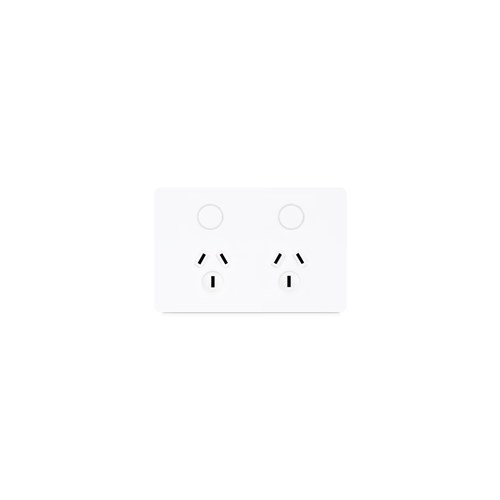

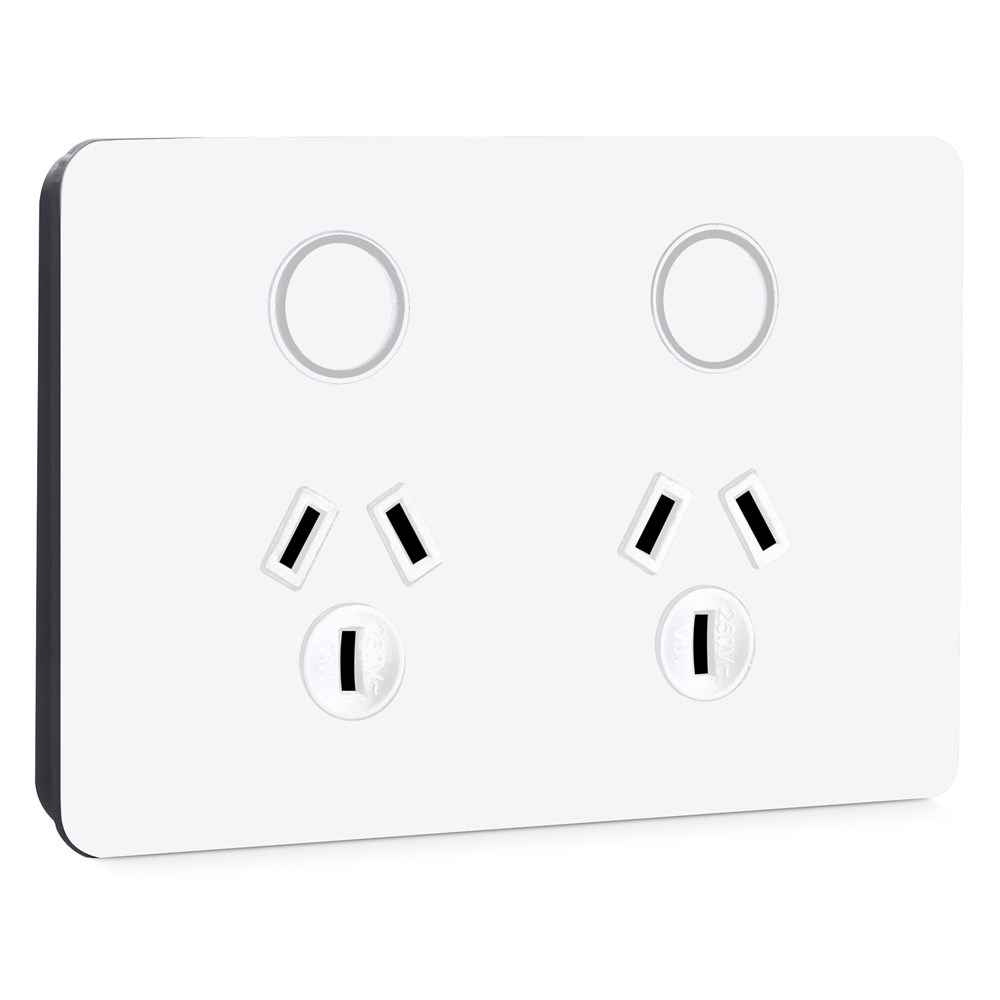

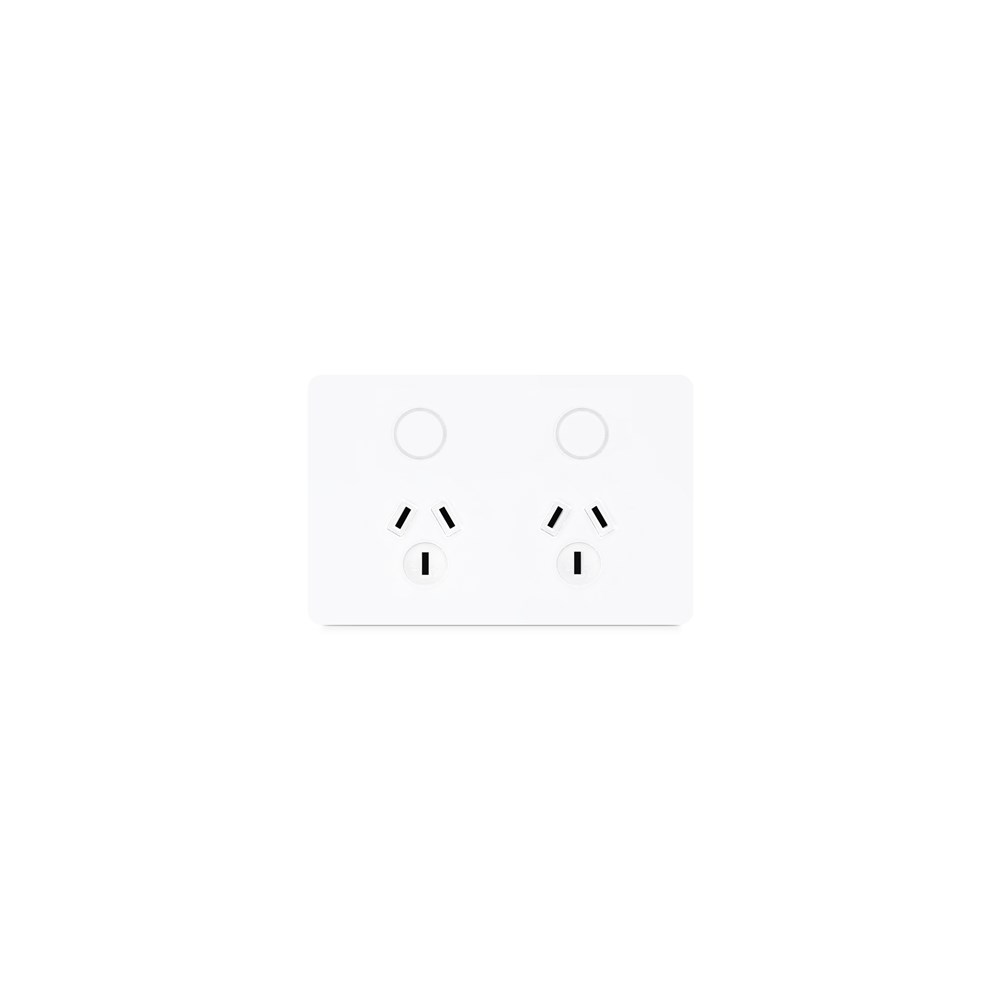

H2PPHB Double horizontal smart powerpoint

Slim (10mm plate depth), contemporary, glass-look design with choice of 15 luxury colours
Soft press push button operation with LED status indication
UV stabilised to avoid discolouring
Reliable Bluetooth® mesh network connectivity
Short press for ON/OFF control
Child lock enable/disable via local switch button or app
Individual control and energy monitoring for each oulet
Over-current, over-voltage, over-temperature protection
Auto-recovery if fault is removed (settings retained)
Groups, scenes, timers and scheduling functionalities
Fits standard first fix mounting accessories (e.g. C-clips, nail brackets, wall boxes)
Flush mounting centres (not recessed) for quicker installation
Backed off terminal screws and deep guided cable terminals allow for fast fitment of cables
Multiple mounting facilities at both 84mm and 100mm, along with corner fixing points
Insulated screw caps hinged to the grid plate to provide IP2X rating on mounting screws
Colour coded terminals for ease of identification
iOS and Android app setup and control

Power Supply: 220-250V a.c.
Operating Ambient Temperature: -20 to 40°C
IP Rating: IP20
Current Rating: 10A
Energy Monitor: 0.01A to 10A
Plate Depth: 10mm
Terminal Size: 16mm2 (accomodates 4x2.5mm2 cables)
Terminal Screw Type: Combination Flat/Philips head
Mounting Points: 84mm / 100mm and Corners
Mounting Screw Type: Combination Flat/Philips head
Frame Colour / Finish: White Matte / Black Matte
Plate Colour / Finish: 15 colours, Transparent
Housing Material: Acrylic / Polycarbonate (PC)
LED Indicators: Blue (ON) / Green (Child Lock)
Standards Complied: CoS SAA 183650, AS/NZS 60669.2.1, AS/NZS 60669.1, AS/NZS CISPR 15, AS/NZS 4268

Kasta
