Bundle Including:
- Harrison D510R 500 Serries Chassis
- Harrison 500 Dante Card
- Harrison D510MX Mixer Module

Ultra-flexible Harrison 500 Series System

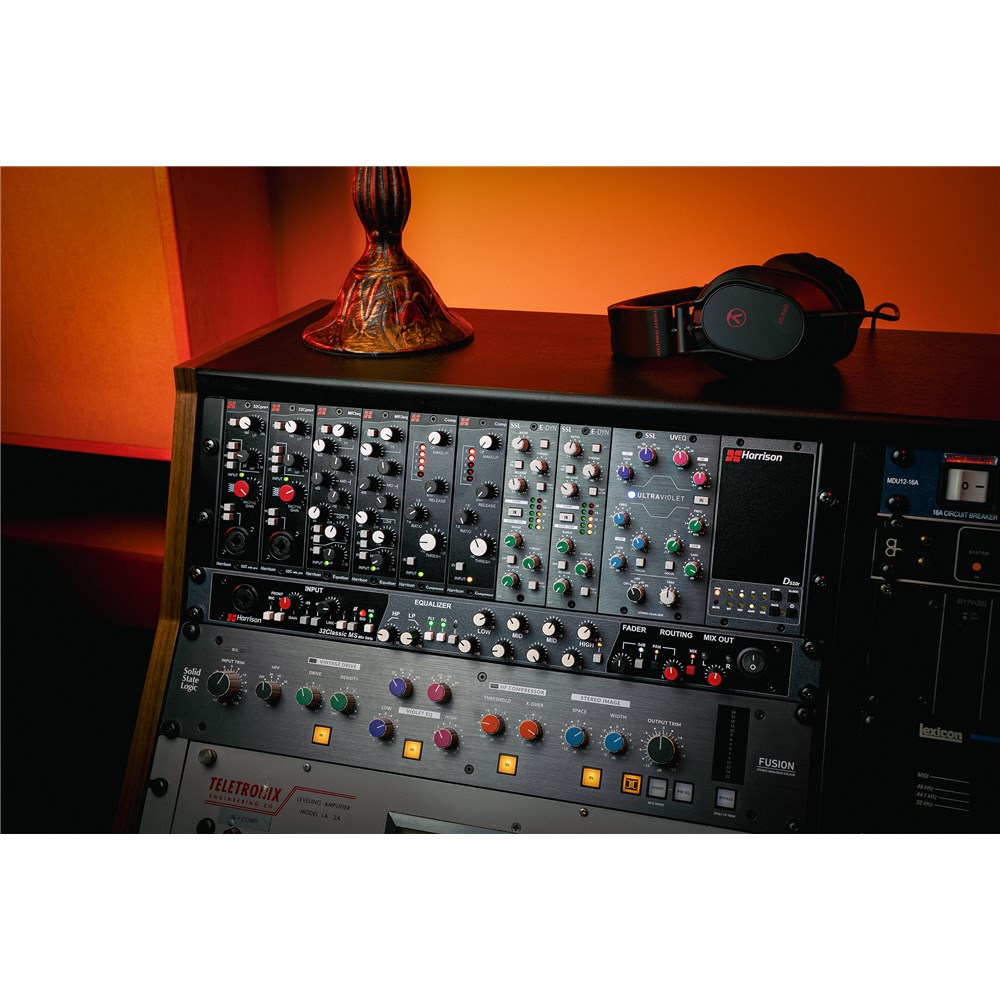

The Harrison D510r is an ultra-flexible ten-slot 500 Series rack system with an expandable analog summing mixer, Dante AoIP interface, or USB interface options. Built on a legacy that shaped the sound of legends like Michael Jackson, Led Zeppelin, and Steely Dan, Harrison continues to push the boundaries of music and audio production. Whether in the studio, on stage, or the big screen, Harrison’s design philosophy remains focused on delivering the sonic excellence and flexibility that modern artists, producers, and engineers need.

High-performance tracking rig with analog summing

Bring the depth and three-dimensional soundstage of Harrison’s analog summing to your studio or live sound console with the D510r rack and optional D510mx mixer card. Add eight 32Cpre+ 500 Series mic pre-modules and build the ultimate portable Harrison tracking rig or combine with EQ and Dynamics modules and create a custom eight-channel Harrison mixer, all in only 3U. Whether it’s a high-performance summing mixer for adding analog warmth to digital stems, summing together discrete outs from a drum machine and sampler, or accessing console-grade recoding performance in a portable tracking rig – the possibilities are endless and can grow with your production requirements one module at a time.

The only 500 series system with AoIP interface

The Harrison D510r is the only 500 Series rack to feature an optional Dante interface for easy integration into live sound production and studio facilities that use the Dante AoIP protocol. When paired with the Dante interface the Harrison D510 system transforms into a multifaceted 500 Series system, seamlessly integrating analog mic pre’s, dynamics, and EQ processing, or any 500 Series modules into your hybrid workflow.

D510dante AoIP interface

Audio over IP connectivity for live sound and studio
Built around 10 in/14 out, high-performance A/D & D/A converters for pristine audio quality, the D510dante card brings the power of Dante AoIP to your Harrison 500 rack. Easily integrate 500 Series processing into your mix bus, subgroups, or channel inserts on a Dante-compatible live sound console. In a hybrid studio setup, take full advantage of Dante’s flexible routing matrix to send and receive audio seamlessly across your modules.

D510dante specifications:

General

• 10 Inputs / 14 Outputs

ADC

• THD+N, 1kHz 24dBu: < 0.0008%
• Noise A-Weighted: < -95 dBu
• Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB

DAC

• THD+N, 1kHz 18dBu: < 0.006%
• Noise A-Weighted: < -85 dBu
• Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB
• 0 dBFS = +24dBu D/A channels 1- 10
• 0 dBFS = +18dBu D/A channels 11-14

Connectors

• 2 x RJ45 Network Ports (Primary and Secondary)
• BNC TTL Wordclock

Latency

• DA + AD <> Dante - 48kHz and 96kHz = 43.2 samples (0.9ms@48kHz, 0.45ms@96kHz)

D510mx Analog Summing Mixer

Build your custom 500 Series analog mixer
Pair the D510r with the optional D510mx mixer module to transform your system into a powerful 10x2 analog summing mixer. Designed to integrate into two slots of the Harrison D510r 500 Series rack, the D510mx gives you the flexibility to create stereo mixdowns from any of the eight remaining 500 Series module slots, alongside the two analog inputs to slots 9 and 10. With level and pan controls on each channel, plus dual independent headphone outputs with ‘blend,’ get the renowned weight and ‘3D’ depth that Harrison analog summing brings to productions while enhancing your headphone monitoring capabilities.

When used in combination with the D510dante audio interface card, the dual headphone outputs can create monitor mixes from either the direct analog output or from any connected device on the Dante network.

With an almost infinite number of configurations, the Harrison D510 rack paired with the D510mx mixer module can create an extremely powerful (and portable) eight-channel tracking system housed in only 3U – we said it was flexible!

D510mx Specifications:

D510mx Inputs

• Minimum Gain: <= -81 dB
  • Noise A-Weighted @ Min Gain: < -87 dBu



• Unity 0 dB
  • THD+N, 1kHz 10 dBu @ Mid Gain: < 0.003%
  • Noise A-Weighted @ No Gain: < -87 dBu

• Maximum Gain: 11.5 dB
  • THD+N, 1kHz 0dBu @ Max Gain: < 0.003%
  • Noise A-Weighted @ Maximum Gain: < -85 dBu



• Maximum Input Level: +24 dBu
• Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB
• Pan – 3dB Pan Law

D510dante Inputs (when optional D510dane interface is installed)

• Maximum Input Level: +24 dBu
• Frequency Response: 20 Hz – 20 KHz +/- 0.25 dB



Main Outputs

• Maximum Output Level - +24 dBu
• Minimum Gain: <= -85 dB
  • Noise A-Weighted @ Min Gain: < -97 dBu
• Unity 0 dB
  • THD+N, 1kHz 10 dBu @ Mid Gain: < 0.003%
  • Noise A-Weighted @ No Gain: < -87 dBu
• Maximum Gain: 9.5 dB
  • THD+N, 1kHz 10 dBu @ Max Gain: < 0.003%
  • Noise A-Weighted @ Maximum Gain: < -78 dBu

Headphone Outputs

• Maximum Output Level - +21 dBu
• Minimum Gain: <= -78 dB
  • Noise A-Weighted @ Min Gain: < -87 dBu
• Maximum Gain: 0 dB
  • THD+N, 1kHz 20 dBu @ Max Gain: < 0.004%
  • Noise A-Weighted @ Maximum Gain: < -82 dBu

Signal Metering

• 3x tri-colour LED signal presence
  • Green: >= -14 dBu, + 4 dBu
  • Orange: >= +4 dBu, +18 dBu
  • Red: >= + 18 dBu

Connectors

• TRS Stereo Headphone Output (2)
