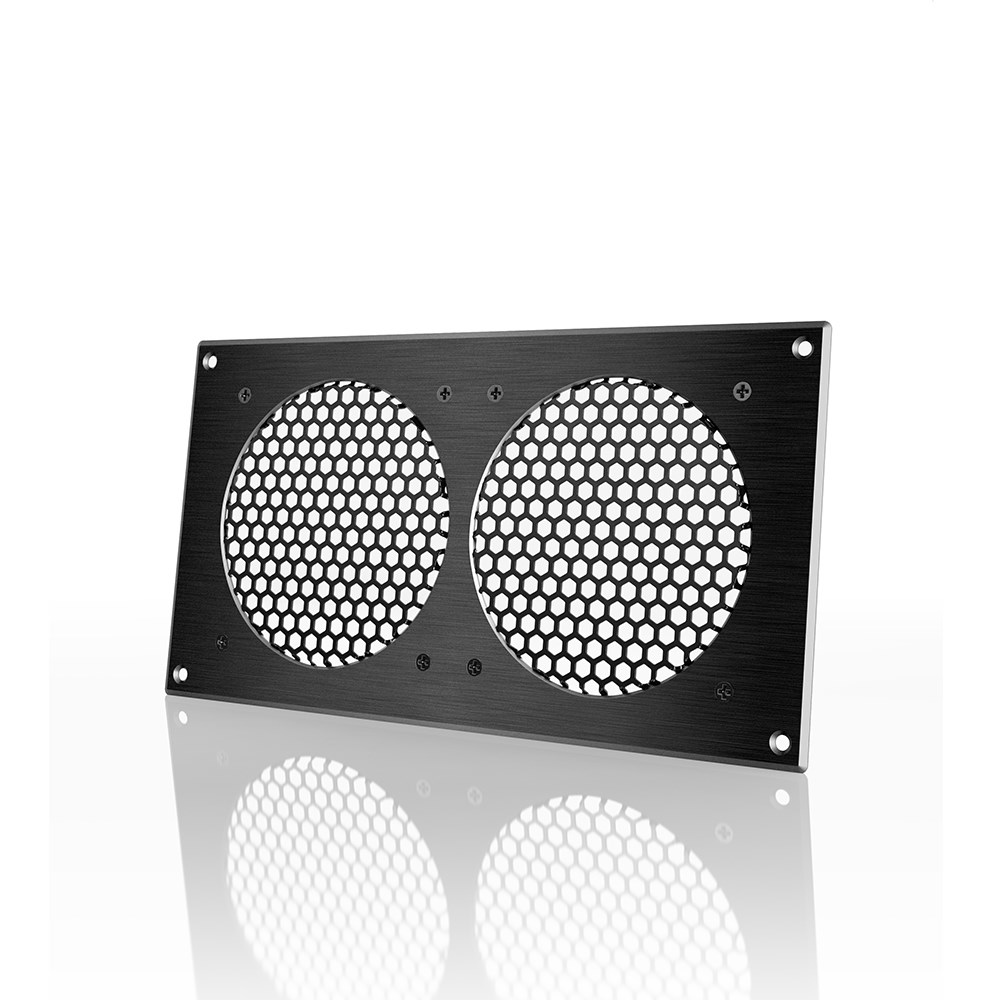

AC INFINITY, CABINET VENTILATION GRILL BLACK, 12 INCH

Product Features

• Designed to be installed into cabinets or walls to help increase ventilation
• Can also be used in conjunction with a fan system to act as an intake or exhaust vent
• Includes optional hardware to secure two 120mm fans onto the grill, and mount it into your cabinet or wall
• Features a CNC machined aluminum frame with a brushed black finish; and honeycomb grill insert
• Kit includes (4) wood mounting screws, (4) machine mounting screws with nuts, (8) fan mounting screws with nuts, and (2) 120mm spiral fan guards

Product Description
The Cabinet Ventilation Grill is a 11.7 by 6.1 inch metal grill that can be installed into cabinets and walls to help increase ventilation. It can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes optional 120mm fan guards and hardware to secure two 120mm fans, the most popular size for computers and DIY applications, onto the grill. To mount your fans and grill into your cabinet or wall, you would need to cut a square hole approximately 10.12 by 5.35 inches. Features a CNC machined aluminum frame with a brushed black finish; pre-secured to a steel honeycomb grill with four screws. Information on the additional included hardware can be found below.

Hardware
Includes four wood screws and four machine screws with nuts to mount the ventilation grill onto a cabinet or wall. Also includes four 1.25-inch long machine screws with nuts to mount a 120 mm fan with the included two 120mm fan guards onto the ventilation grill.

Technical Data

Product Identification
Manufacturer

• AC Infinity Inc.

Product Name

• Cabinet Ventilation Grill Black, 12 Inch

Product Model

• AI-FMF120A2

UPC Code

• 854759004457

Product and Mounting Dimensions

Total Dimensions

• 11.7 x 6.1 x 0.12 in (29.7 x 15.5 x 0.3 cm)

Required Mounting Hole

• 10.12 x 5.35 in (25.7 x 13.6 cm)

Hole to Hole Distance

• 10.94 x 5.35 in (27.8 x 13.6 cm)

Screw Hole Size

• Ø 0.197 in (Ø 0.5 cm)

Product Performance and Technical Specs
Number of Mountable Fans

• 2

Mountable Fan Size

• 4.7 x 4.7 in (120 x 120 mm)

Fan Guard Size

• 4.7 x 4.7 in (120 x 120 mm)
