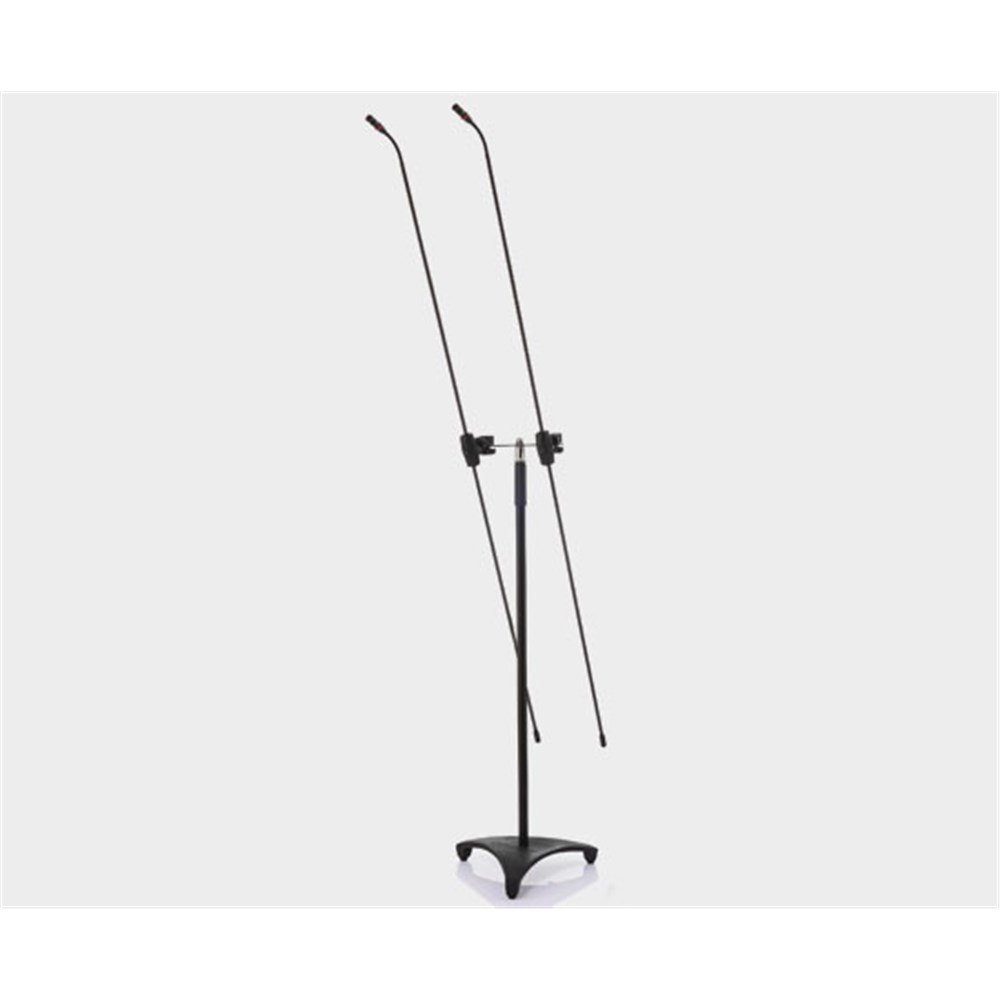

FGM-170 Carbon Dual

Dual microphone version of FGM-62 and FGM-170 series products.

This product has the same mics as GML series with omni-directional (GML-O), cardioid (GML-C) and supercardioid (GML-S) capsule module included. The very light carbon boom makes remote miking an easy job. A cable with mini XLR and XLR on each end is supplied. -10 dB pad and Low cut functions are provided.

Application:

• Choirs
• Presentation
• Also as normal mic stand

SPECIFICATIONS

Type

• Back Electret Condenser

Frequency Response

• 20~20,000 Hz

Sensitivity

• -36±3 dB* (15.8mV) 0dB
• =1V /Pa,1kHz

Directional Pattern

• Cardioid

Attenuation Switch.

• -10dB

Low Frequency Roll-off

• 80Hz

Impedance

• 100Ω

Max. SPL For 1% T.H.D.

• 140 dB

Signal To Noise Ratio

• 78dB

Power Supply

• 36~52VDC phantom power

Current consumption

• ≤3mA

Output

• 3-pin XLR (power module)
