Barix

Exstreamer M400 DANTE BAR20239406 Barix

Product Code: BX-BAR20239406

Brand
Barix
RRP $885.00


Unit of Measure
EACH



2 Year
Technical Specifications
Brands Barix
Product type Streamer
Series Exstreamer
  • Details
  • Downloads
  • Ordering

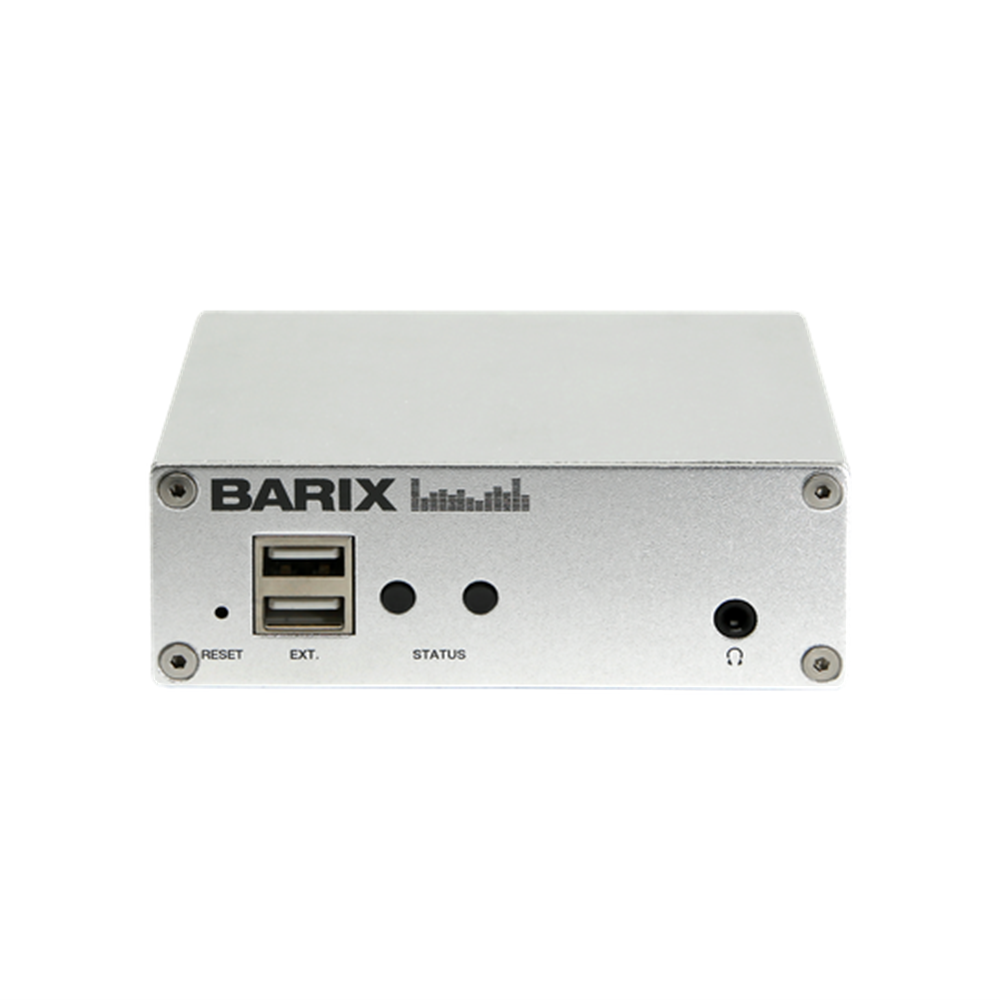

2023.9406P Exstreamer M400 Dante® NoPSU

Multiformat IP Audio Decoder with stereo line level audio output on RCA connectors

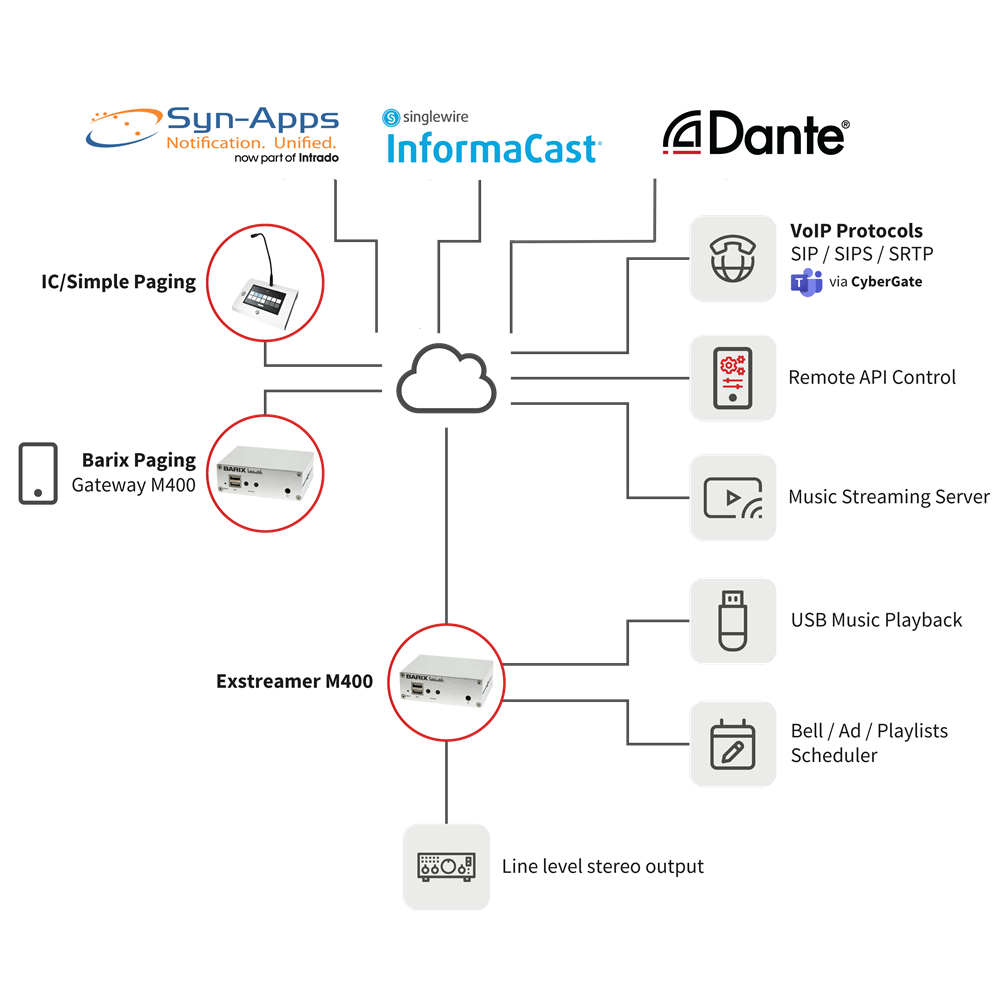

The Exstreamer M400 feeds your PA and turns it into an extensive Audio over IP system. A wide variety of audio environments, such as Dante ®, SIP, InformaCast and Syn-Apps are supported. Codecs include PCM, AACplus, MP3, OPUS, G.711, G.722 that can be streamed using HTTP and RTP. Audio files can be stored on the internal memory and their playback can be triggered via a simple UDP command. Thanks to the priority handler, the Exstreamer M400 can be configured to switch between sources according to one of the five priority settings and therefore eliminates the need for an audio matrix device. The M400 is a solid metal device, compact and easily installed. It is connected to your amplifier, DSP or audio mixer via a stereo output on RCA connectors. The configuration of the device is done via the local web interface.

  • Operation System: Embedded Linux based on Yocto
  • Network Interfaces
    1 x Ethernet (RJ45) Interface
    IPv4, IPv6 capable
    10/100 fdx/hdx, auto negotiation
  • Protocols
    TCP/IP, UDP, RTP, SRTP SIP, SIPS, HTTP, HTTPS, DHCP, mDNS/DNS-SD (Avahi), NTP
    Dante ® Support – Requires extra license
    Singlewire InformaCast compatibility – requires extra license
    Syn-Apps Revolution compatibility
  • CPU / Memory
    Barix IPAM400 Processor Module
    Quad-Core ARM Cortex™ -A7
    256MB DDR3 SDRAM
    16MB SPI Flash
    8GB SD-Card Flash
  • Audio Formats
    MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
    AAC-HE (AAC, AAC plus, AAC plus V2)
    PCM linear 16bit @44.1 kHz
    G.711, G.722
    Opus, WAV, OGG Vorbis
  • RS-232 Interface
    Serial Port
  • Audio Interface
    unbalanced L-R Line level output on RCA connectors
    Headphone connector on the front panel
  • User Interface
    Web interface for configuration
    2 x Multicolor LED Status indicators
    Reset & Factory Defaults Button
  • Power Requirements
    5VDC, 10W maximum on 5.5×2.1mm barrel connector (inner positive)
  • MTBF: > 200’000h
  • Measurement: 108x38x78.7mm 4.25×1.5×3.1 inch
  • Weight: 250g

Product Documents
