SYN-CTL-HUB Protocol Converter IP to RS-232,Relay & IR protocols

Product Code: WY-SYNCTLHUB

Brand
Wyrestorm
RRP $449.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands WyreStorm
  • Details
  • Downloads
  • Ordering

This versatile protocol converter is designed to integrate seamlessly with the Touch10 control pad, enabling the conversion of IP protocols to RS-232, Relay, and IR protocols over a wired LAN. It offers comprehensive control capabilities for various AV and automation devices while providing contact input detection and remote-control options via a network connection.

PROTOCOL CONVERSION
Effortlessly translates IP protocols to RS-232, Relay, and IR signals, enabling seamless integration of legacy devices and modern network-based control systems over a wired LAN. This capability ensures compatibility with a wide range of AV equipment, simplifying control and reducing the need for additional hardware.

IR CONTROL
Features a dedicated IR TX port for precise infrared device control. Ideal for managing IR-based devices such as TVs, projectors, and AV receivers. The system supports customizable IR commands, allowing users to program specific functions for various devices, enhancing flexibility in AV setups.

CONTACT INPUT CONNECTION
Equipped with a contact input port for real-time monitoring of sensor signals, such as motion detectors, door sensors, or environmental triggers.

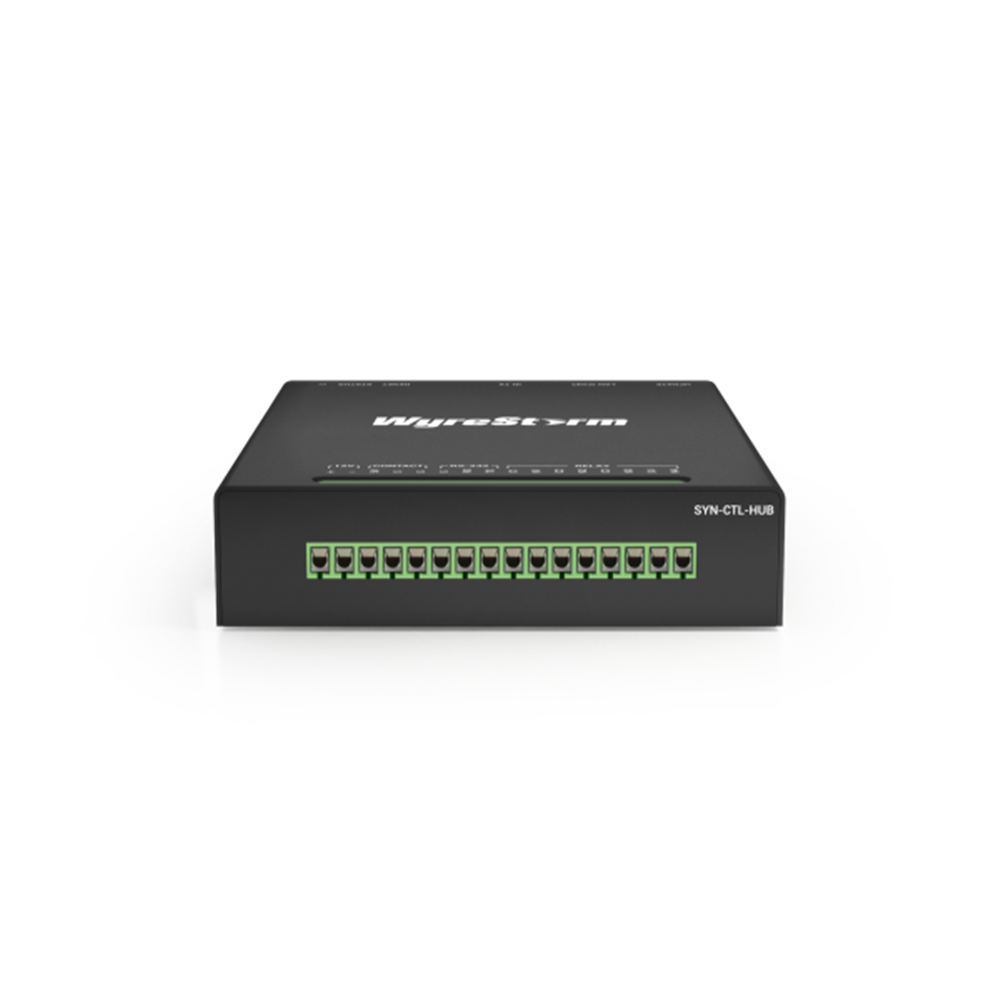

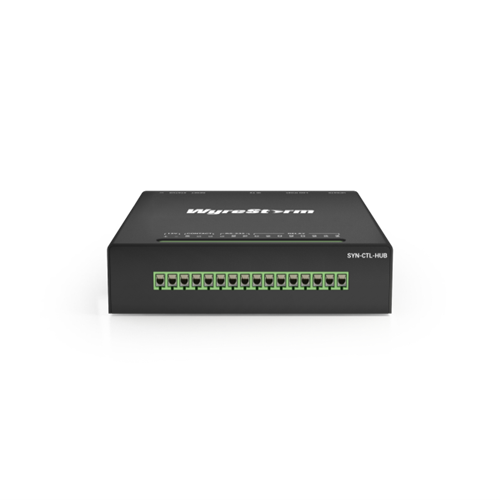

RELAY CONTROL
Includes four relay ports designed for reliable control of relay-based devices, such as projection screens, motorized curtains, and roller shutters.

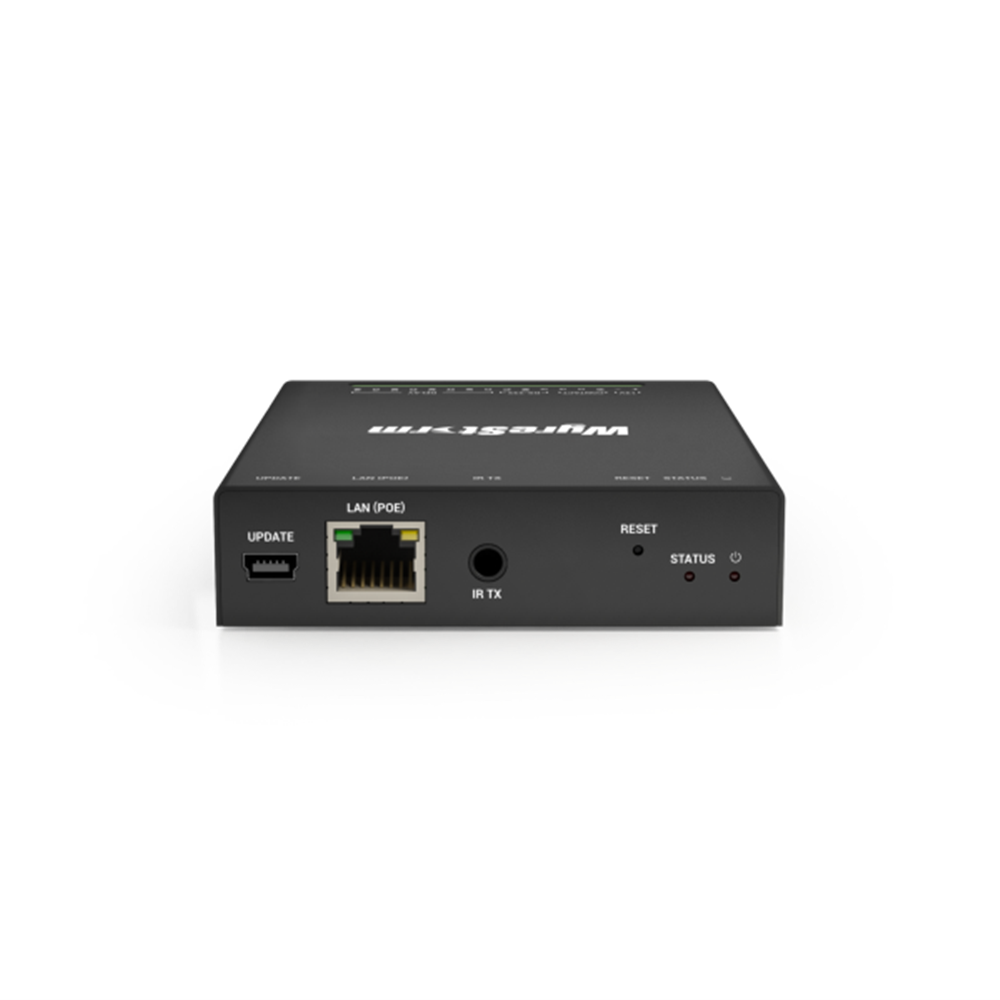

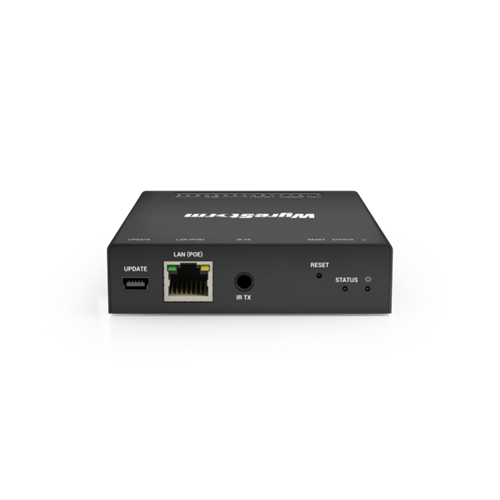

RJ45 CONNECTION
Offers an Ethernet port for robust network integration, allowing remote control and configuration over a wired connection. Supports Power over Ethernet (PoE), eliminating the need for a separate power supply and simplifying installation.

NETWORK ISOLATION
Fully compatible with the Touch10 control pad offering versatile control and seamless integration with various AV systems. The Touch10 control pad delivers an intuitive, touch-based interface, allowing users to easily control devices

Technical Specifications
AUDIO

  • I/O Connections - 1x LAN (POE), 1x UPDATE (Mini USB Port), 1x IR TX port, 1x Contact Port, 4x RELAY Port, 1x RS-232, 1x DC 12V, Button - 1x Reset, LED - 1x Status, 1x LED

CONTROL

  • Control Method - LAN (Telnet API)
POWER
  • Power Supply - PoE / DC 12V 0.5A / DC 5V (USB)
  • Max Power Consumption - 2.5W
Additional Features
  • Compatible with Touch10 control pad and Telnet API for versatile control solutions
