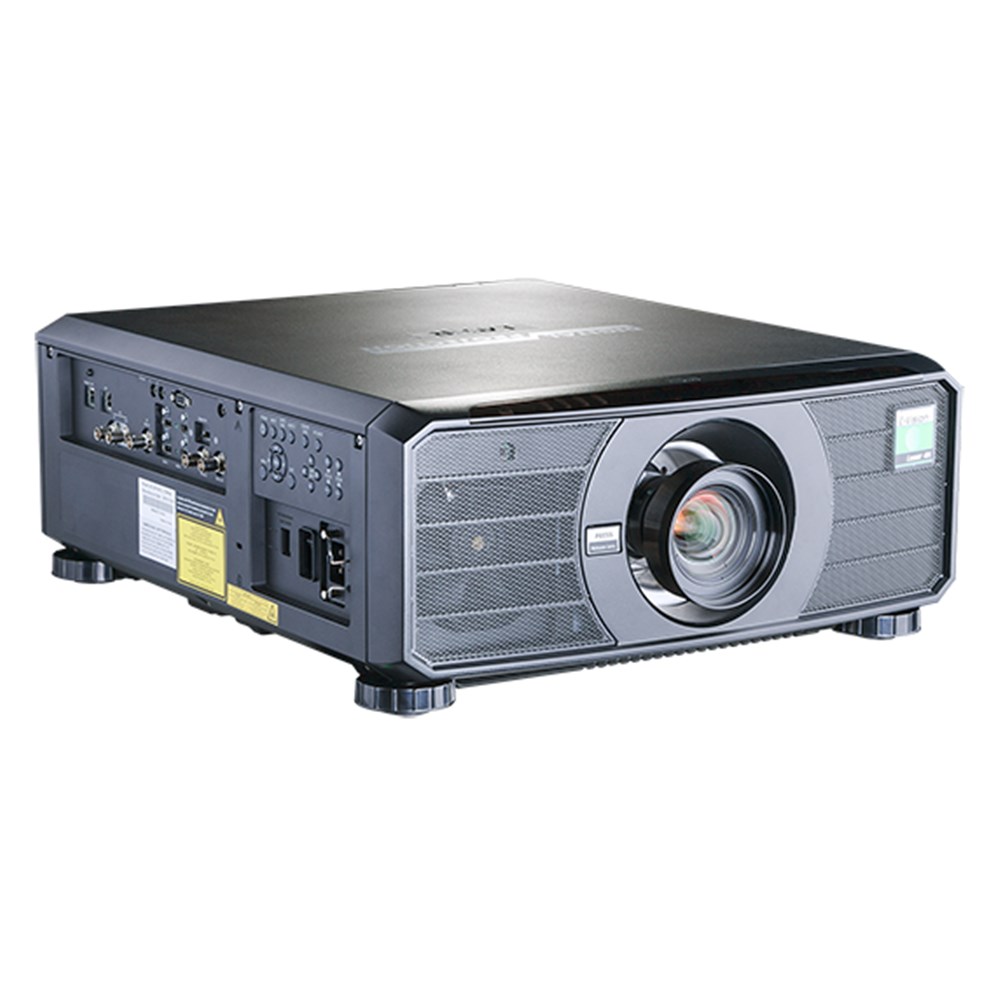

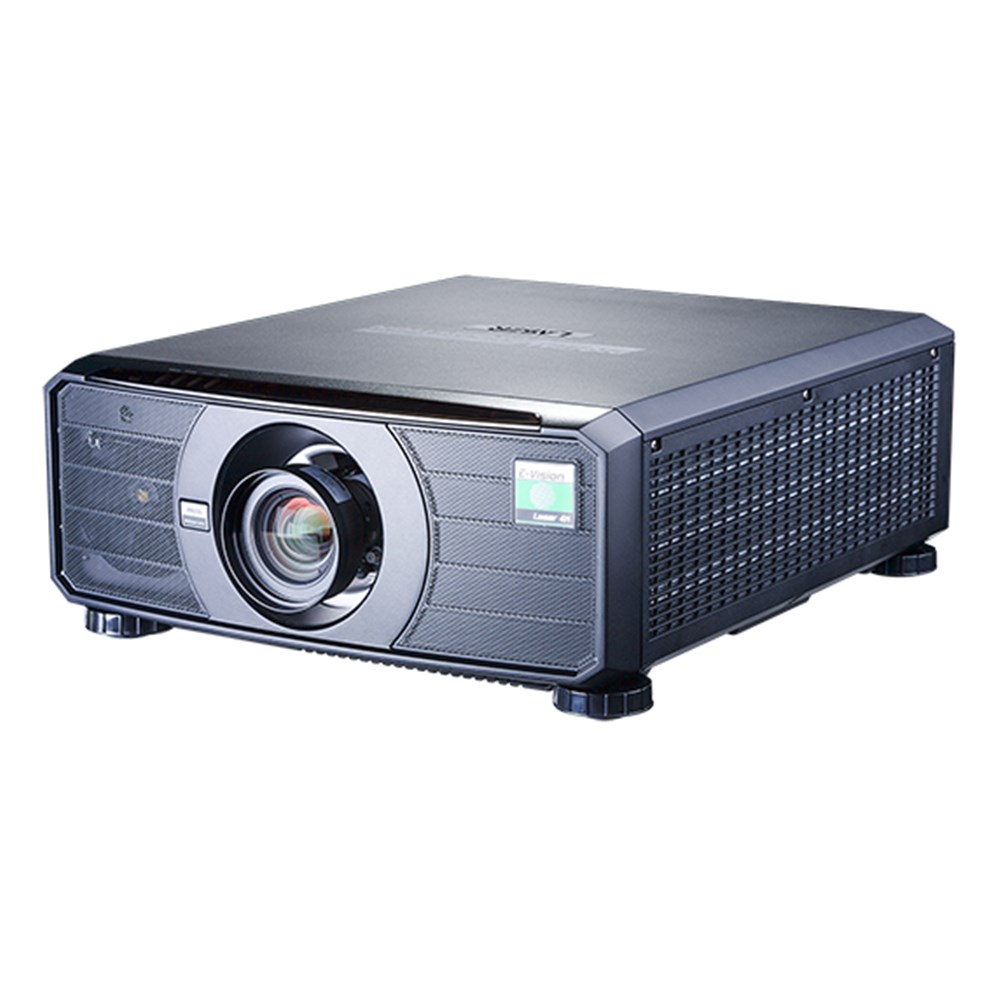

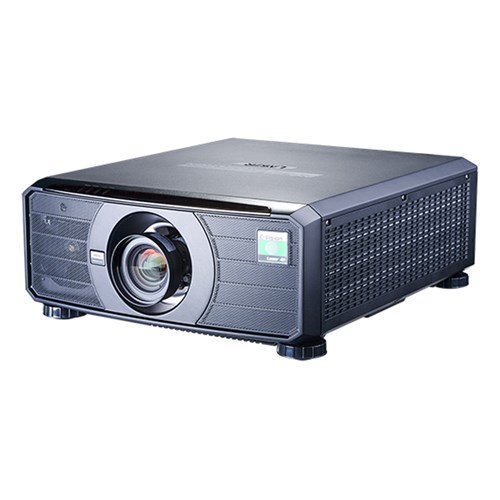

E-Vision Laser 4K-UHD Black

7,000 ANSI / 7,500 ISO Lumens | Contrast Ratio: 10,000:1 (Dynamic Black) 1,000:1 native | Part Number: 118-150

Colour System: DMD Specification:

• Laser Phosphor with colourwheel

Display Type:

• 1 x 0.67" WQXGA+ TRP UHD DMD™

Display resolutions

• 4K-UHD (3840 x 2160) or WQXGA+ (2716 x 1528)
• 8.3 megapixels on screen at 4K-UHD
• Fast transit pixels for smooth greyscale and improved contrast.

Aspect Ratio:

• 16:9

Fill Factor

• Not applicable: Smooth Picture DMD™

Key Features

• Video & Graphics Processing
• Two projectors in one - 4K-UHD and WQXGA+.
• DisplayPort 1.2.
• 2 x HDMI 2.0.
• 2 x HDMI 1.4b for Dual Pipe processing and Frame Sequential 3D format.
• Sequential Processing: 3D via single HDMI 1.4b input.
• Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs.
• Synchronisation of active glasses.
• 3G-SDI with loop-through.
• DICOM simulation mode.

Geometry Correction

• Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation.
• Non-linear warp.
• Digital zoom, pan and scan.
• Blanking control for custom input window sizing.
• Scaling available for fixed aspect ratio screens.
• Unscaled processing for pixel mapped display.

Edge Blending

• Blending control available for all sides with width control.
• Correction for non-active pixels at the edge of the display.

Picture in Picture

• Two sources can be displayed simultaneously using 2D inputs: either picture in picture (PIP), or side by side (PBP), with original aspect ratios maintained.

HDBaseT® Interface

• Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
• Allows projector to be placed up to 100m from source with low cost cabling.
• Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4

Colour Processing

• Four colour modes available.
• Powerful seven point colour correction for accurate colour matching with presets.
• Easy colour temperature selection.
• Manual seven point colour adjustment.
• Traditional lifts and gains.

Projector Controller Software

• Intuitive user interface for network control.
• Simultaneous control of user-defined groups of projectors.
• At-a-glance monitoring of projector status.

Projector Automation

• Real-time clock provides daily on/off automation.
• E-mail alerts for system status.

Source Compatibility:

• 2D graphics standards up to 4K-UHD 3840 x 2160 resolution at 60Hz via HDMI 2.0, HDBaseT (4:2:0) and DisplayPort inputs.
• 3D graphics standards up to WQXGA at 120Hz DualPipe via HDMI 1.4b inputs.
• 3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.

WQXGA+ mode

• 2D sources up to WQXGA+ at 120Hz can be displayed scaled to fit WQXGA+.
• 3D sources up to WQXGA at 120Hz can be displayed scaled to fit WQXGA+.

4K-UHD mode

• 2D sources up to 4K-UHD will be displayed scaled to fit 4K-UHD.

Auto mode

• Sources greater than WQXGA+ will be displayed scaled to fit 4K-UHD.
• Sources up to WQXGA+ will be displayed scaled to fit WQXGA+.

Inputs/Outputs

Video & Computer

DisplayPort 1.2 (2D) x1
HDMI 1.4b (3D) x2
HDMI 2.0 (2D) x2
3G-SDI in (2D) x1
3G-SDI out x1
HDBaseT (see LAN) (2D) x1

Communication & Control

3D Sync Out x1
3D Sync In x1
LAN x2
RS232 x1
Wired Remote x1
12V Trigger x2
3D Sync IR Out x1

NOTE: One of the LAN ports is shared with HDBase-T.

3D Formats Supported

• Frame Sequential
• Dual-Pipe

HDTV Formats Supported

• 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz, 100Hz, 120Hz)
• 1080i (50Hz, 60Hz)
• 720p (50, 60Hz)
• 2K (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
• 4K-UHD (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)

Computer Compatibility

2D

• 4K-UHD up to 60Hz.
• WQXGA+ up to 120Hz.

3D

• Supported formats will be displayed within WQXGA+.

Bandwidth

• 498 megapixels per second via DisplayPort and HDMI 2.0.

Remote Control

• Addressable IR remote control, wireless and wired.
• On-Board keypad

Automation Control

• Crestron RoomView® Connected
• PJLink Class 1
• LAN
• RS232
• AMX (Device Discovery)
• Served web pages (projector status, projector control, Crestron RoomView®, network settings, alert mail setup, time setup, error log, On Screen Display)

Colour Temperature

• 3200K to 9300K

illumination Type

• Laser Light Source

Typical illumination Life

• 20,000 hours

Lens Mount

• Motorised and programmable shift, zoom and focus.
• Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).

Mechanical Mounting

• Front/Rear Table
• Front/Rear Ceiling
• Adjustable Front/Rear Feet

Orientation

• Table Top or Inverted: Yes
• Pointing Up: Yes
• Pointing Down: Yes
• Roll (Portrait): Yes

Weight (Chassis Only)

• 28.15 kg

Dimensions

• L: 58.0 cm W: 50.0 cm H: 21.1 cm
• L: 22.8 in W: 19.7 in H: 8.3 in

Safety & EMC Regulations

• CE, FCC Class A, CCC, UL/cUL, FDA CB, KC, EAC, CEL, CECP
