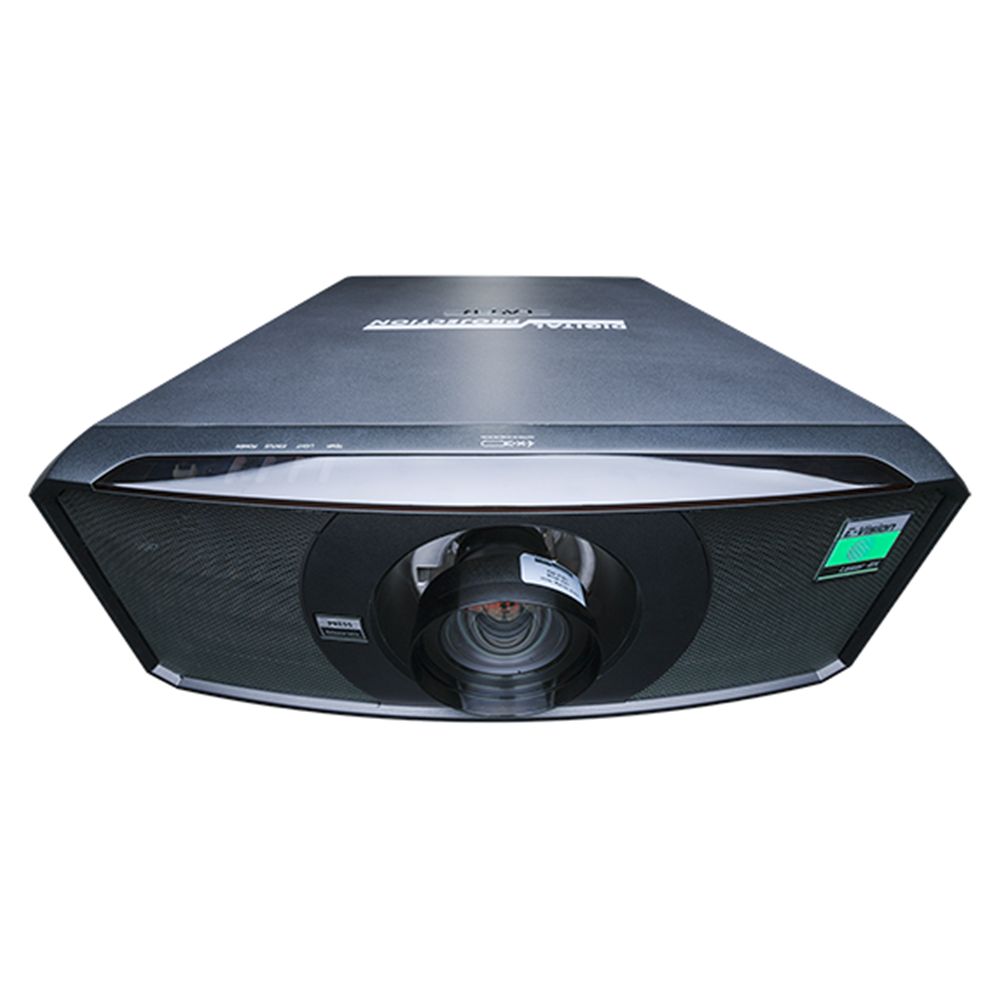

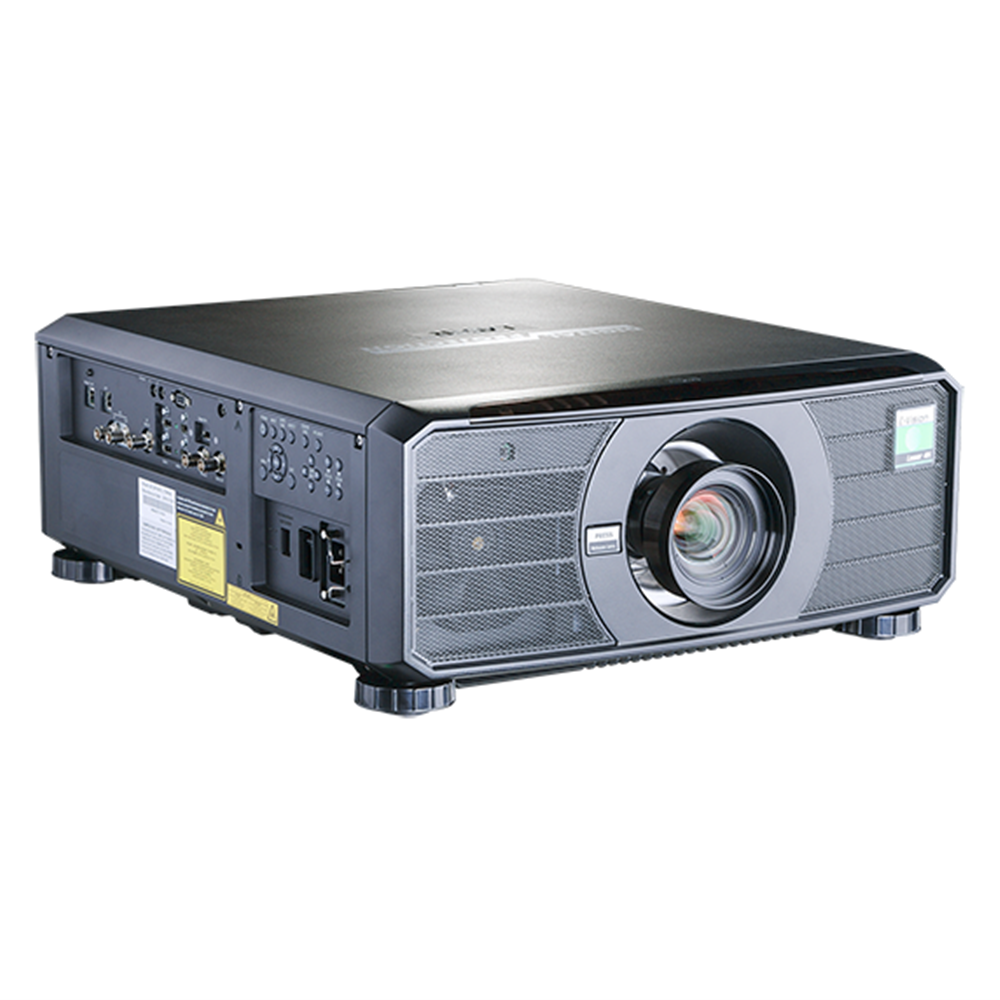

E-Vision Laser 15000 WU

• 15,000 Lumens
• 10,000:1 Contrast
• COLORBOOST + Red Laser
• Sealed Optics
• WUXGA Resolution
• 20,000 Hours Illumination
• Laser Light Source
• Sealed Optics
• Part Number: 120-994

The E-Vision range of single-chip DLP projectors has taken another huge leap forward in brightness with the introduction of the 15,000 Lumen E-Vision 15000.

Like other recent additions to the E-Vision range, the E-Vision 15000 employs Colorboost + Red Laser Technology. Already renowned for being a robust, reliable workhorse, the latest generation of this compact, lamp-free projector utilises Colorboost+Red technology to create the most realistic and beautifully saturated colours ever seen from any high-brightness 1-Chip DLP Projector. With new intelligent processing, colour performance of the E-Vision Laser 15000 is ever closer to that of a 3-Chip DLP projector.

New to the E-Vision 15000 is Art-Net control that allows easy integration into existing lighting installations, making this E-Vision powerhouse projector ideal for everything from live events to visitor attractions.

The E-Vision 15000 WU has sealed optics and uses liquid cooling with radiators to remove energy to the outside environment. The optical system, from the laser light source up to the lens is completely sealed and can be considered IP60 rated. This ensures that light output and colour performance will not be degraded due to the ingress of dust. Another advantage of liquid cooling via radiators is that the projector is completely filterless. This greatly reduces maintenance requirements when compared to many competitive products where replacement or cleaning of filters is a regular necessity.

Details

• Colour System:
  • Blue and Red Lasers with Phosphor wheel
• DMD Specification:
  • 1920 x 1200 pixels native display.
  • Fast transit pixels for smooth greyscale and improved contrast.
• Aspect Ratio:
  • 16x10
• Fill Factor:
  • 87%

Key Features

• Red Laser Assist
  • Uses blue and red laser diodes for increased colour fidelity and highly accurate colours
• Video & Graphics Processing
  • HDMI 1.4b for Side by Side, Frame Packing, Frame Sequential & Top Bottom 3D formats.
  • Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources.
  • Triple Flash processing for 24Hz 3D input (Frame Packed and Dual Pipe 3D)
  • Dual Pipe Processing: Two sources in parallel for Left and Right eyes.
  • Synchronisation of active glasses.
  • 3GSDI with loop-through.
  • 24p and 1080p native display.
  • DICOM simulation mode.
• Geometry Correction
  • Four Corners, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation.
  • Non Linear Warp.
  • Blanking control for custom input window sizing.
  • Digital zoom, pan and scan.
  • Scaling available for fixed aspect ratio screens and independent input aspect ratios.
• Edge Blending
  • For independent edge and blend width adjustment.
  • Correction for non-active pixels at the edge of the display.
  • Electronic black level compensation.
• Picture in Picture
  • Two sources can be displayed either one within the other (PIP), or side by side, with original aspect ratios maintained.
• HDBaseT® Interface
  • Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
  • Allows the projector to be placed up to 100m from the source with low cost cabling.
• Colour Processing
  • Powerful seven point colour correction for accurate colour matching.
  • Selectable default colour gamut
• Projector Control
  • Intuitive user interface for network control
• PC Projector Controller Application for:
  • Simultaneous control of user-defined groups of projectors
  • At-a-glance monitoring of projector status
  • Served web pages for browser monitoring and control access from PC's and Smart phones
• Projector Automation
  • Real-time clock provides daily on/off automation.
• Projector Maintenance Features
  • Sealed optics.
  • Long life 20,000 hour illumination.
• Source Compatibility:
  • 3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.
  • HDMI including Deep Color™ processing.
  • Graphics standards up to 1920 x 1200 resolution at 60Hz via HDMI, DisplayPort or VGA.
  • Component Video (SD and HD) via RGBHV.
